total length - 3"
Center hole length - 2"
Right-center hole to end - 11/16"
thickness - 5/16"
width - 1 1/8"
RH Surface Mount Tilt latch
Quick Learner from Brentwood, TN
Apr 24, 2013 1:53 am

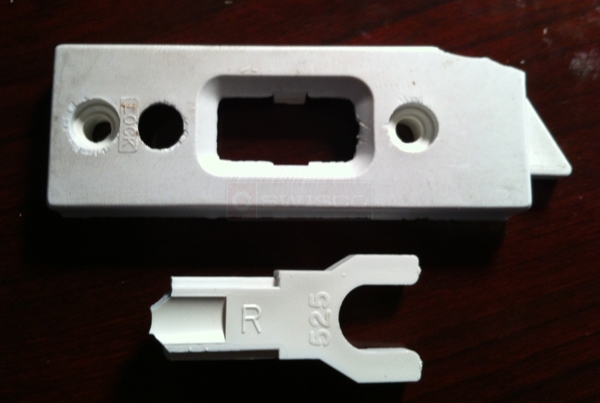

Marking on the under the lock slide is 525
total length - 3"
Center hole length - 2"
Right-center hole to end - 11/16"
thickness - 5/16"
width - 1 1/8"
total length - 3"
Center hole length - 2"
Right-center hole to end - 11/16"
thickness - 5/16"
width - 1 1/8"
2 Replies
Tom from SWISCO
Apr 24, 2013 2:05 pm
Good afternoon, and thank you for contacting us. Check out our 26-337, top tilt latch pair. Compare the measurements to see if these can work as replacements.
