RH awning operator 39-278

A quick learner from Robbinsville NJ says:
August 16, 2018

We need to replace 7 of the Awning operators. We think the awning operator is the same as your Nu-aire RH awning operator 39-278 (based on the patent numbers found on the old operator (see attachment photos).

Question:

1. Do you have the dimensions of the 39-278 so that I can compare?

2. The end of the of link bar that attaches to the awing windows does not have a drilled hole. Refer to the photos attached. It has what looks like a threaded piece and metal bushing. What parts do we need to order to attach the 39-278 to our awning windows?

Thanks, Kathy

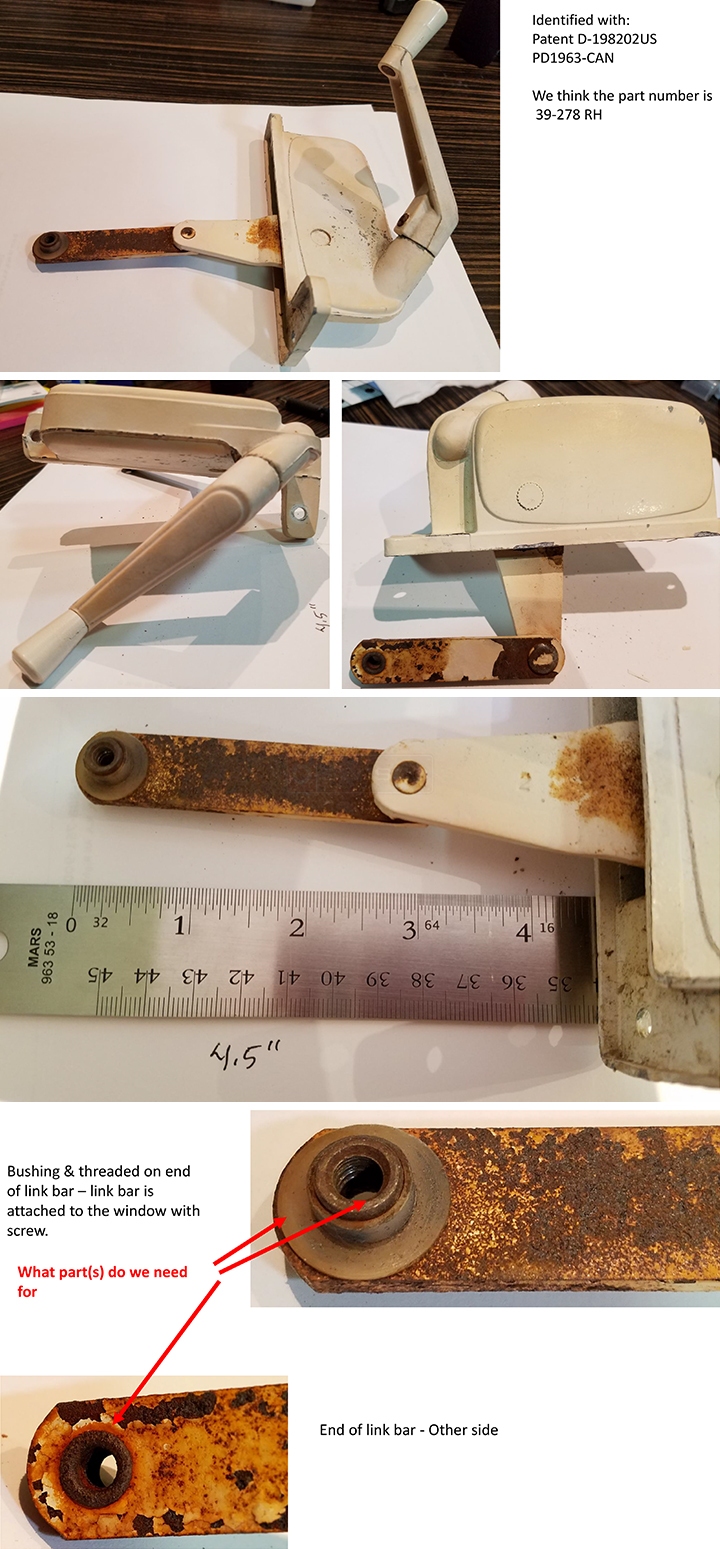

User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
August 21, 2018

I'm reminded of our 39-025 right off the bat, but the mounting holes are different from the 39-278 you initially pointed out. I would go over the dimensions we show for the 39-025 to see if it would be a better match.
A quick learner from Robbinsville NJ says:
August 21, 2018
The 39-025 pivot arm is 2.25" center to center. Our part pivot arm is 2.5" center to center so it is not exactly the same and I am not sure it will work. I have attached dimensions of the mounting holes for our part that may be of more help in identifying the replacement part.
Profile picture of Tom
Tom from SWISCO responded:
August 22, 2018

The size of the link arm doesn't have to be exact. They're designed to have some play, so you can get away with a difference like that. I'm more concerned about the mounting hole spacing. There is no such play with those measurements. I would double check yours to see if maybe you could still get ours to work.
