RH awning operator : SWISCO.com

Handy Person

Sep 26, 2024 4:16 pm

I'm looking for a RH window crank.
5-1/4" top to bottom hole.
2 bottom holes 1-1/4 inch apart and
a link arm with holes at 2-3/4 apart.

2 user uploaded images

4 Replies

Dave Sr. from SWISCO

Oct 1, 2024 9:05 am

Hello,

I'm not sure if we carry an exact match for your operator based on your photos. To be sure, we would need to see your operator fully removed from the window. This is important since there are details of the link arm that we can't make out with it installed such as the diameter of the hole in the arm that connects to the window linkage. Thank you.

Handy Person from Sea Isle City, NJ

Oct 22, 2024 3:50 pm

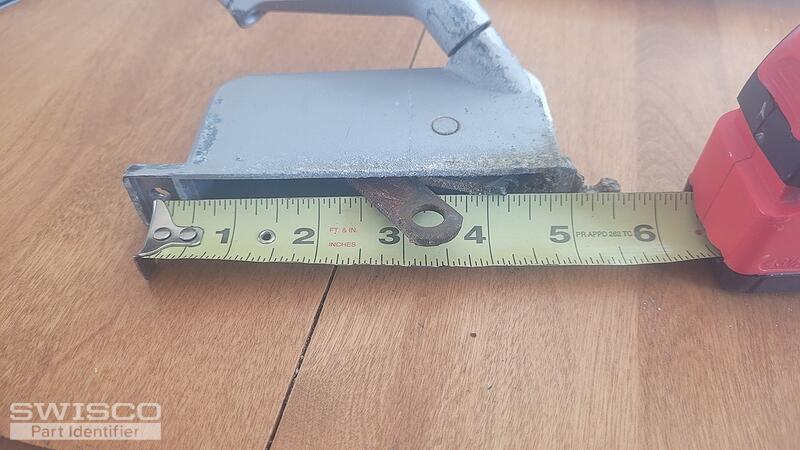

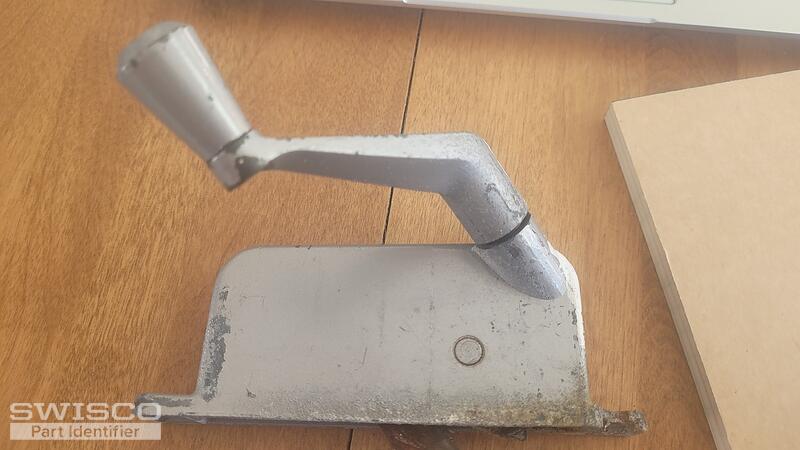

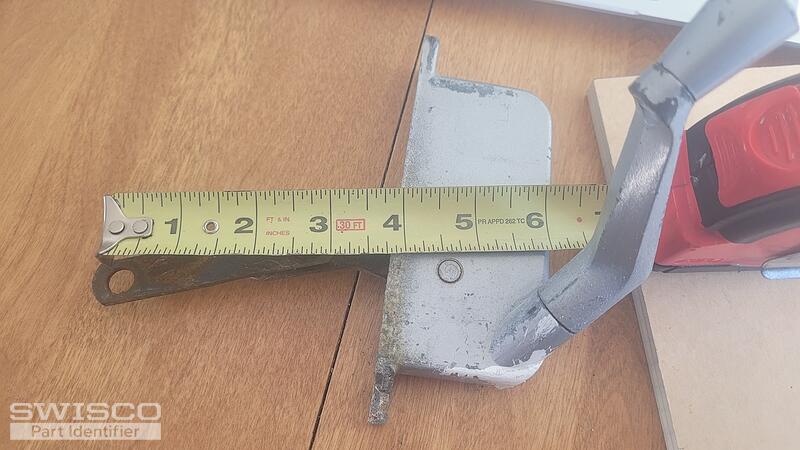

Hole diameter is 3/8". See additional photos.

4 user uploaded images

Casey from SWISCO

Oct 22, 2024 4:18 pm

Thanks for getting back to us. The 39-012 comes to mind but the bottom mounting holes measure 1-1/8" apart as shown below. Take a look and see if this might be the replacement part you need.

Alternate view of 39-012

Dimensions for 39-012
