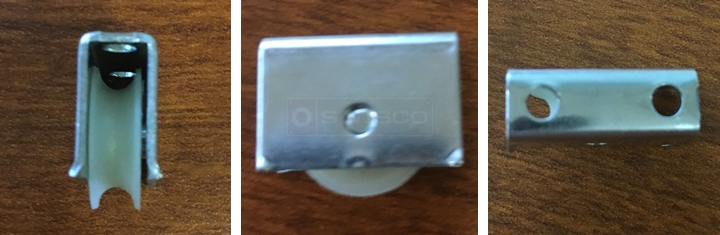

Approx outside dimensions .285"W x .519"H x .758"L; inside width .203"W
The wheel is .515"OD with concave groove x .186"W.
there are (2) .120" holes in the top approx .500" apart. these holes are not used for anything in our application.
ROLLER SLIDE
Quick Learner from Exton, pa
Oct 3, 2017 2:15 pm
We are an OEM machine manufacturer and were using a part purchased from American Mold. Their part number as listed in our records was 2040. We were informed the no longer make the part.
Approx outside dimensions .285"W x .519"H x .758"L; inside width .203"W
The wheel is .515"OD with concave groove x .186"W.
there are (2) .120" holes in the top approx .500" apart. these holes are not used for anything in our application.
Approx outside dimensions .285"W x .519"H x .758"L; inside width .203"W
The wheel is .515"OD with concave groove x .186"W.
there are (2) .120" holes in the top approx .500" apart. these holes are not used for anything in our application.
2 Replies
Dave Sr. from SWISCO
Oct 9, 2017 2:52 pm
Hey there! Please take a look at our 10-118 roller. Check to see if the measurements are close to yours. This type of roller has a ball bearing wheel and is used on heavier showcase glass doors.
