RP 2002 screen corners

Home Owner from USA

Jul 29, 2015 9:22 am

I have a broken sliding half screen that fits in tracks of my double hung vertical sliding window. I have found the stamp on the aluminum spacer between the glass that reads

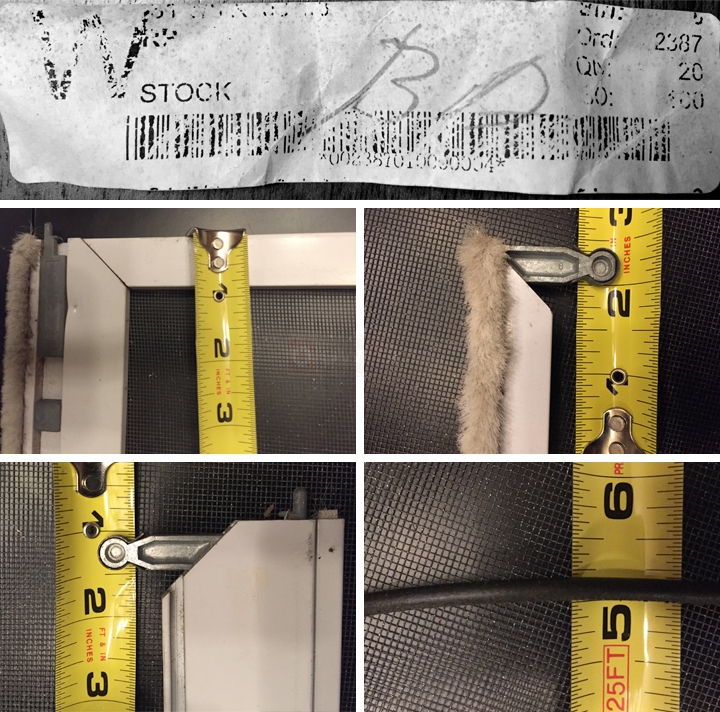

User submitted photos of window hardware.

4 Replies

Home Owner from USA

Jul 29, 2015 1:47 pm

After looking at your corners I tried to take the measuremets that seemed key-

3/16 thick
1 3/8 corner to tip
3/8 wide

Paul from SWISCO

Jul 30, 2015 12:49 pm

The corner key looks like our 95-129. You could try to pull out the broken one, but most times you just knock in the broken piece further into the frame to make room for the new corner. Our 59-150 spline should work fine with this fiberglass wire.

Quick Learner from Washingtonville, NY

Jul 30, 2015 2:10 pm

Thank you soooo much!!! You guys are awesome!
