Re: Do You Have This Side Mount Pivot Bar

A professional from Memphis, TN says:
August 9, 2021
Good afternoon,

Do you have this side mount Pivot Mount Bar in stock. The photos are attached.
Thumbnail of the uploaded file named 20210809_151938.jpg
Thumbnail of the uploaded file named 20210809_150816.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 16, 2021

Thanks for your patience during this busy season. I'm sorry to say that we don't have an exact match for this pivot bar. Before we go any further, can you show me a picture of the pivot shoe it interacts with? Can I also see a clearer version of that second photo? That angle will be a huge help but the current photo is a little too blurry to make out. Thank you!
A professional from Memphis, TN says:
August 17, 2021
The clearer pictures are attached. Thanks so much.
Thumbnail of the uploaded file named 20210817_085331.jpg

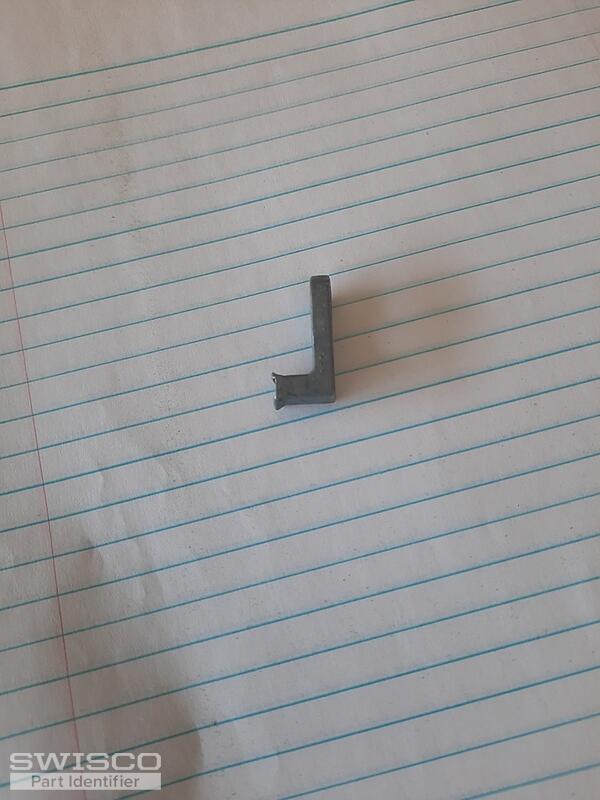

Thumbnail of the uploaded file named 20210817_085318.jpg

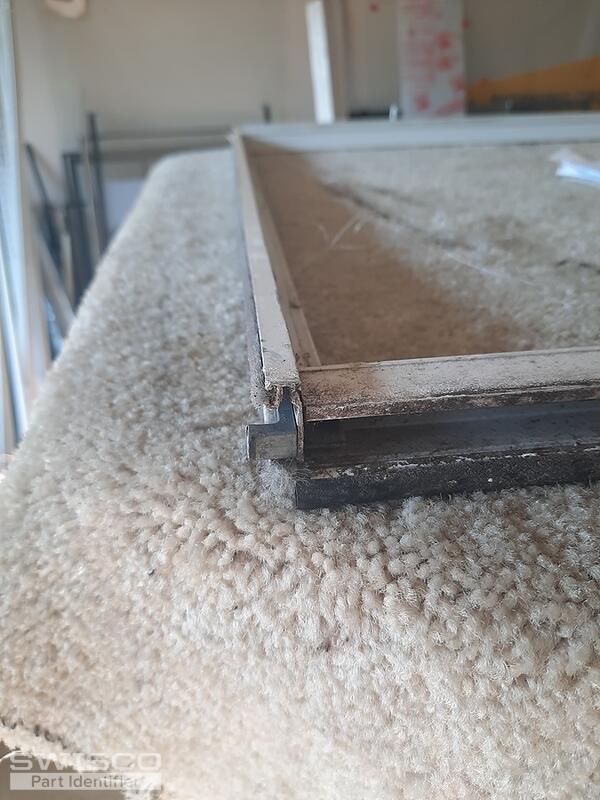

Thumbnail of the uploaded file named 20210817_085303.jpg

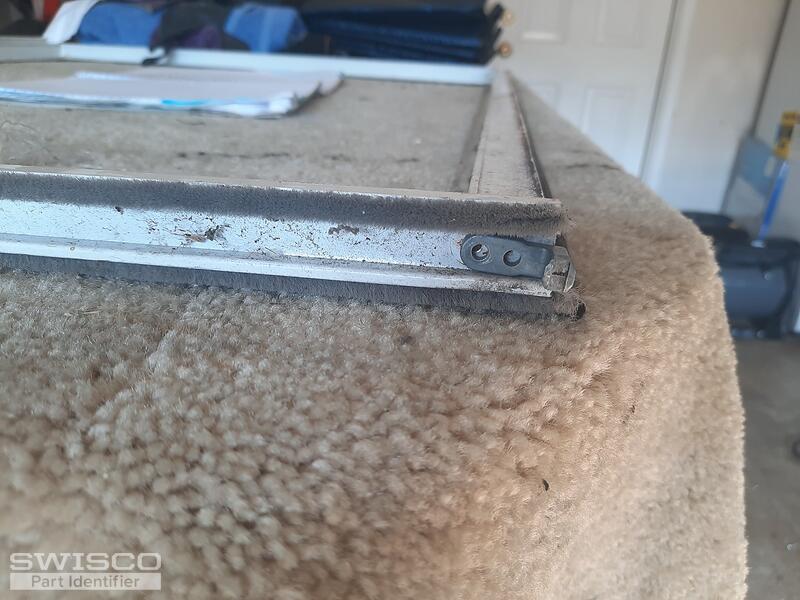

Thumbnail of the uploaded file named 20210817_085249.jpg
Profile picture of Paul
Paul from SWISCO responded:
August 17, 2021

When I first saw your photos, the first parts to come to mind was our 17-034 and 17-035 cam pivots. The dimensions of the pivot tip didn't match, though, and I've been unable to find anything that does. Do you think our 26-402 might work? I can't say for sure but it is my best guess.
Side Mount Pivot Bar
Side Mount Pivot Bar
26-402
$1.38
LH Cam Pivot, 7/16"
LH Cam Pivot, 7/16"
17-034
$4.97
RH Cam Pivot, 7/16"
RH Cam Pivot, 7/16"
17-035
$4.97
