Re: Your SWISCO.com Order #1136897 Has Shipped

A home owner from USA says:
November 13, 2018
Your link must be down.
The dimension on the web are the same as my parts.
The looks and shape of the parts are the same.
I find only a '5' marked on my parts.

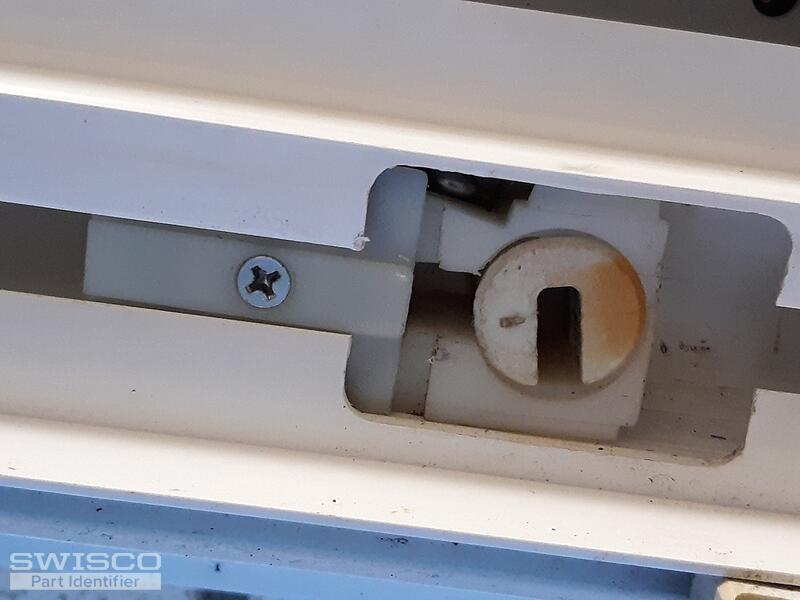

The window shaft is a double D shape that would fit but I have a molded snap like ring about 3/8 inch from the outside end of the shaft.
Your cam lock is metal and mine is plastic.
I have not tried to fit you 15-192 in place of mine but all looks good.
Because of 4 above my units have a cross shape in the cam when looking down into the slot.
Profile picture of Paul
Paul from SWISCO responded:
November 15, 2018

We believe you can use the 15-192 pivot shoe. However, there is a chance you may have to file down the top and bottom ring of your current pivot bar to fit into the metal center cam. The 15-192 comes with face aligners that you also may need to file down if it interferes in fitting in the window track.
Pivot Bar, Simonton
Pivot Bar, Simonton
26-336
$2.70
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
