Hello!
Thanks for your help. My door will only accommodate a quarter inch mortise (I think that's what it's called?) but the only replacement parts I can find are for 5/8th. Do you have anything that might work for me? Thanks again!
Narrow Mortise Hole and Replacement Handle
Quick Learner from Ypsilanti MI
Apr 26, 2023 2:48 pm

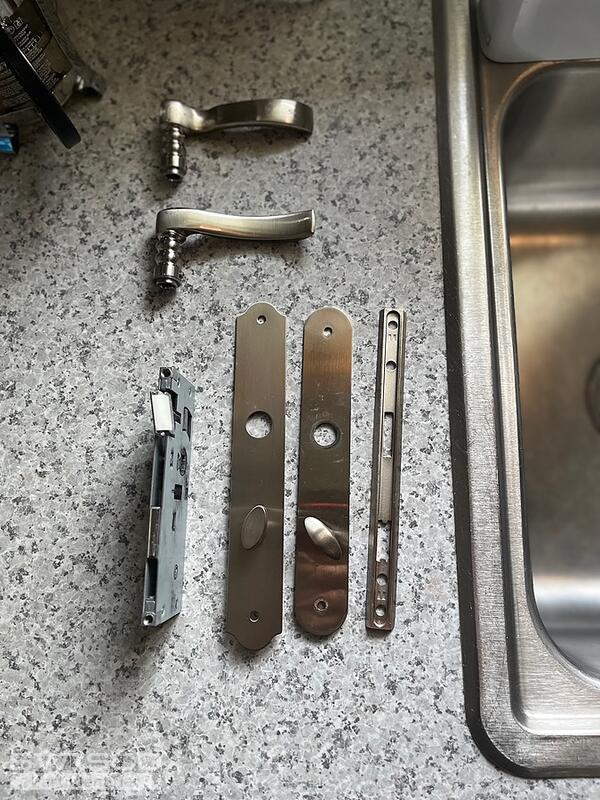

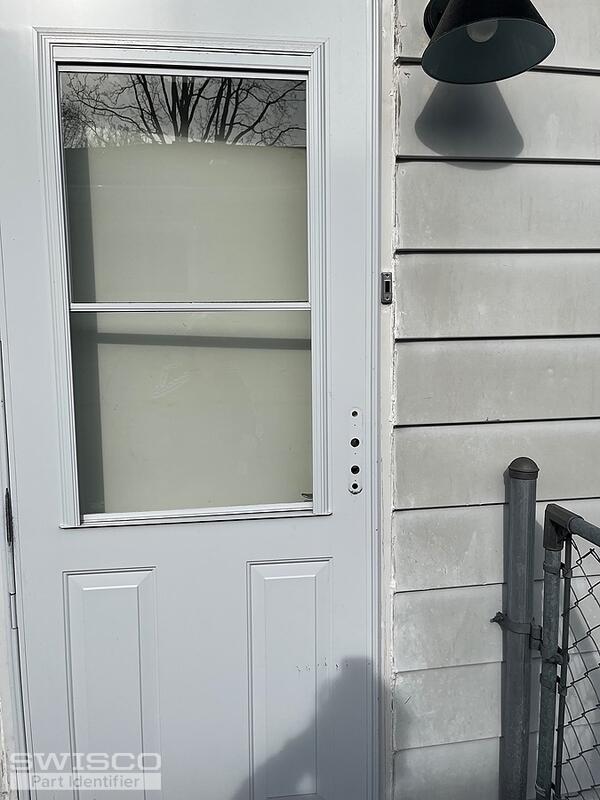

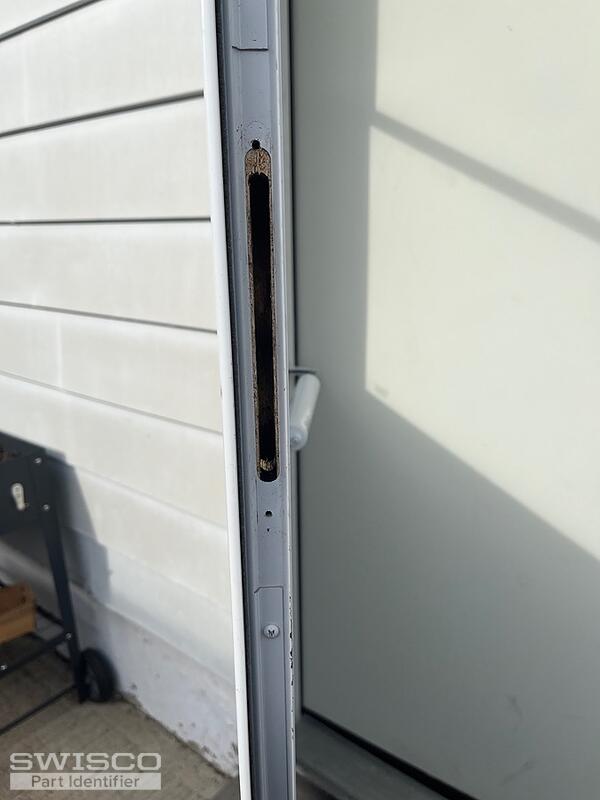

3 user uploaded images
4 Replies
Casey from SWISCO
Apr 27, 2023 1:18 pm
Hello,
We'd be happy to look into this for you but we would like to see a photo showing the side of your mortise lock. It would also help to have more written-out dimensions to compare to our inventory, including the installation hole spacing of your mortise lock and handle set. Thank you!
Quick Learner from Ypsilanti MI
May 8, 2023 12:29 pm
Thanks so much! I've attached some additional pictures but please let me know if anything else would be helpful.

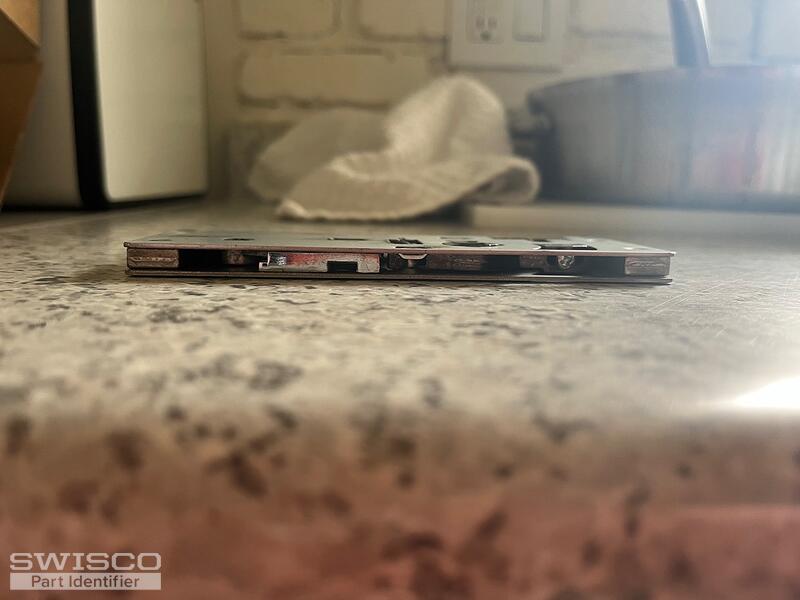

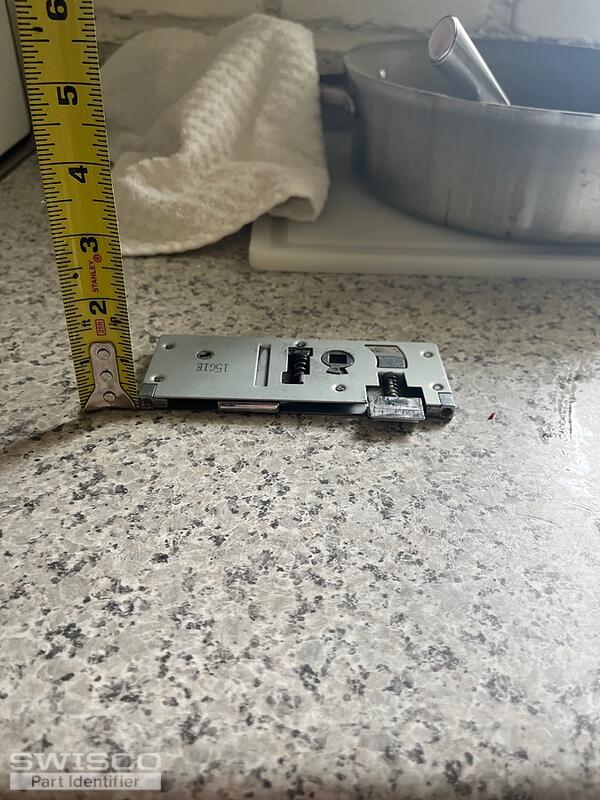

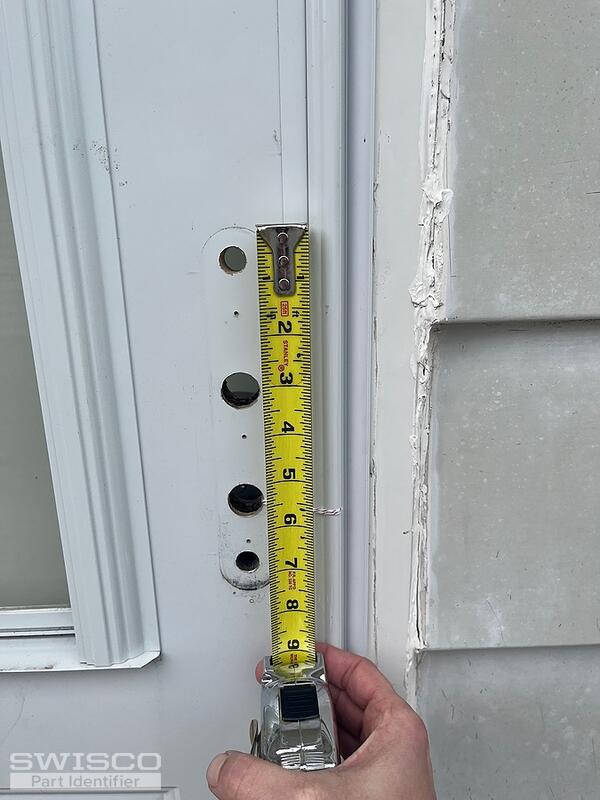

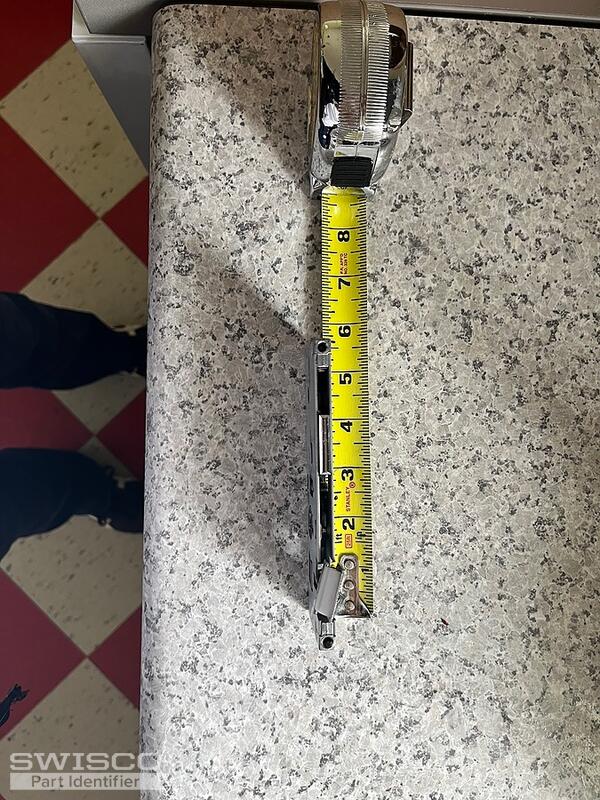

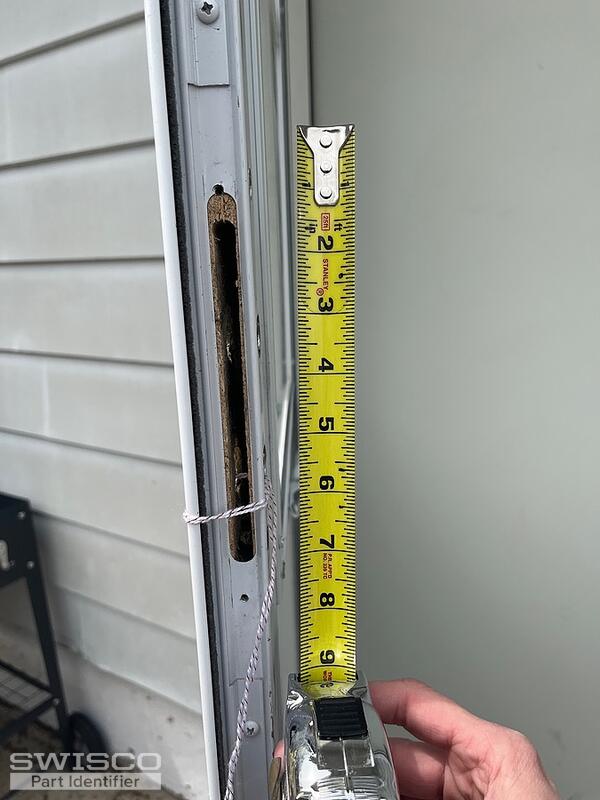

5 user uploaded images
Dave Sr. from SWISCO
May 9, 2023 1:30 pm
I believe that our closest match would be the 40-211 mortise lever set but I'm not sure it would fit your storm door. The thickness of the 40-211 mortise lock is a little over 3/8" thick, whereas your mortise latch thickness is 1/4". The heights and lock locations appear to be similar but the side face plate on the mortise latch is 1" longer than yours. I'm sorry that we can't provide a closer match at this time but we will include the dimensions from our product page below for you to review.
Alternate image for 40-211
View of 40-211 Mortise lock
Alternate view of 40-211
