Rear Brackets for Pots and Pans Drawer

Handy Person from MISSOURI

May 12, 2020 10:47 am

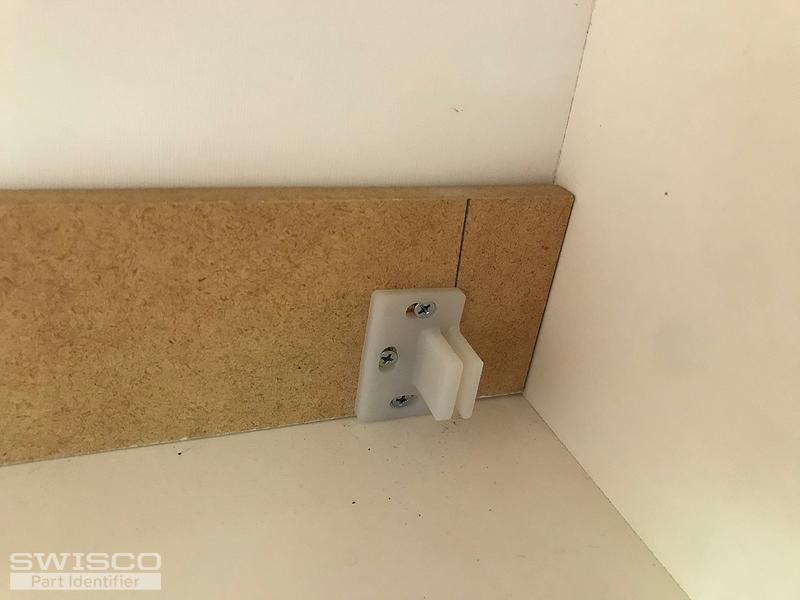

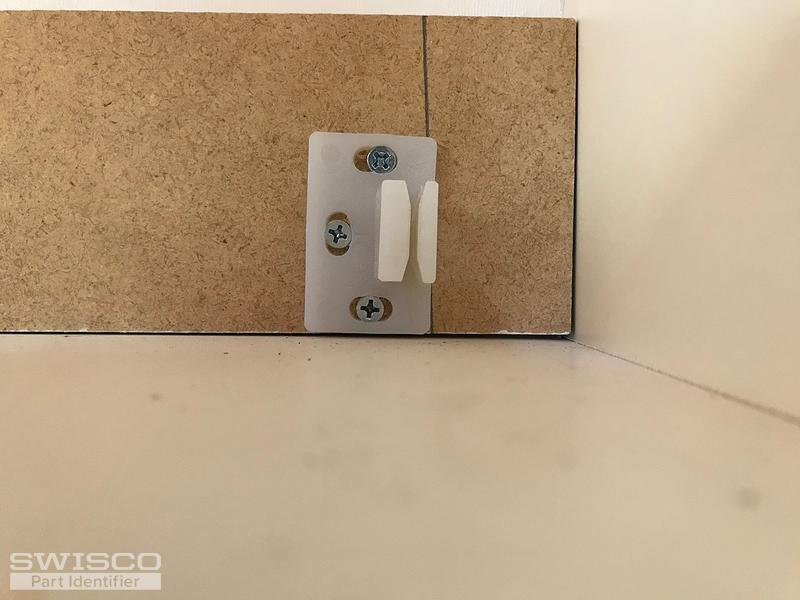

The rear brackets for our pots and pans drawer are broken. See attached photos. Note that these brackets have a stub which fits inside the rail. The inside dimension that the stub will have to fit into is 13/16".

If there is no replacement part available, can you recommend full rail and bracket system replacement?

There is a very dim, painted over, stamp on the rail; I believe part of it is says 6600, or maybe 6300.

Thanks,

Tim

3 user uploaded images

6 Replies

Tom from SWISCO

May 14, 2020 12:15 pm

I'm afraid that I don't recognize this rear bracket. Would it be possible to see an undamaged version removed from the drawer? I'd like to see it unobstructed.

Handy Person from MISSOURI

May 17, 2020 2:46 pm

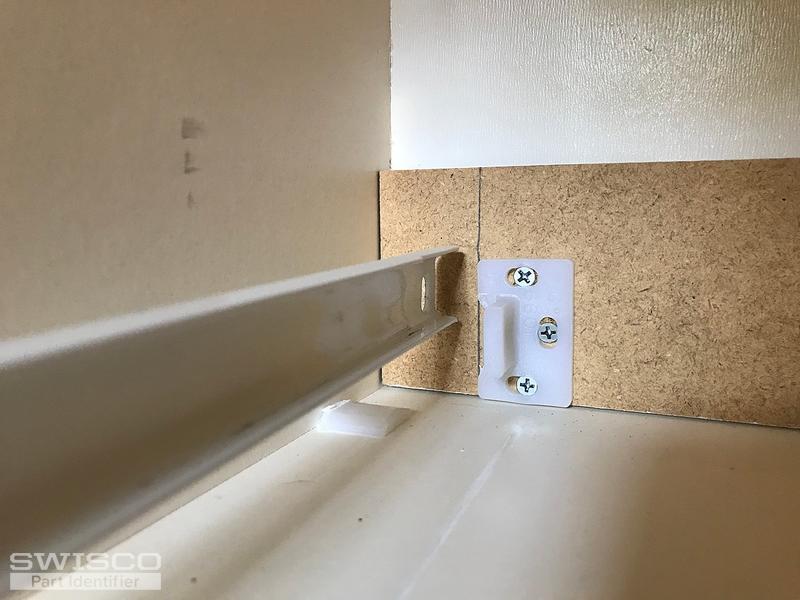

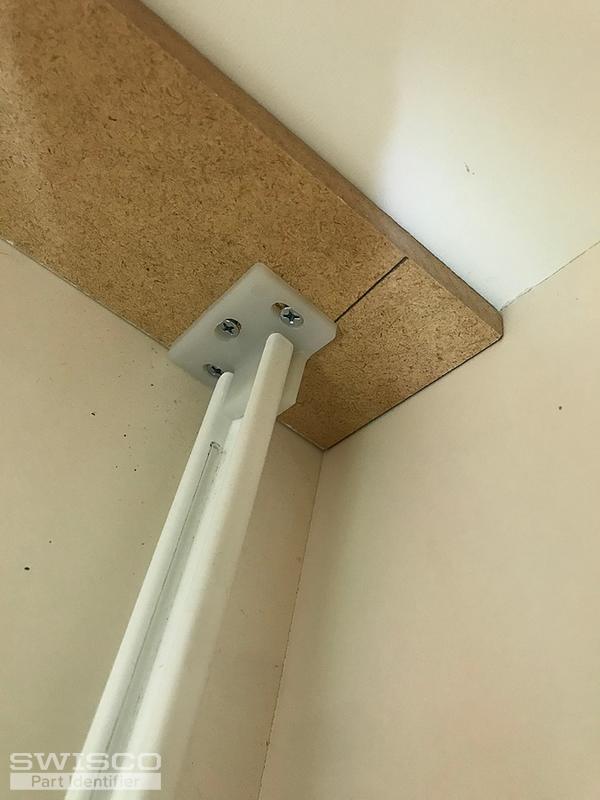

OK, here are a few more pics. I think this will give you a good idea: the rail fits over the stub. The thinner backing piece helps hold it in place,but as you can see from IMG_5674, it tends to break (it has on at least three of these brackets). The height of the stub on the bracket is 13/16". If you do not have a bracket that would replace this, can you recommend a new rail system similar to this? The drawer that fits in here is 21-5/16" from front outer face to rear outer face, so the rail that attaches to the drawer is something like 22-1/2", I believe.

Thanks,

Tim

4 user uploaded images

Tom from SWISCO

May 18, 2020 7:46 am

Thank you, this is a huge help. We only have one bracket that works similarly, which is our 32-131. Look this part over and see if you can get this to work in place of your original.

Handy Person from MISSOURI

Jun 17, 2020 2:51 pm

Unfortunately, the 32-131 does not work. The geometry is more or less ok, except for the stub that holds the rail in place. The part I ordered has a 1" stub. Unfortunately, I need one that fits inside a 13/16" rail, so 13/16" would be the max size of the stub (and that is the height of the stub in teh pictures I originally sent). (This dimension is not marked on the drawing of the 32-131 that is on your site, by the way.) Would you have anything that has a 13/16" stub?
If not, can you recommend a different set of rails and mounts that would be suitable for this drawer?

Tom from SWISCO

Jun 19, 2020 2:50 pm

Unfortunately, I wasn't able to find anything that matches those specifications. If you did want to consider a new rail system entirely, though, then we have options. Consider our 32-061 track kit, which is 21-5/8" long, as well as a new 32-018 bracket.
