Rear Drawer Guide

Quick Learner from San Diego
Hello,

I need to replace this part (shown in picture(s)). Please forgive the lack of actual measurements, but my eyesight is not great, nor is my ability to read a tape measure closely enough.

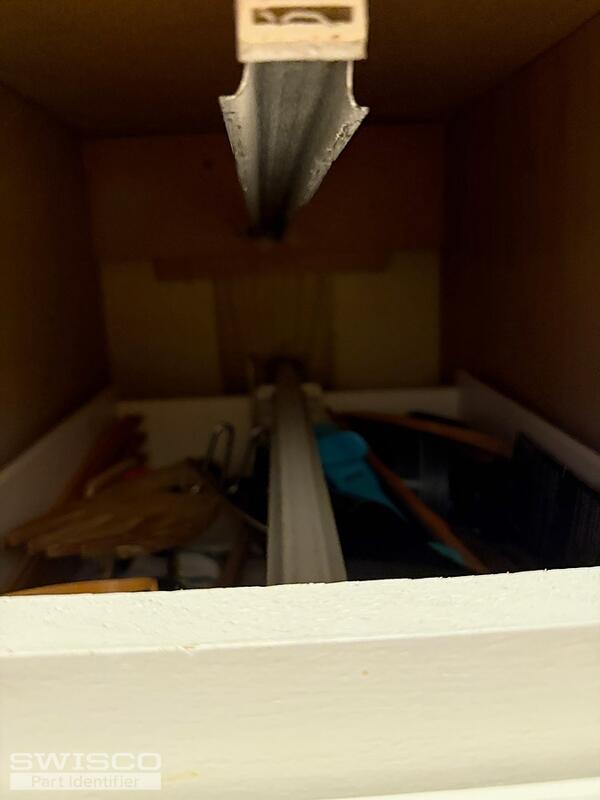

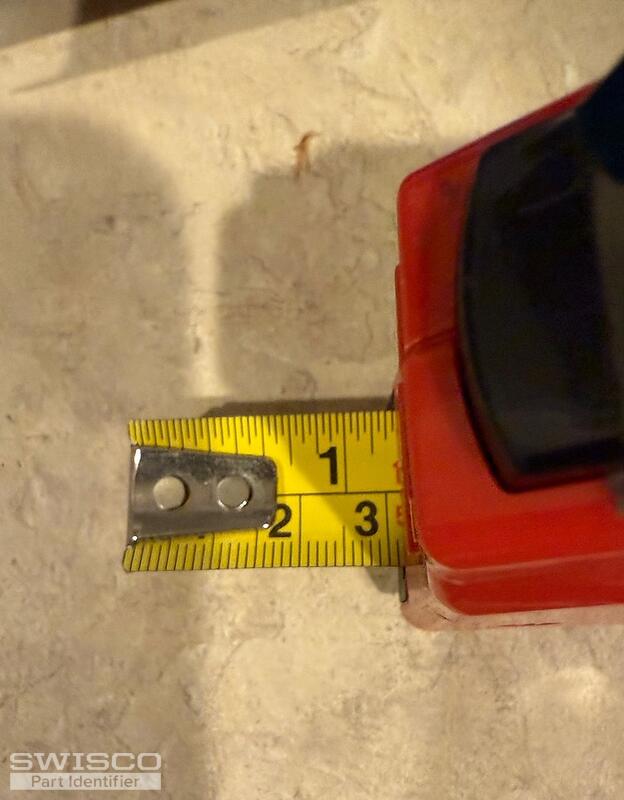

The part in question is on the inside the back of the drawer. I have a picture of the actual slide and Dems. I think the slide's width is almost 1.5". Your system only allows five images; if you need more, ask.

The overall width (Left to Right) is 2.5". I do not want to remove the broken part as it's stapled into place. When I bought the house, these were already in place, and I cannot find any paperwork on MFG.

I'm hoping against hope you can help me, lol.
5 user uploaded images
6 Replies
Quick Learner from San Diego

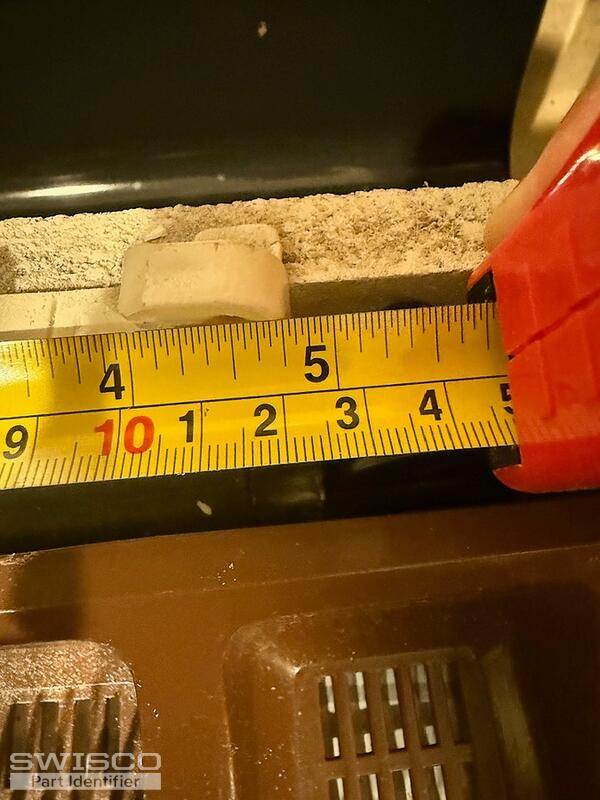

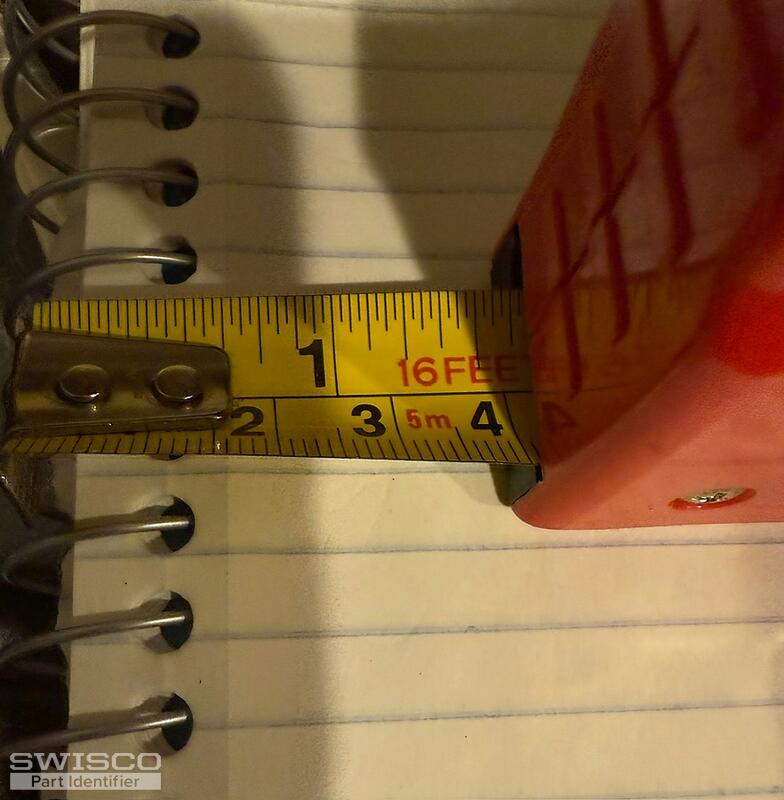

I named the image (Where applicable) to indicate its measurement.
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your drawer guide is similar to the 32-088 shown below. Take a look at the dimensions, paying close attention to the height and width of the track opening, to confirm if it matches your original part. Thank you!

Detail of 32-088
Detail of 32-088

Profile view of 32-088
Profile view of 32-088

Quick Learner from San Diego
It worked great. To fix future drawers, I have ordered six more, lol.
Quick Learner from San Diego
Thank you again for all your help with this task.
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

That's great! Thanks for letting us know how everything worked out and let us know if you need anything else.
