Rear Drawer Guide Socket
Quick Learner from CT
Mar 1, 2017 5:25 pm

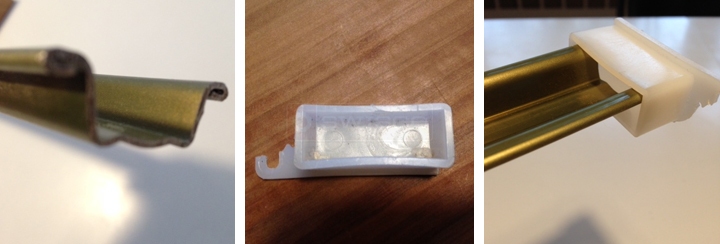

Hello. Can you please help me find a replacement rear drawer guide socket?
The internal dimensions of the existing socket are 1 3/8" x 7/8".
The guide width at the widest part is 1 1/2". the narrower part is 11/16".
Thank you.
The internal dimensions of the existing socket are 1 3/8" x 7/8".
The guide width at the widest part is 1 1/2". the narrower part is 11/16".
Thank you.
2 Replies
Casey from SWISCO
Mar 8, 2017 9:50 am
I would start by looking at our 32-009. This looks similar, but first measure the track to confirm it can fit into the opening.
