Rear drawer slider socket.
Quick Learner from Newark De
Oct 23, 2017 1:36 pm

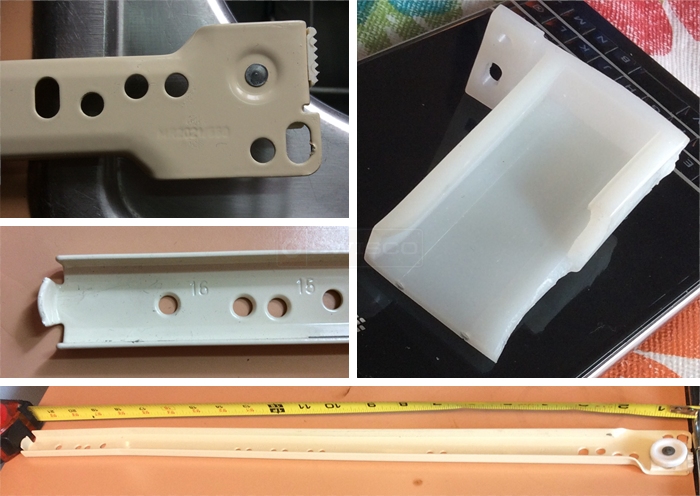

Seems like all our almost-30-year old rear drawer slider sockets have decided to start crumbling this year.
The sliders are all fine, I just need several pairs of those sockets, and googling is pretty confusing.
No one has them in stock and they all appear the same but I won
The sliders are all fine, I just need several pairs of those sockets, and googling is pretty confusing.
No one has them in stock and they all appear the same but I won
6 Replies
Tom from SWISCO
Oct 27, 2017 10:35 am
Thanks for posting. We may be able to help, but before I recommend anything I'd like to know the size of the socket opening that accepts the track. If you're not sure, then measure the width of the track instead and give me that. In the meantime, you can see our entire selection of sockets here.
Basically, the most important measurement is the opening that accepts the track. Everything else is secondary. If the socket can't hold the track, then it's no good. As long as you can find something that has that same measurement, then you can get away with a lot of other minor differences.
Basically, the most important measurement is the opening that accepts the track. Everything else is secondary. If the socket can't hold the track, then it's no good. As long as you can find something that has that same measurement, then you can get away with a lot of other minor differences.
Quick Learner from Newark, Delaware
Nov 6, 2017 2:39 pm
Looks like it
Tom from SWISCO
Nov 9, 2017 11:13 am
I'm sorry, your post was cut off. I'm not sure what your follow up question was. I also can't make out the size of the socket opening based on your picture.
Quick Learner from Newark DE
Nov 9, 2017 11:53 am

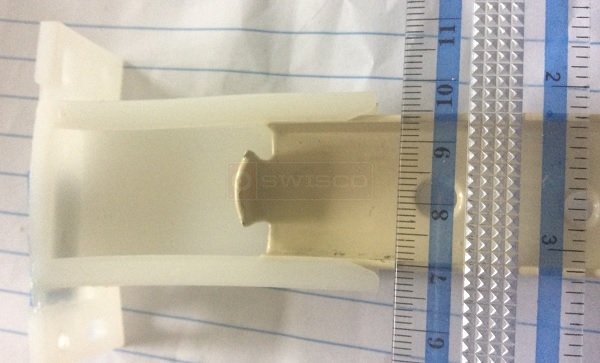

The opening appears to be approx 14-15 mm. It fits snugly. I'm guessing any of your offerings in the "rear drawer socket" category that look similar should work. Provided they are wide enough.
I have half a mind to order pairs of each kind! I also realized that the sliders themselves have holes which I could used to screw in wooden blocks wedged behind to provide additional support and take the strain off the sockets themselves!
I have half a mind to order pairs of each kind! I also realized that the sliders themselves have holes which I could used to screw in wooden blocks wedged behind to provide additional support and take the strain off the sockets themselves!
Tom from SWISCO
Nov 13, 2017 9:48 am
Can you confirm the size of the opening? 15 milometers is approximately 19/32", which is very small for a socket opening. You can see detailed dimensions for each pair of sockets we carry on our site to use as a reference. Otherwise, I agree: there's a good chance one of ours may work, assuming you find one with the right opening size.
