Rear drawer socket

Home Owner from Ohio

Apr 27, 2023 3:21 pm

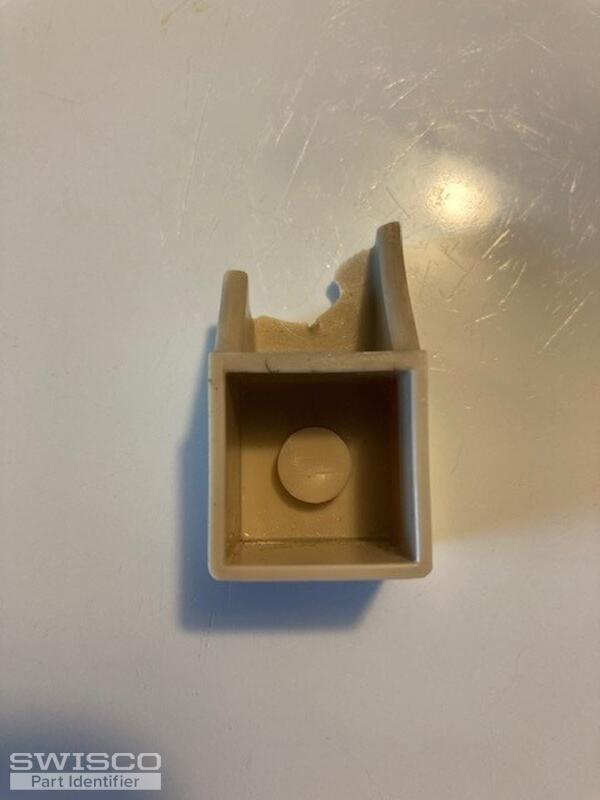

Can you please help me identify this part? It's a rear socket. The drawer travels down a center rail. I don't see any identifying information on the part. Thx!

1 user uploaded image

6 Replies

Tom from SWISCO

Apr 27, 2023 3:34 pm

I'm afraid that I don't recognize this drawer bracket. Would it be possible to see an undamaged version? That might help me find something that can replace it. Can you also tell me the size of the opening that takes the track?

Home Owner from Ohio

Apr 27, 2023 9:41 pm

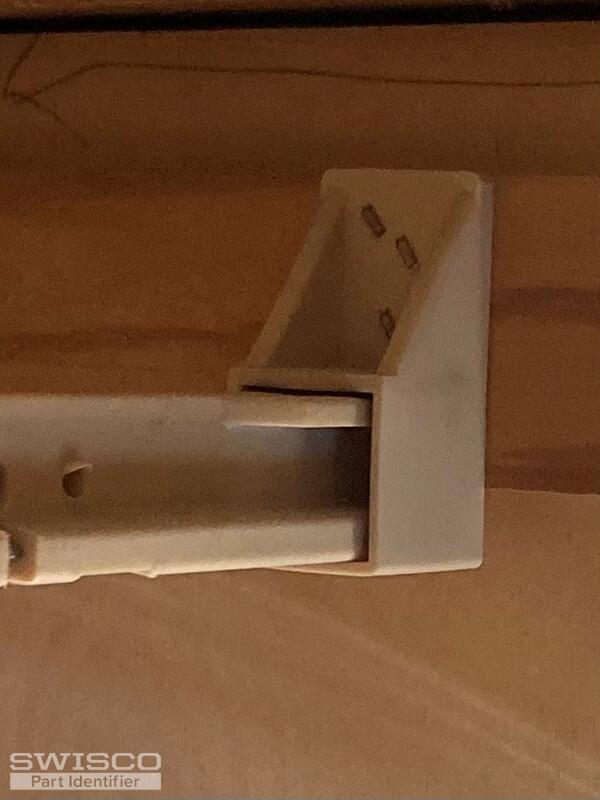

Thx for the quick reply. Attached is an image of an undamaged version, currently in use. The square opening is about 3/4". The entire piece is about 2" long. Any suggestions?

1 user uploaded image

Tom from SWISCO

Apr 28, 2023 10:51 am

Thank you! I admit, I was expecting there to be more to this part, but that really does seem to be it.

I would say that the best match we sell at this time is our 32-001. it is very similar in design but its opening is 7/8" x 7/8", which is a little bigger. Do you think it could still work?

Home Owner from Ohio

Apr 28, 2023 11:05 am

Yes, I think that will probably work. Thx for your help!

Tom from SWISCO

Apr 28, 2023 12:02 pm

You're welcome! Please let me know if we can be of any further assistance.
