Reliabilt 444500 Series 332 6'x6' 8" sliding door roller asmbly

Question

Reliabilt 444500 Series 332 6'x6' 8" sliding door roller assembly

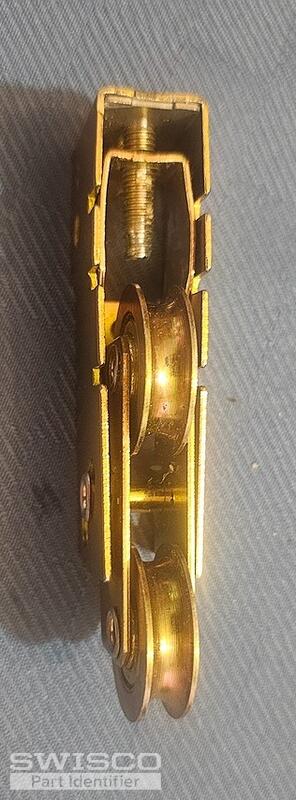

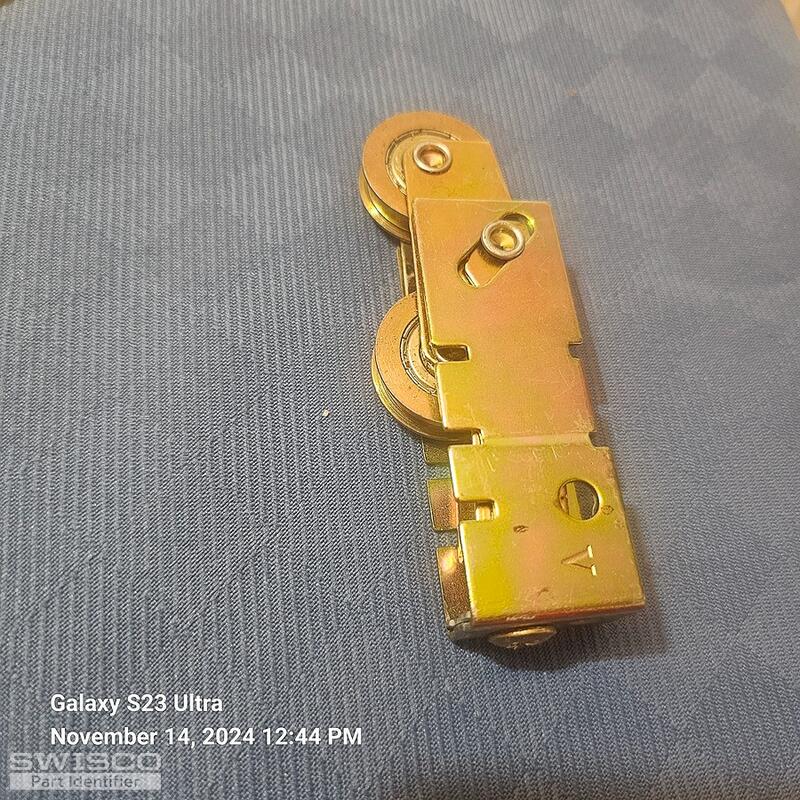

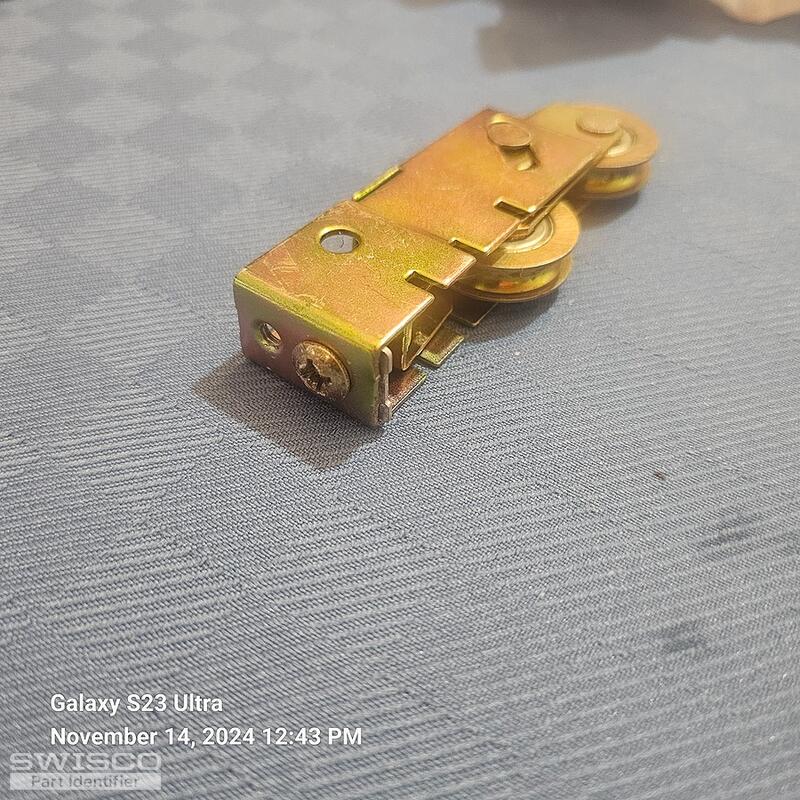

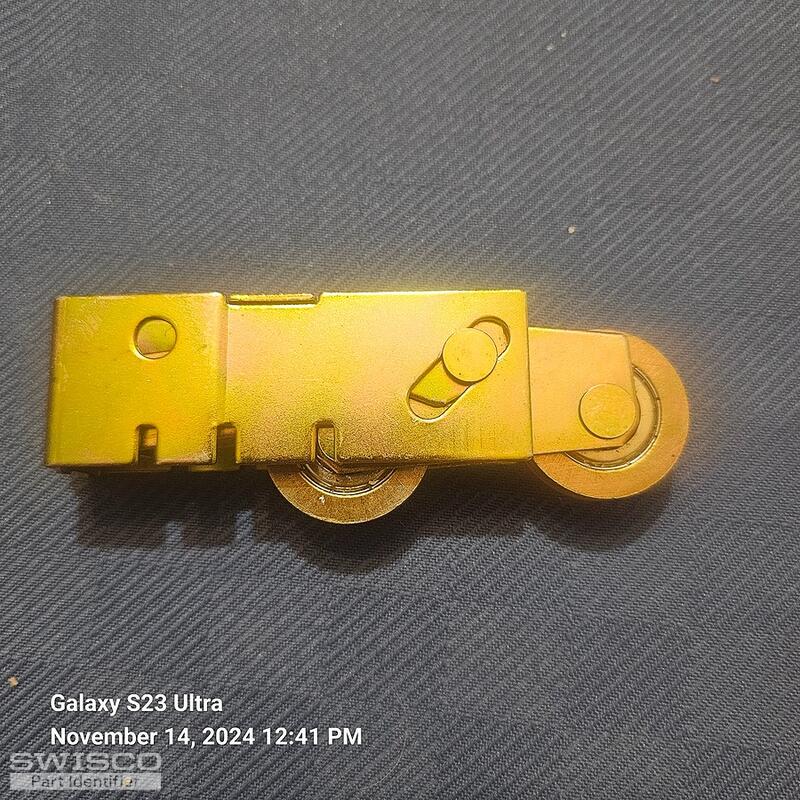

Door missing adjustment nut on roller assembly (shown in pictures). I need the entire roller assembly since threads are stripped on adjustment screw.

Assembly has a "V" on one side of housing.
Rollers: 1 1/8"
Housing: 3 1/8" x 1 1/8" x 3/4"
Roller groove: 1/8"

Bob · Accepted Answer

Hello there. The 81-138 Roller has wheels that are 1-1/8" in diameter, but the housing is only 1" high. See the 81-030 instead--this has the 1-1/8" high housing. The wheels are 1-1/4" diameter, but you should be able to adjust the roller to make up the 1/8" difference. Take a look and see what you thin.

Alternate image for 81-030
