Rengency double hung window. Window balance assembly

A home owner from Maple Heights Ohio says:
June 6, 2019
Both my coils on each assembly broke, I would like to replace both window assemblys, thank you.
Thumbnail of the uploaded file named 20190606_193826.jpg
Thumbnail of the uploaded file named 20190606_193744.jpg
Thumbnail of the uploaded file named 20190606_194151.jpg

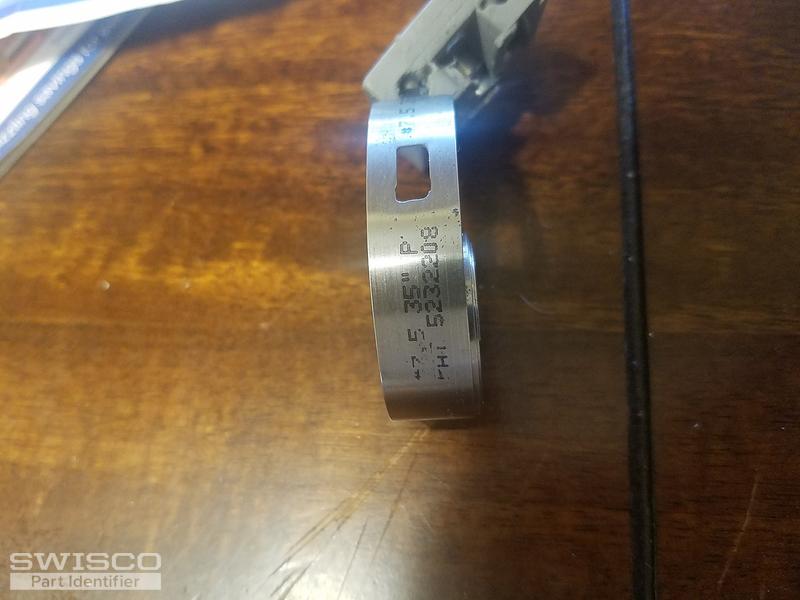

Thumbnail of the uploaded file named 20190606_194216.jpg
Profile picture of Bob
Bob from SWISCO responded:
June 7, 2019

Thanks for posting. Your pivot shoe looks like our 15-191. This is compatible with our Series 160 Coil Springs. These are 1/2" wide, so confirm that your springs have the same width. Judging from your stamp number, you would need the S160-7, which is for 7.5 lbs of weight support per coil. Let us know if you have any other questions.
Heavy Duty Pivot Shoe, 1/2" Thick
Heavy Duty Pivot Shoe, 1/2" Thick
15-191
$2.57
7.5 lbs Series 160 Coil Balance
7.5 lbs Series 160 Coil Balance
S160-07
$5.04
Bumper
Bumper
15-148
$0.58
1/2" Coil Single Support
1/2" Coil Single Support
15-150S
$1.10
