Repairing Lock and latch : SWISCO.com

Home Owner from Minnesota

Sep 10, 2026 9:40 pm

Hello I have a broken latch on windows in my home . I was able to pull AX7164 off a window screen to identify. Just looking to make sure I order correct parts. i am able to include photos as well.

6 Replies

Bob from SWISCO

Sep 13, 2026 2:43 pm

Hello there. Could you send photos of the hardware in question? That would be the best way of narrowing this down.

Home Owner from Minnesota

Sep 15, 2026 9:42 am

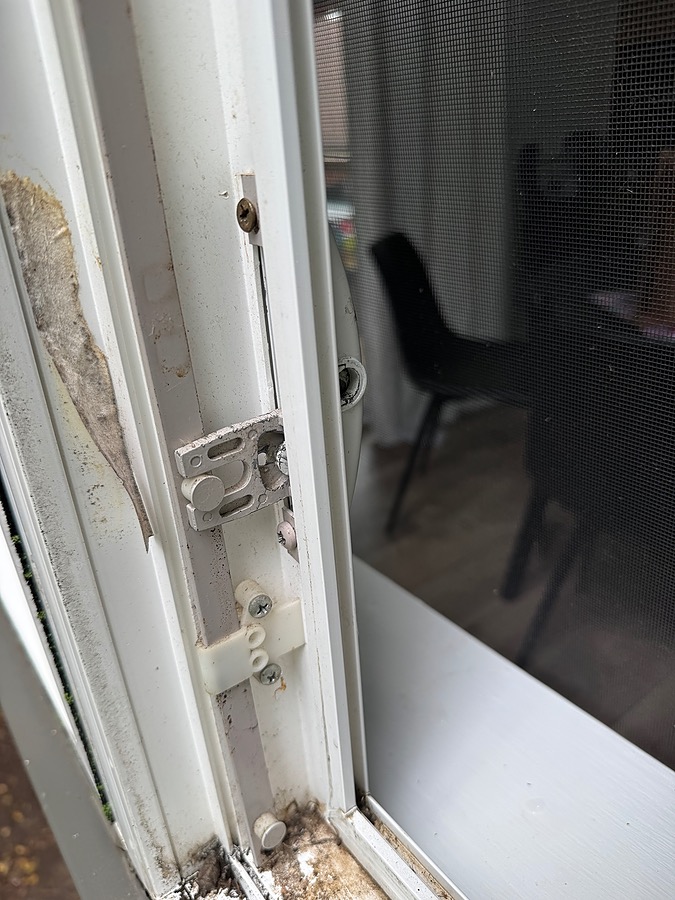

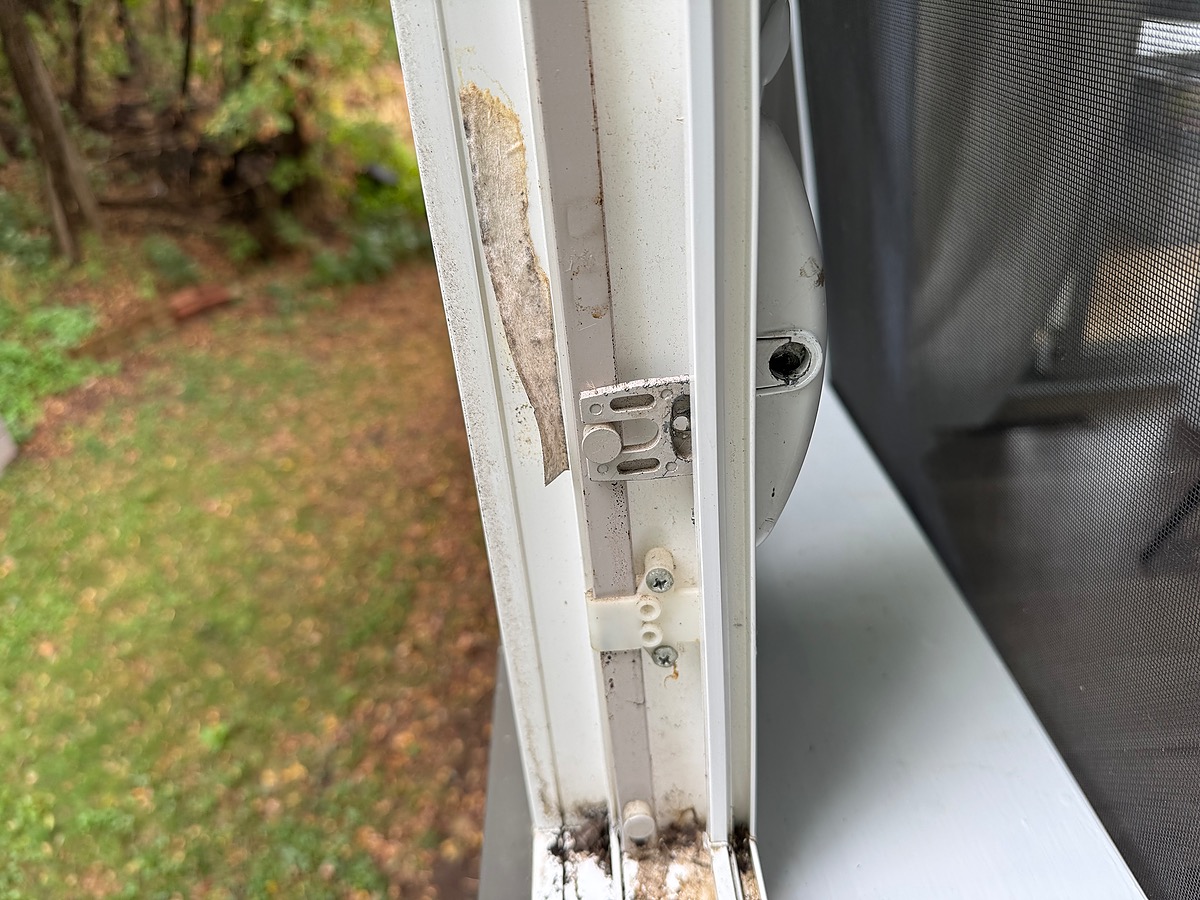

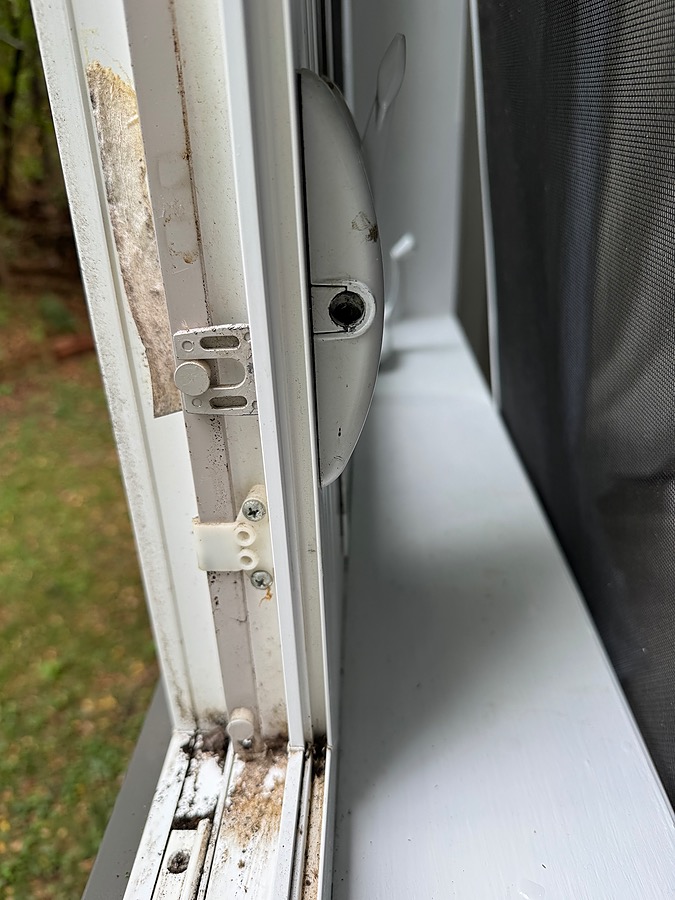

Yes here are the photos of the part

3 user uploaded images

Bob from SWISCO

Yesterday 10:40 am

Thank you. This appears to be a casement window lock. The lever cannot be repaired, unfortunately, so you will need an all new lock entirely.

I'm confident we can help, but we have to see the entire lock assembly out of the window. Too many important details are obscured so long as it's installed. In the meantime, you can see our full selection here.

Home Owner from Minnesota

Yesterday 2:28 pm

Here are the photos from inside of the window and the lock.

4 user uploaded images

Tom from SWISCO

Yesterday 3:52 pm

Thanks! This looks like it could be a match for either the 38-095 or 38-096, depending on the projection of the lock. Review our dimensions to verify the better option.

Alternate view of 38-095

Side view of 38-096
