Repalcement part for Balance for Double hung simonton windows

Home Owner from Middletown , CT

Feb 17, 2014 4:10 pm

Hi

My house was built on 1995. Few windows has the broken balance coil. I did contact Simonton and they told me that they stopped that model.

I am sending few pictures of the broken coil. Please help me to find the replacement parts for this one.

User submitted photos of a coil balance.

5 Replies

Tom from SWISCO

Feb 19, 2014 1:06 pm

I believe Simonton uses our Series 170 or Series 171 springs, but you will have to remove yours from the window and see how well they match.

Home Owner from Middletown , CT

Feb 22, 2014 4:45 pm

Hello Tom,

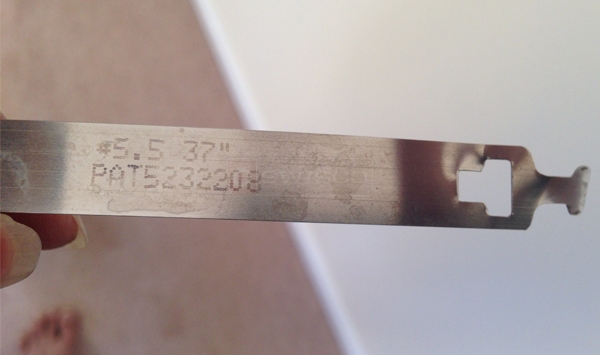

Thanks for your reply. I did remove the old coil and took few pictures. I am seeing the number
#5.5 37 inchs PAT 5232208 in the broken coil. I am sending the picture for your review. Please let me know the right replacement part based on this.

thanks.

Tom from SWISCO

Mar 7, 2014 12:56 pm

Thank you for your patience in this matter. This is not a problem we often come across, as most coil springs have a travel of 35". Frankly, I don't think those two inches will matter very much, but I cannot guarantee that. All of our springs have a travel of 35", though, and we have not been able to find any with 37" like yours.

Home Owner from CT

Mar 8, 2014 8:02 am

Tom,

I did order series 160 and tried with one window. It's working fine. I am planning to put the same coil the othere windows too. Thanks a lot for all your help.

thanks.
