Replace 2 no tilt window side load channel balances + 2 top sash guides

A home owner from Salinas, California says:
Looking to replace 2 no tilt window side load channel balances + 2 top sash guides for aluminum windows installed in house in '90s - locks have "Viking" name (likely same HD used to carry then but no longer in business so no OEM parts)

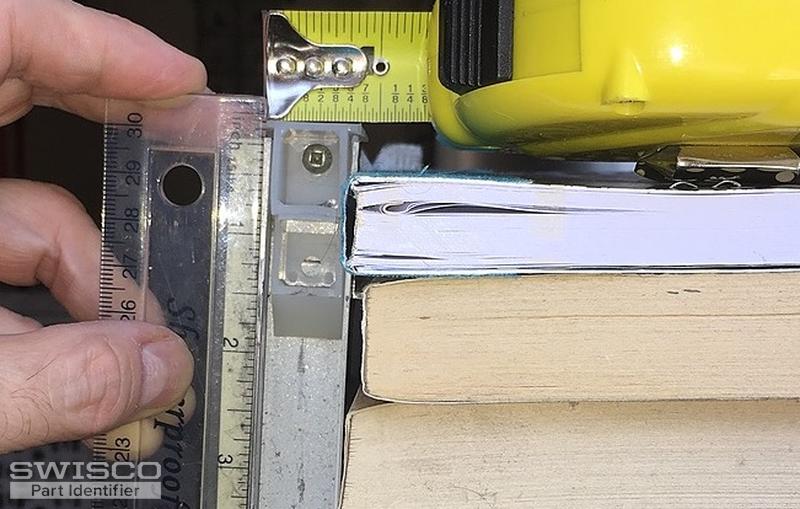

Code on 29" x 9/16" balance: 2830 BSI CN
Top sash guides appear to be whitish colored plastic that measure about 5/8" wide by 1 13/16" long with top 7/8" wide by 5/8" deep

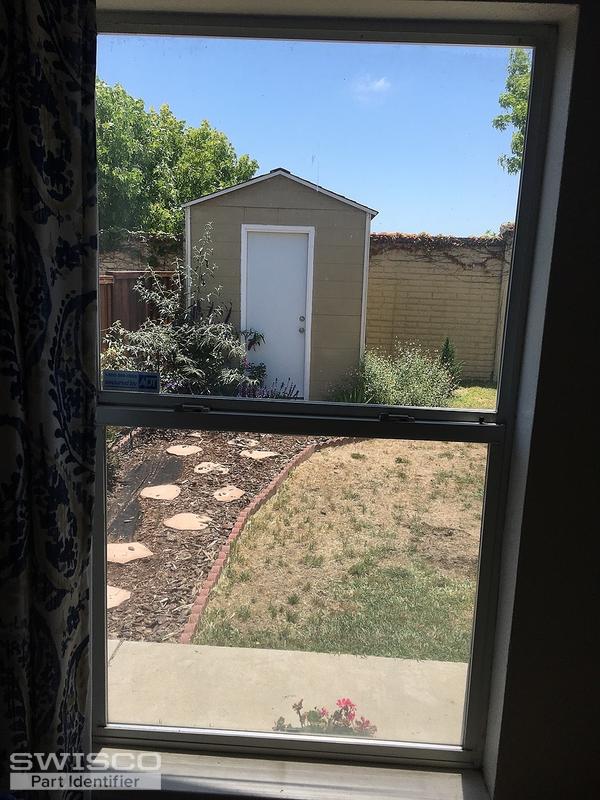

Window sash is about 30" tall by 34" wide
Pictures attached
Please let me know if any other info needed
Thumbnail of the uploaded file named 45599632-F4D4-4386-848C-90278E5A2442.jpeg
Thumbnail of the uploaded file named 73FD141E-873A-40BD-8433-70CA917014E0.jpeg
Thumbnail of the uploaded file named 8AA39D9C-750D-4044-9272-BC0F7886C764.jpeg
Thumbnail of the uploaded file named F0E69B42-60ED-42C1-8DED-E49F59588855.jpeg
Thumbnail of the uploaded file named 995DADD3-CB9B-4477-8A71-EB359D725913.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Let's start off with your top sash guide. Take a close look at our 18-064. Review our measurements to see if they are a match with yours. As for your channel balance, yours look very similar to both our S351-29 and S390-29. These look identical with the exception of the bottom balance shoe. Compare the depth of your bottom balance to each balance's shoe (shown exactly how in the diagram below) to determine which balance would make the better replacement. Whichever one you decide will go with a 2830  option.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

A home owner from Salinas, California says:
Thanks - foot closest to S351-29 (2830).
As for top sash guide looks like length is too short for suggested18-064 (1") whereas existing part length here is 1 13/16", so would best choice be 18-115 ?
Profile picture of Paul
Paul from SWISCO responded:

If your measurements match up better to the 18-115 top sash guide, then you should be ok to go with using it as a replacement.
