Replace Atruim discontinued window glazing

Question

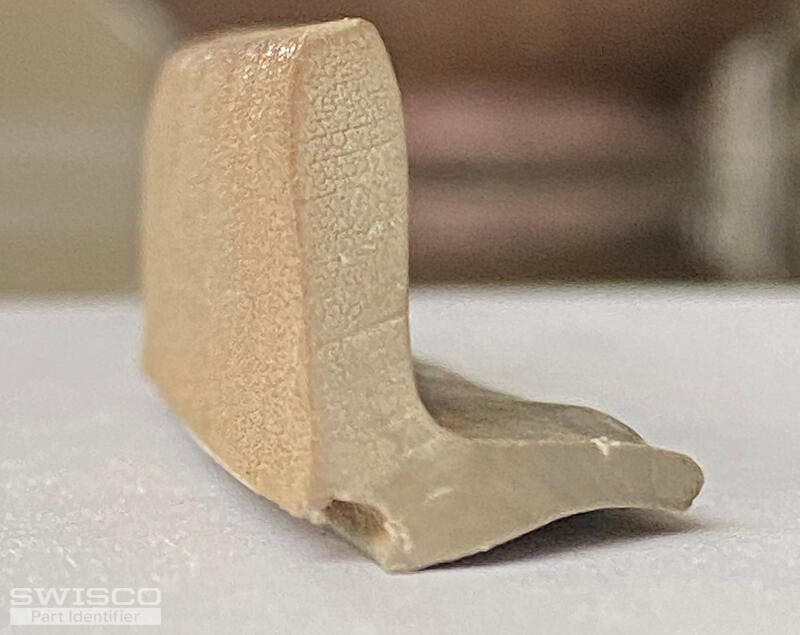

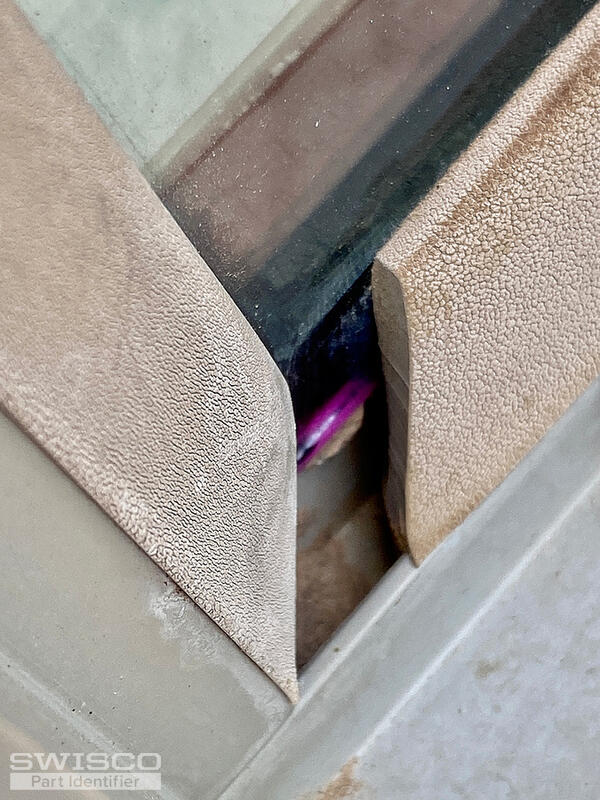

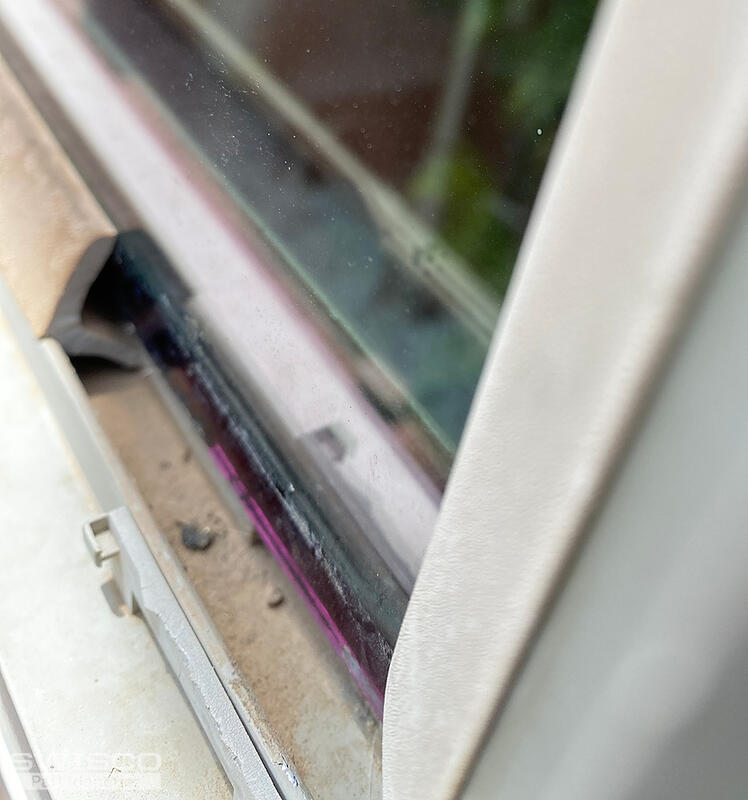

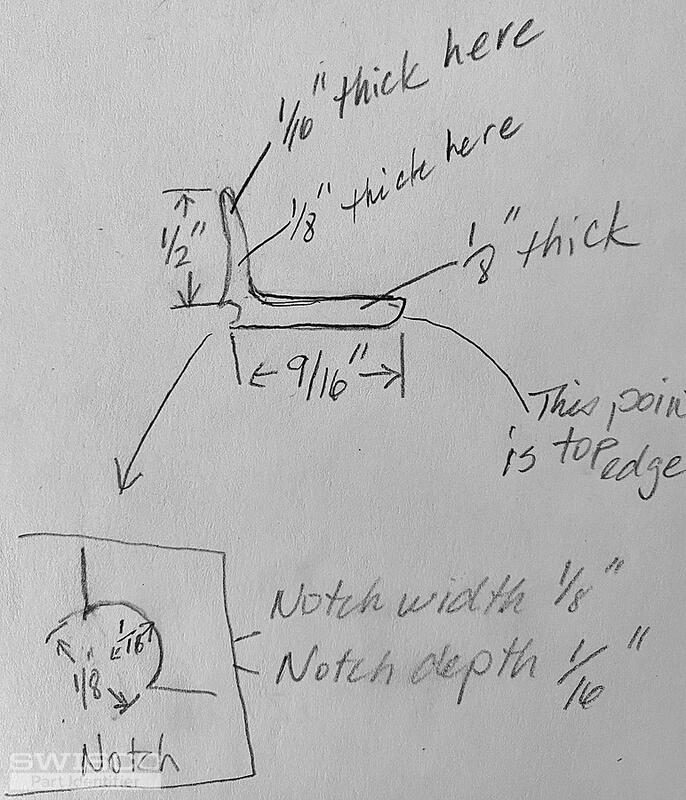

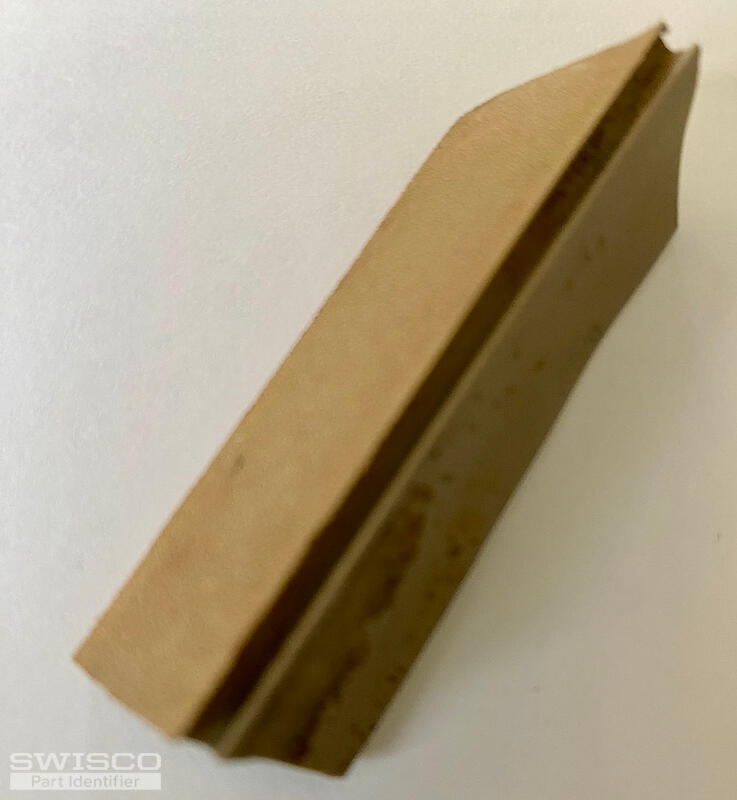

The exterior snap-in vinyl glazing around two of my picture windows needs replacement due to shrinkage from the hot Arizona sun. These are 2004 windows manufactured by Atrium. An Atrium Customer Service Representative referred me to your website since these glazings are discontinued. Window #1 is 30 x 36. Window #2 is 60 x 24. I would like to purchase 25 to 30 feet of new vinyl glazing for the perimeters of both windows that would fit the current windows. Snap-in is preferable, but I am open to other solutions. Photos are attached including one with the dimensions illustrated. Thank you in advance for any help that you can provide.

Casey · Accepted Answer

Hello,

Unfortunately, we do not carry an exact match to the glazing shown in your photo. With that being said, take a look at another customer post showing a similar Atrium part to yours here. As mentioned in our response to that customer, we can't be sure if it would work but take a look at the 59-067 glass spline to see if you might be able to adapt something like this to work for your repair. Thank you!

Profile view of 59-067
