Replace Glass Slider handle/lock system

Question

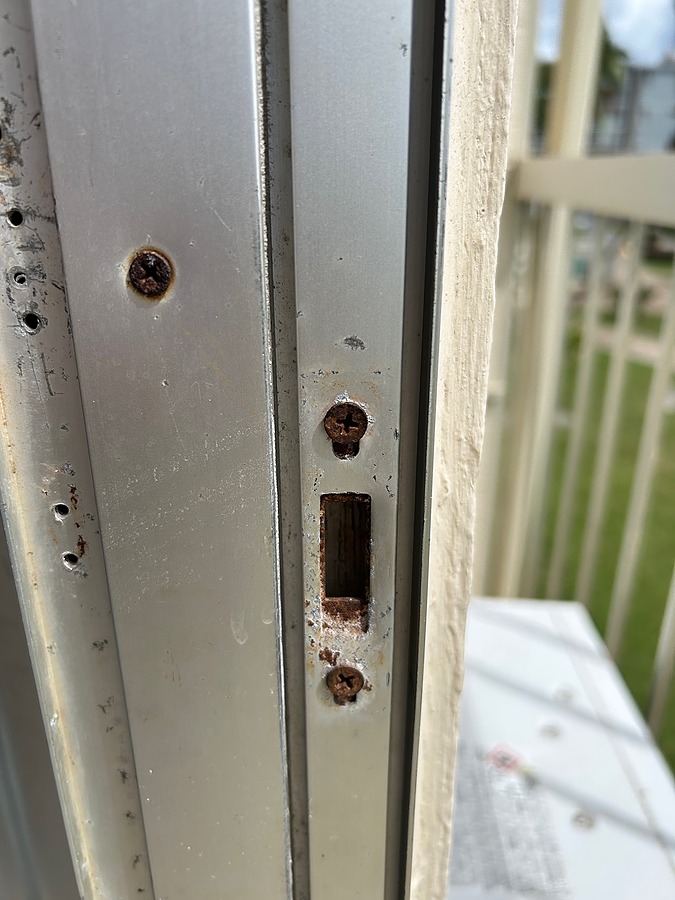

Hello, I'd like to replace this entirte handle/locking set to ensure compatibility and fit. I just cvhanged the lock but the latch turn is sticky and seems to be off. Here are the measurements;
Screw handles spread 5.5”
Door depth 1.125"
Screw spread on lock 3.875"
Frame width 2.3125"
Latch spread 2.625"
Latch receiving openening 1.5" x 0.375"

Bob · Accepted Answer

Hello. Curious setup--it looks like this handle set was modified to work with the mortise lock in the door (the 82-218). For a handle set, the 82-020, 82-030 or 82-032 will work--but you'll need to drill new holes to install these, since they have 3-15/16" hole spacing.
