Replace Tilt Window Spiral Balance

Home Owner from Arlington VA
Hi, I want to replace my Tilt Window Spiral Balance,here are measured results and some photos.
Please tell me how to place an order for the right product, thank you

Home Measured results and something needed
1) The diameter of your spiral balance tube: 7/16"
3/8"? window frame (jamb groove depth) about 9/16"
2) Tube length: 29" (Spiral rod with double pins to catch the pivot shoe)
4) Pivot Lock Shoes: 7/16" Thick (1 15/16", 11/16") roughly
3) nylon bearing color or color tip: Not found, but sash weight 16.8lb
5) Tilt balance Tension Tool
6) sash stop (rabbet 3/4")
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Your tube diameter is smaller than 5/8" (or 9/16"), so I do believe you'll need the 3/8" S900-29 Spiral Balance. Since your sash weighs 16.8lbs the red tip option should work fine for your repairs.

The shoe looks like it can be replaced with the 15-015 but to confirm that this is the correct replacement, you'll need to remove it from the window and compare the thickness. Unfortunately, the cam color does not always indicate the replacement shoe you'll need.

I'm sorry to say we cannot provide you with a replacement for the balance cover (what you are referring to as the sash stop).

You may place the order for these parts directly on the website. If you need assistance with placing the order, you may call (888) 991-1929 to speak with a member of our customer service team.

Reply to Thread

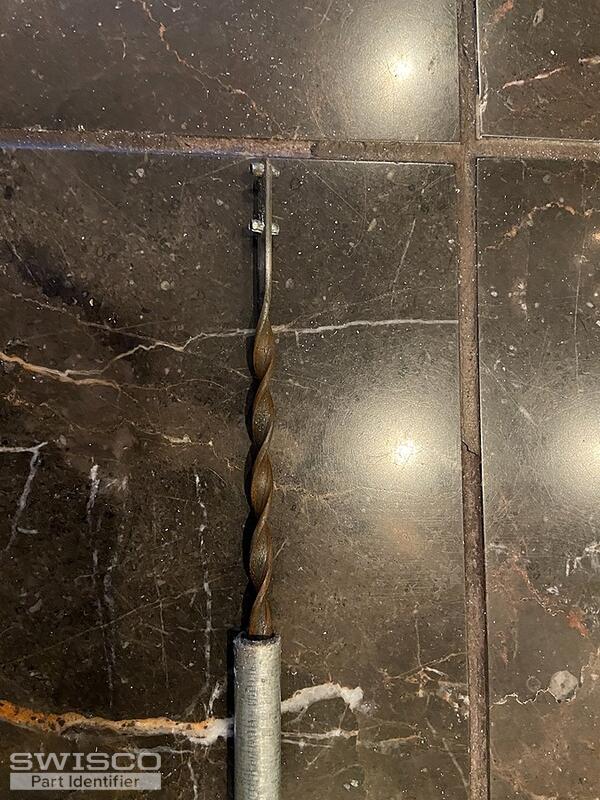

Current Photos:
