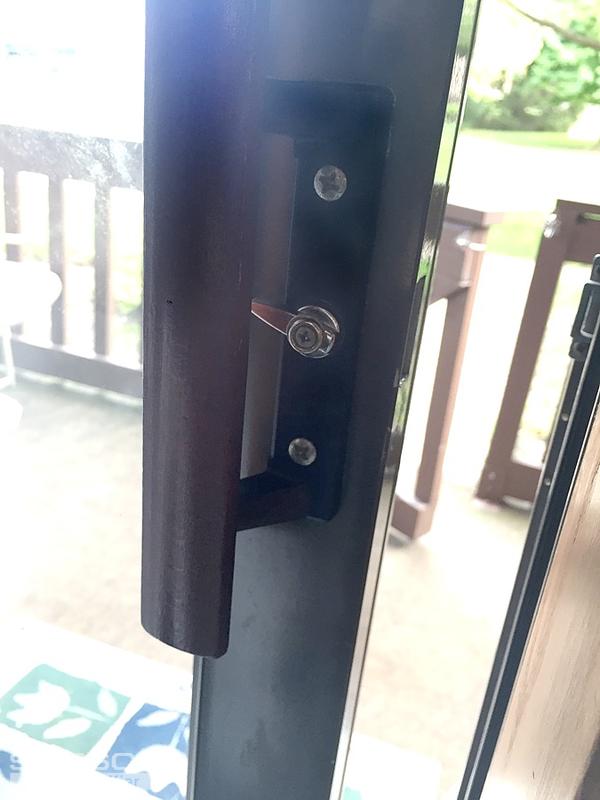

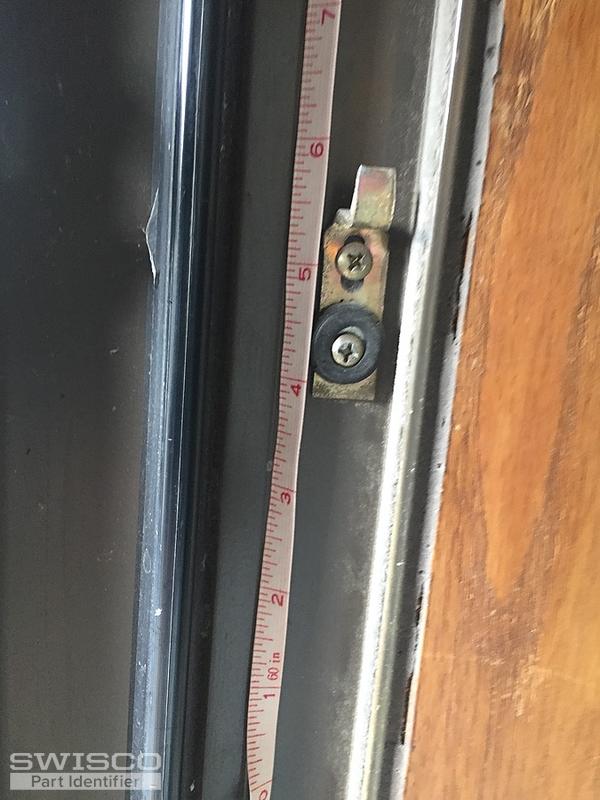

This is an AcornDorwal sliding glass door handle: inside pull and outside locking pull. The latch hook does not stay up and connected to the keeper when the door is unlocked but shut. It must be moved into the locked position manually. Originally, when the door was shut, the latch hook automatically connected to the connector to hold the door locked. (I assume a spring or something has broken?) My Father-in-Law wants me to replace the whole assembly. The door is 1-1/2" wide. The mounting holes are spaced 3-1/2" apart. I am sorry but I did not take disassembled photos. I can if necessary.
I suspect I need to buy the
82-306 Keyed Exterior Sliding Door Pull and the
82-055K Keyed Handle Set. The look of
82-055K appears close to his original Handle but, of course, the main thing is the for it all to work properly. Can you let me know if this is the correct choice or, if not, make a suggestion?
