Replace pivot shoes

Quick Learner from Kenosha, Wisconsin

May 21, 2020 10:46 am

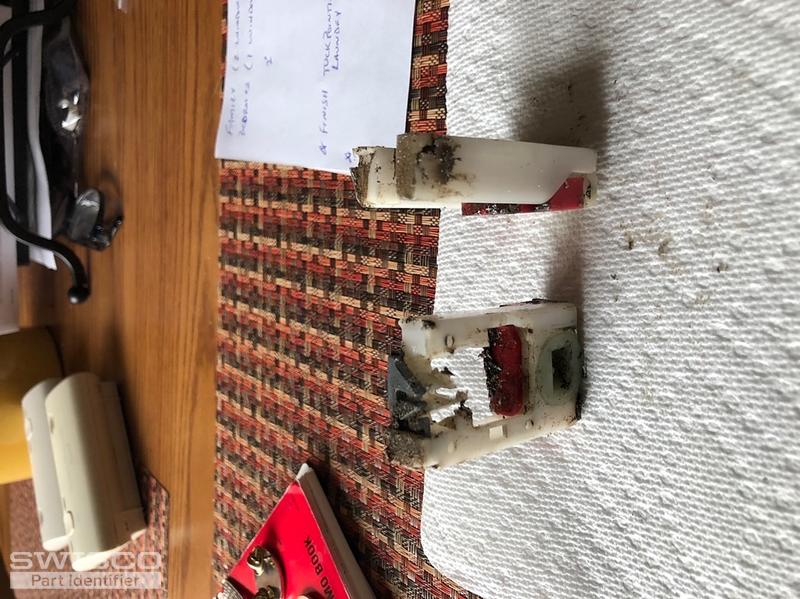

I am looking to replace some pivot shoes on my windows. I have included some pictures or the item that I am looking for. As far as I can tell they are 1-5/8" by 3/4". If there are other dimensions that would be needed, please advise.

4 user uploaded images

4 Replies

Casey from SWISCO

May 25, 2020 1:14 pm

Hello,

We'd be happy to recommend a replacement for your pivot shoe but we will need to see a photo of an undamaged shoe removed from the window. You'll also need to remove the hardware to get accurate measurements for the width and thickness, which we'll need to narrow down your replacement options. Thank you!

Quick Learner from Kenosha, Wisconsin

May 28, 2020 10:20 am

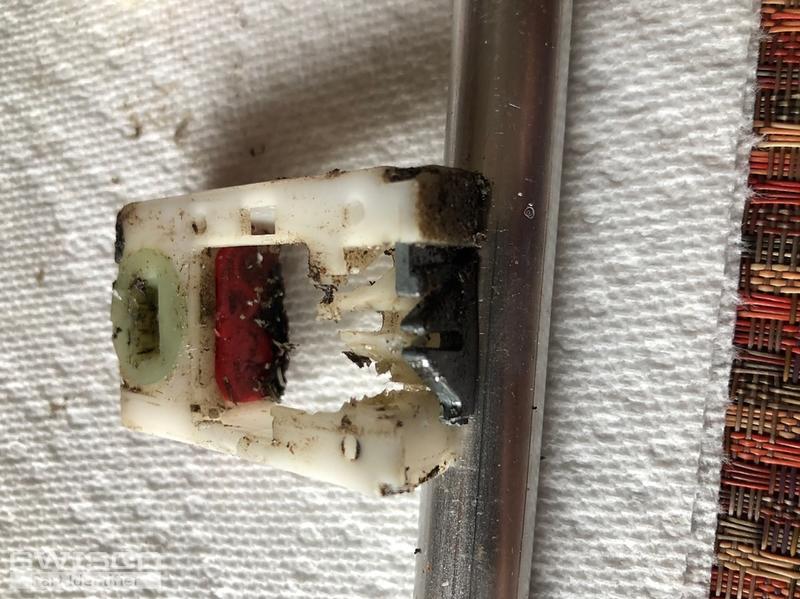

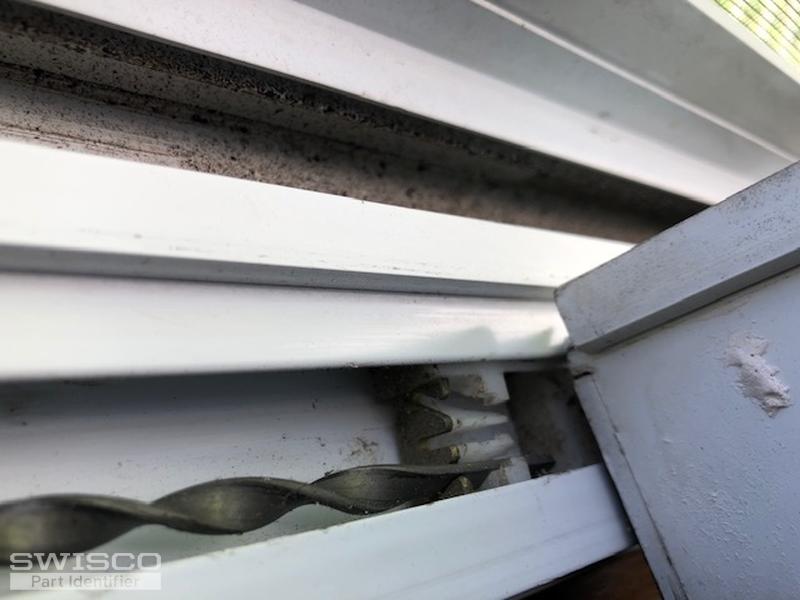

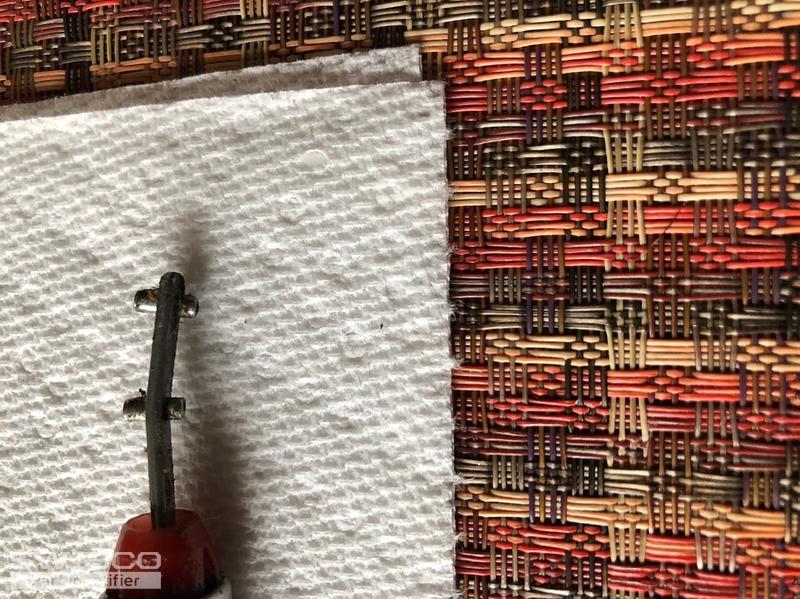

Please find attached a picture of the shoe (Measures 2" in length, 1.25" in width, .50" in thickness) that I need to replace. A picture of the spiral balance (25" in length) is attached as well so that you can see the connection point.

3 user uploaded images

Casey from SWISCO

May 29, 2020 8:19 am

Thank you for the additional photos. Take a look at our 15-146 pivot shoe. The dimensions match up to the ones you've provided and the only difference appears to be the color of the break, which is nothing to worry about. Thank you!
