Replace roller assembly

Question

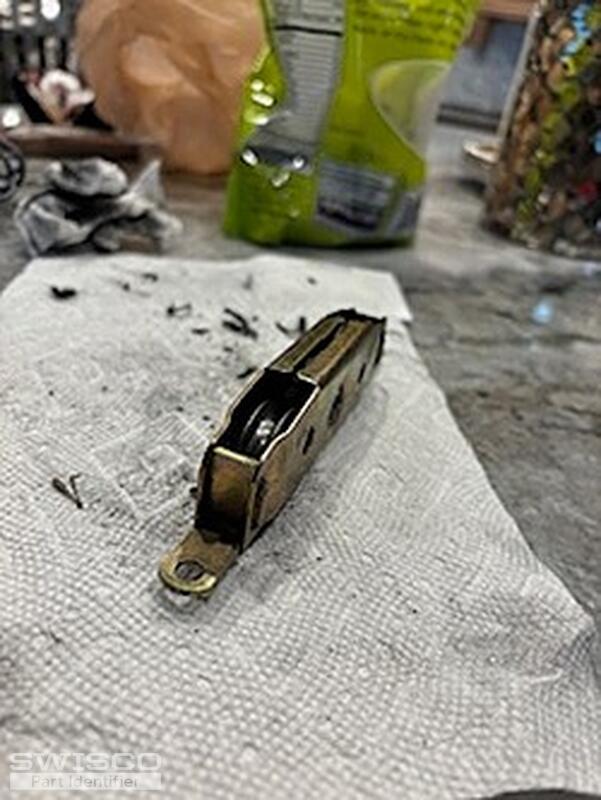

I'm looking for the roller assembly for a Doormaster sliding glass patio door. Dimensions are:

Width: 5/8" at the widest point; 1/2" at the ends

Height: 1 1/4"

Length: 6 1/2" overall; 5 3/4 from center of one screw to the center of the other

Wheel diameter: 1 1/4"

Wheel material: Metal

Thanks for your help!

Steve

Jasmine · Accepted Answer

Hi Steve,

Thanks for writing in! Based on your confirmed dimensions, I believe your roller is the 81-018 Sliding Patio Glass Door Tandem Roller. To determine if this is the right replacement, be sure to double check the dimensions from your roller; although, I am confident this is the right replacement.

The stainless steel version of this assembly is part 81-149.

Alternate image for 81-018
