Replace sash

A quick learner from Florida says:
September 26, 2020

Hi. I am replacing my sash in my dining window.

Andrea

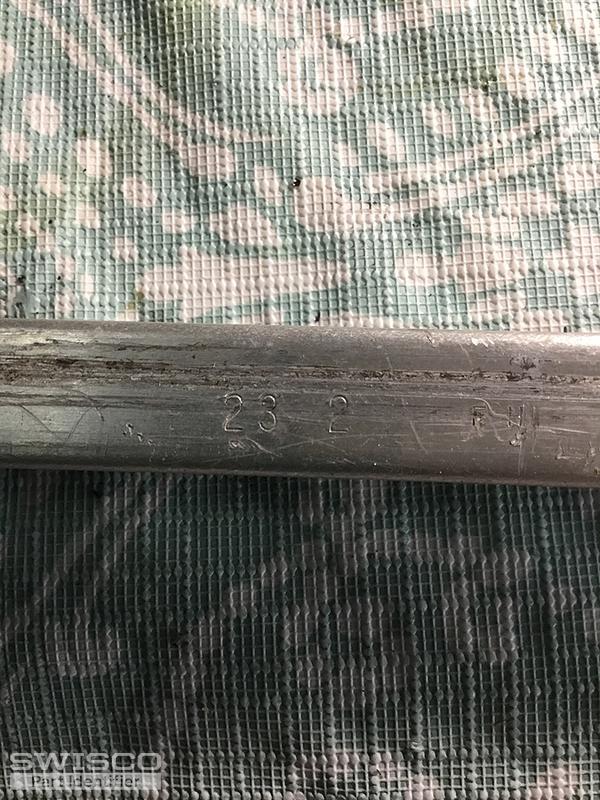

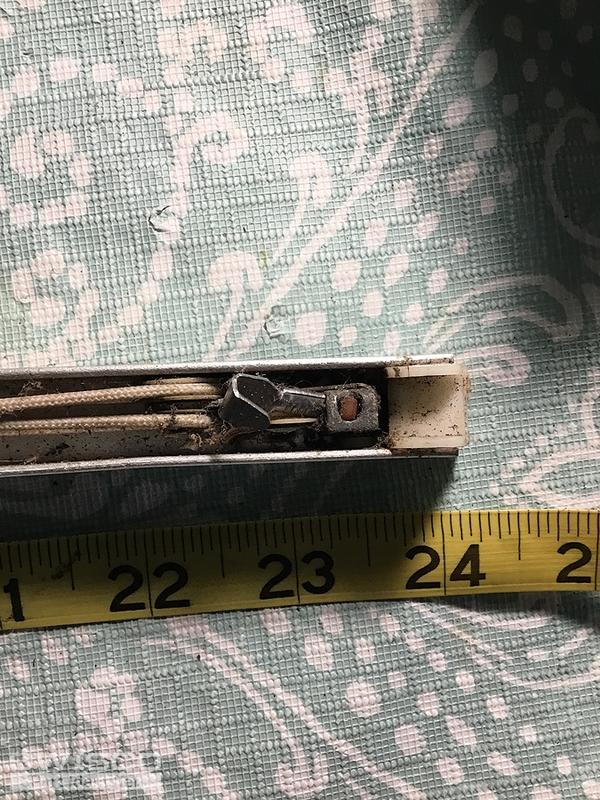

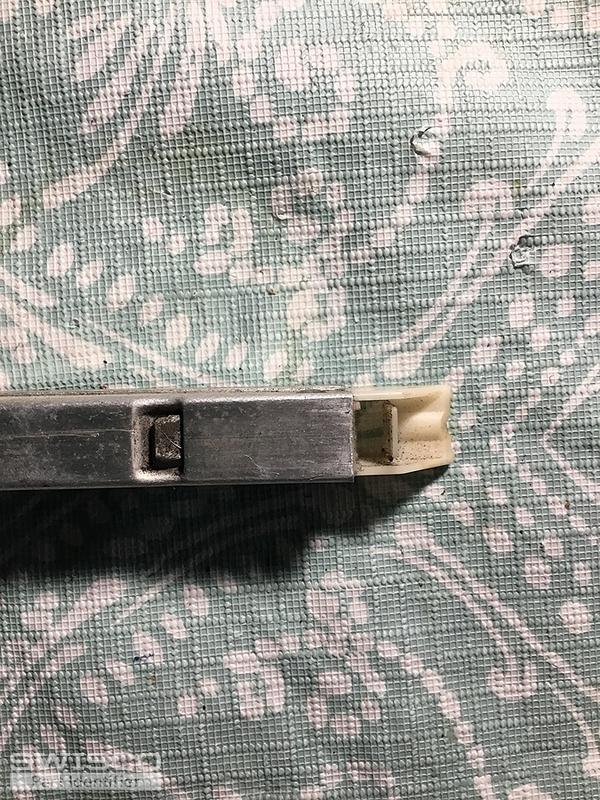

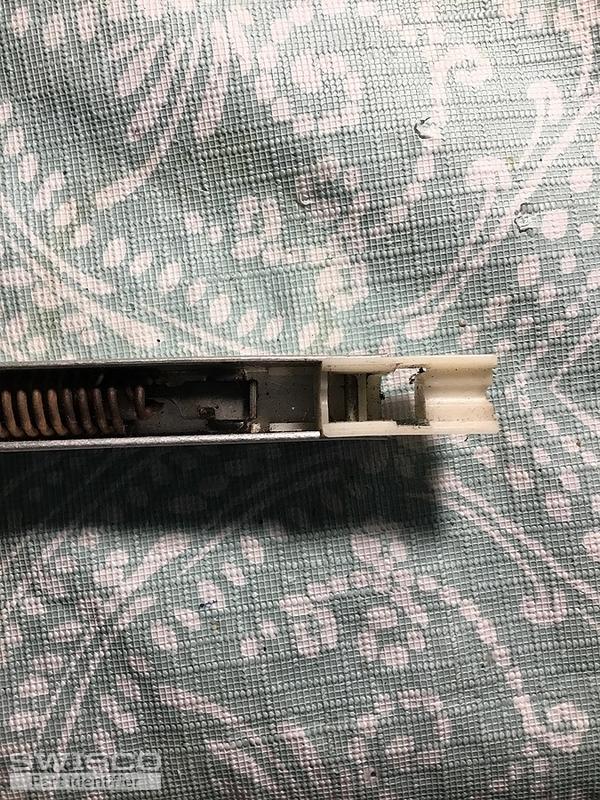

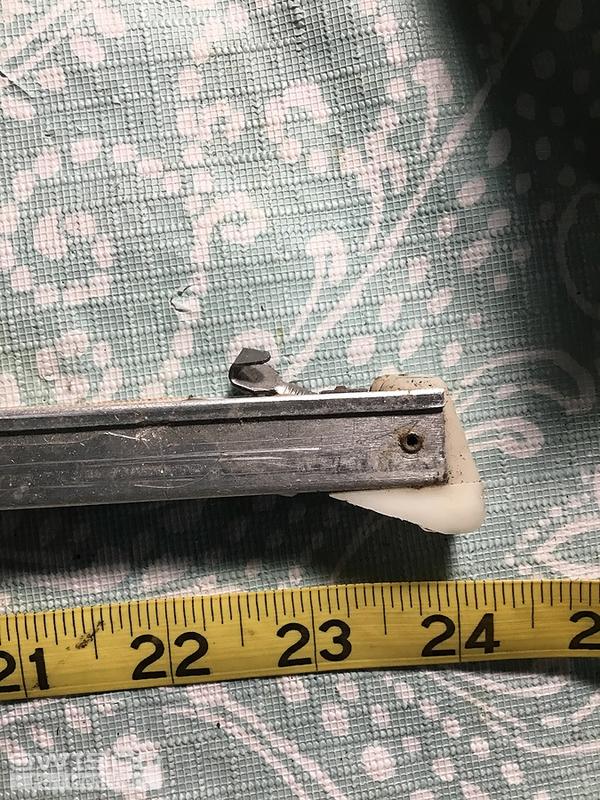

Thumbnail of the uploaded file named 6E671B45-5277-4AD0-81E4-9FAD9D35AC7B.jpeg
Thumbnail of the uploaded file named FD542E53-99D8-4CB2-81EB-CE51B76DD9F6.jpeg
Thumbnail of the uploaded file named C01D7313-DD4F-4732-8FC1-FC463C313AD9.jpeg
Thumbnail of the uploaded file named 5E320D75-337F-4DA4-BBC5-38EEE1355AC4.jpeg
Thumbnail of the uploaded file named 08BC1DD1-30CD-4288-84EA-581BFF26E062.jpeg
Profile picture of Casey
Casey from SWISCO responded:
September 30, 2020

Hello,

It looks like you have either our S351-24 , with a 15-002 bottom attachment, or S390-24 , with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2320 spring strength option for your replacement balances. Thank you!



Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
24" Series 351 Channel Balance
24" Series 351 Channel Balance
S351-24
$10.77
24" Series 390 Channel Balance
24" Series 390 Channel Balance
S390-24
$10.55
