Replace the channel balances

Quick Learner from Indianapolis

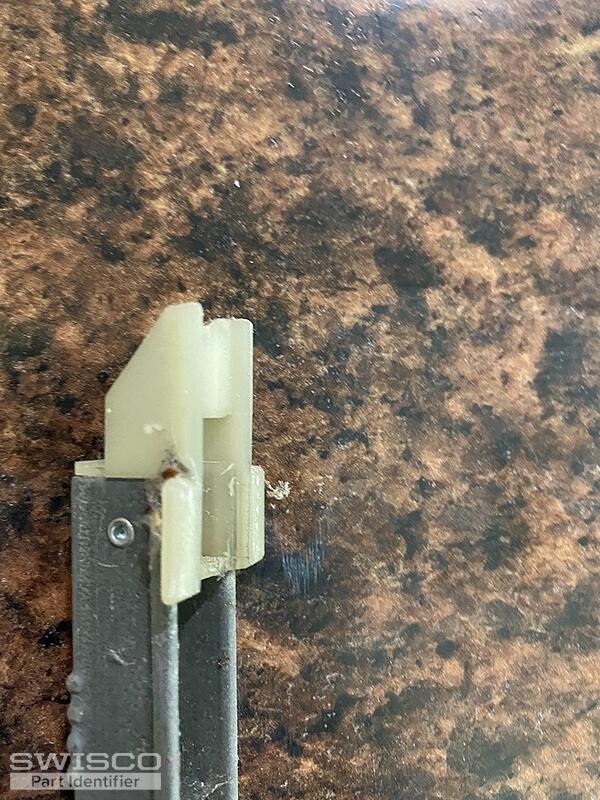

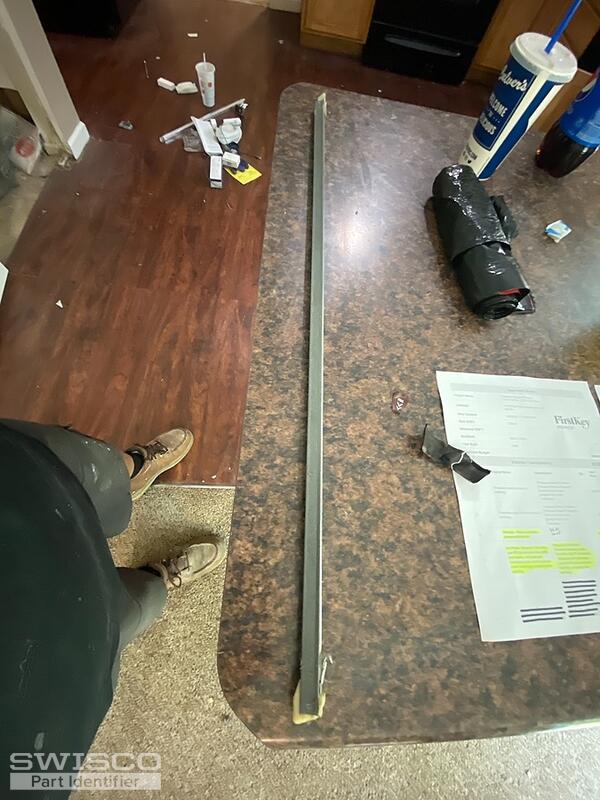

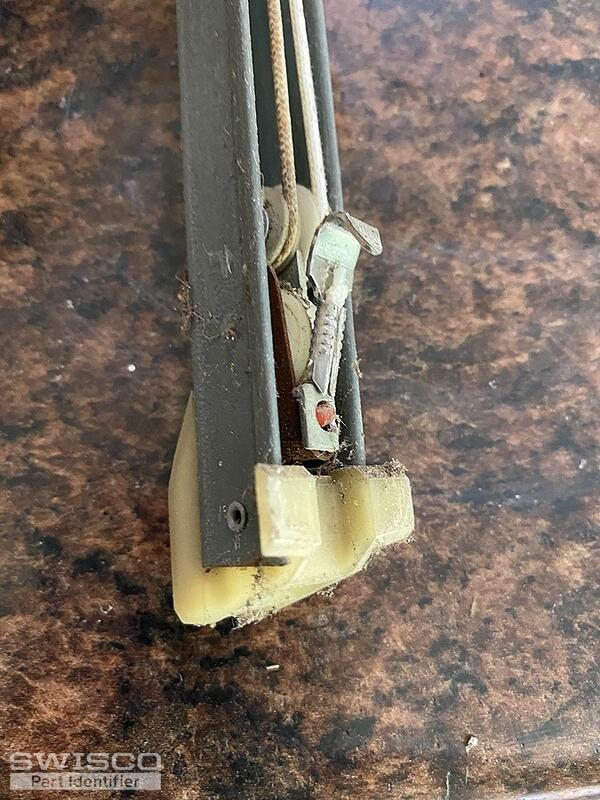

Need help on what balances these are. s380?
3 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

Does your metal channel have a stamp? If it doesn't, you'll need to remove and weigh your sash to choose the appropriate stamp option. There's a chart on the S380 and S385's product page that shows you which option you'll need based on the weight of your sash.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
