Replace weatherseal
Quick Learner from Cleveland
Sep 2, 2023 12:21 pm
I need to replace the weatherseal on several windows. I think I need 58-182 since the t-slot is 3/16. I am unsure about the bulb diameter as it is so compressed and rotted (see pictures). Please let me know if I have selected the correct product code.

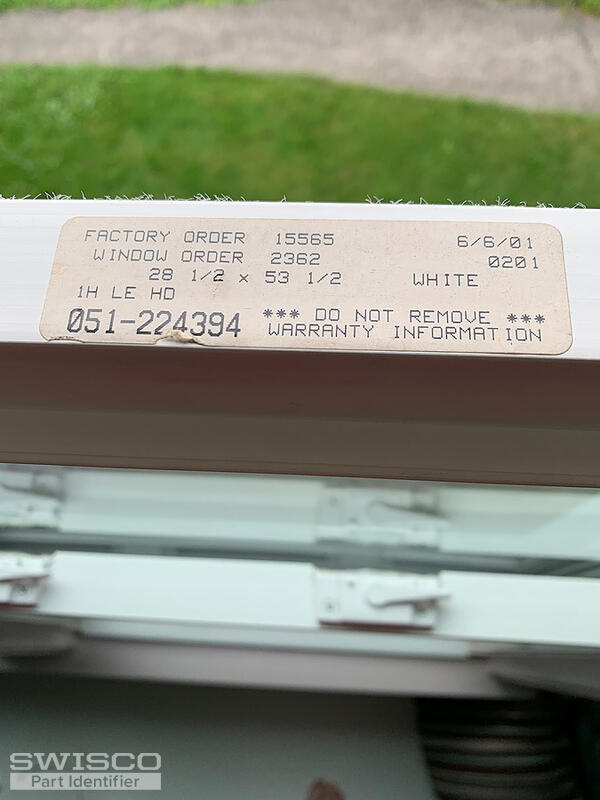

4 user uploaded images
2 Replies
Bob from SWISCO
Sep 3, 2023 12:39 am
Thanks for posting. I am inclined to think it's the 58-182 as well; the 58-183 is the other possibility. This is a very similar seal, but besides having a slightly larger bulb, it also has an extended shelf extension, which allows it to go further under the sash. I don't believe I see this on your old bulb. Therefore the 58-182 seems best, but do double-check as intact a sample as possible and compare to the end profile diagrams below to be certain. Let me know if you have further questions.
Profile of 58-182
Profile view of 58-183
