Replacement

Quick Learner from Virginia
When trying to close the window, the handle comes unscrewed from the assembly. The crank opens three windows that open upwards and downwards. I don't see any identifying marks on the current crank. Thank you
2 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but we would need to see your operator fully removed from the window so the arms that connect to the internal linkage are fully visible. See the video below to help you through the process. Thank you!

Quick Learner from Virginia

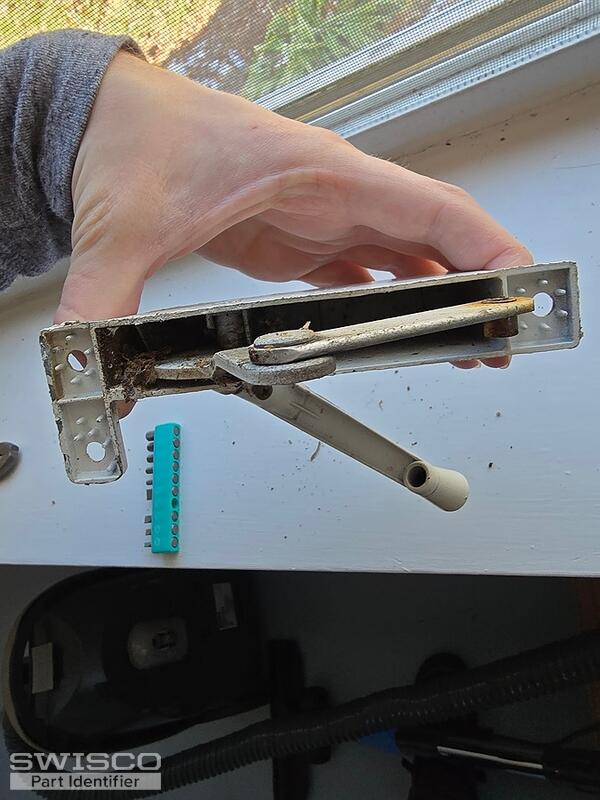

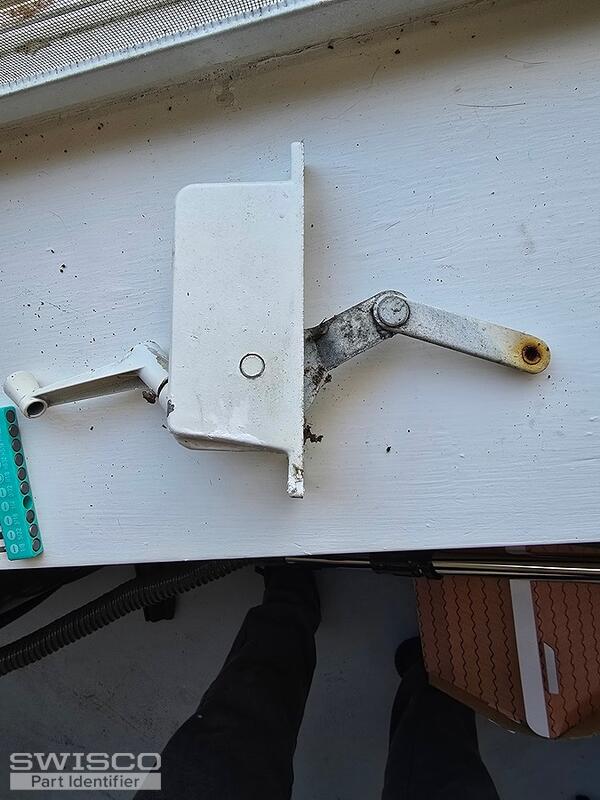

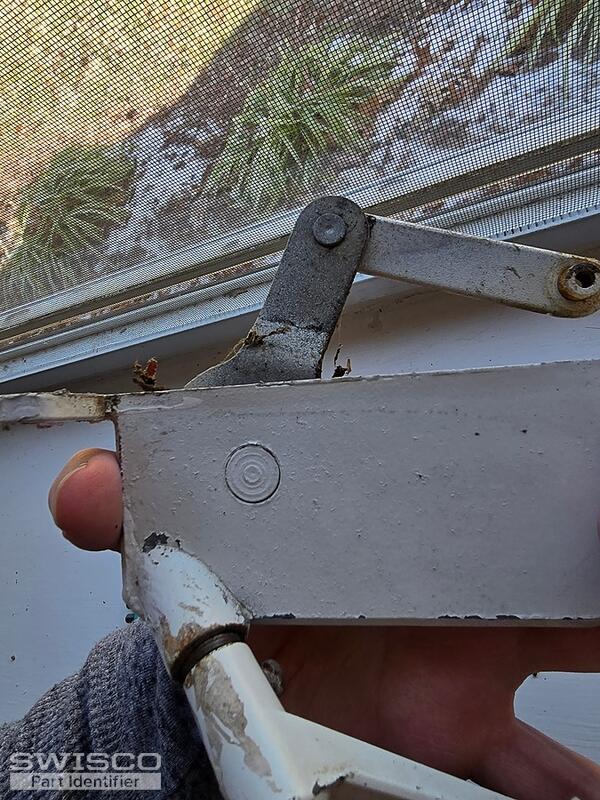

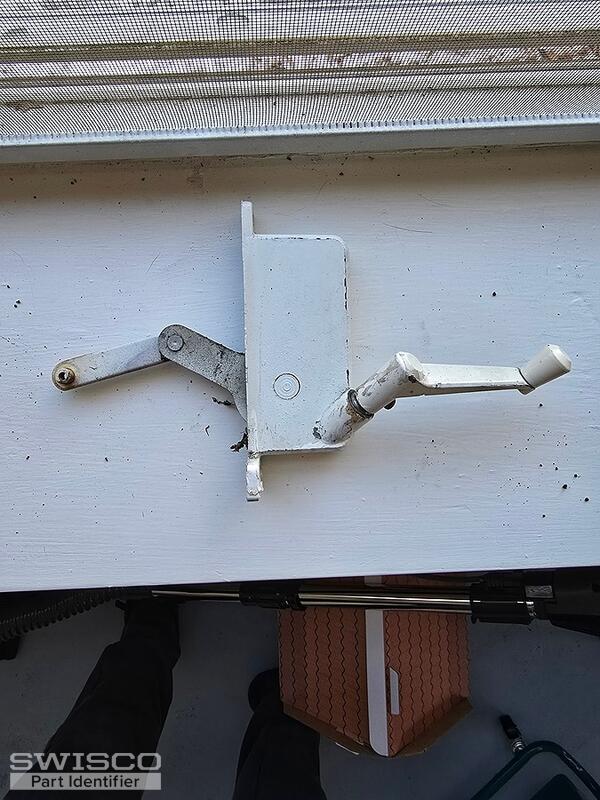

Here it is removed
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. Your operator is similar to the 39-025 shown below. Take a look and see how the dimensions compare to yours. If you notice any discrepancies, please write out your exact dimensions and we'll be happy to confirm if a closer match is available.

Dimensions for 39-025
Dimensions for 39-025

Quick Learner from Virginia
That is it thank you
Casey
Casey from SWISCO
SWISCO
Expert

No problem, good luck with the repair!
