Vinyl therm window pre 1992.
22" end to end
Number 2030R I think
Do you have this?
Replacement Balance ID
Home Owner from St Paul
Jun 11, 2023 6:07 pm

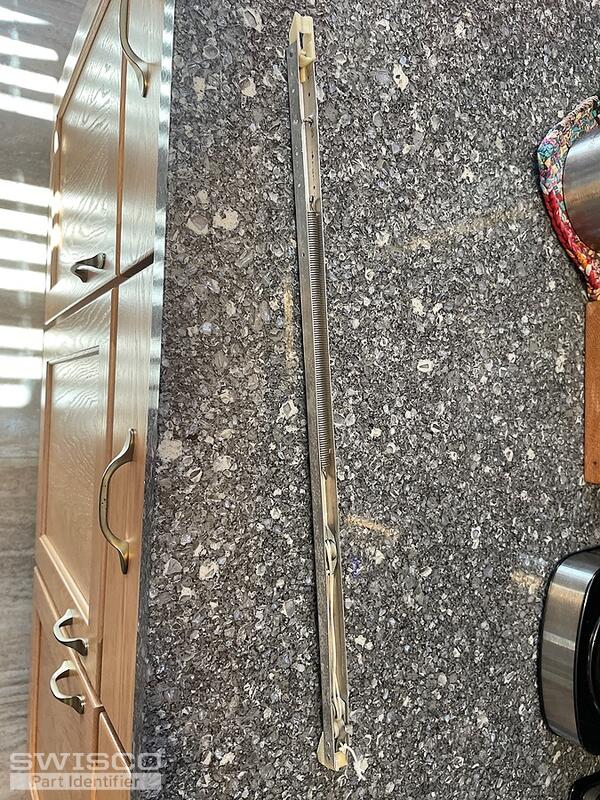

1 user uploaded image
2 Replies
Bob from SWISCO
Jun 11, 2023 7:01 pm
Thanks for posting. Please double-check the metal channel length. Be sure not to include the nylon fittings on either end in the measurement. I believe it should come out to 21". If so, you likely have either an S351-21 or S390-21. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both balances with your old hardware to determine what you need. In either case, for a stamp option choose 2030.
Comparison of the S351 and S390 balance shoes.
