Pin diameter = 1/4"
Pin height = 9/16"

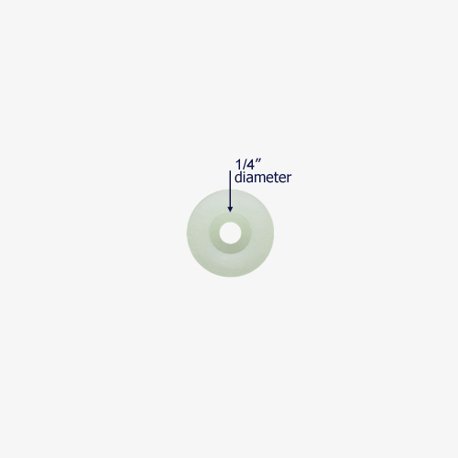

Pin cap inside diameter = 1/4"
Pin cap outside diameter 6/16"
Replacement Bifold Door Pin Cap
Quick Learner
Oct 18, 2024 4:35 pm
3 user uploaded images
2 Replies
Paul from SWISCO
Oct 21, 2024 11:55 am
Hello,
You might be able to use the 23-122 top guide pin with the nylon cap if the base of your pin is 3/8". We also offer the 23-112 spring pin and the 21-100 nylon cap that could work if the base is 7/16" in diameter. Review both options to confirm the best fit. Thanks for posting!
Dimensions for 23-122
Dimensions for 23-112

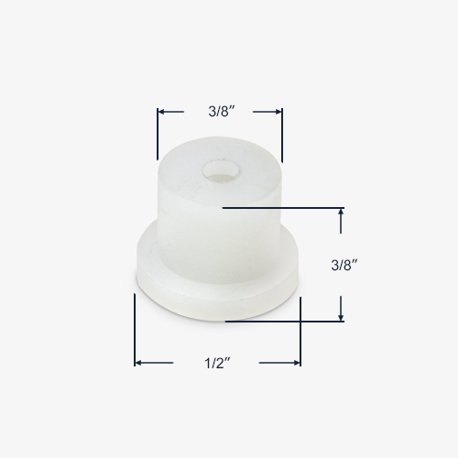

Side profile view with measurements
Alternate view with measurements
