Replacement Caldwell Window Springs

A home owner from Seattle, WA says:
June 4, 2022

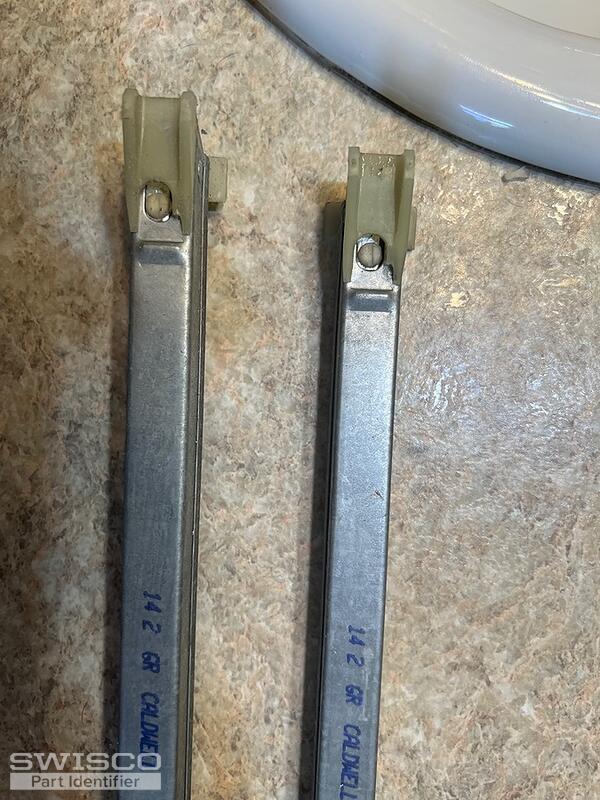

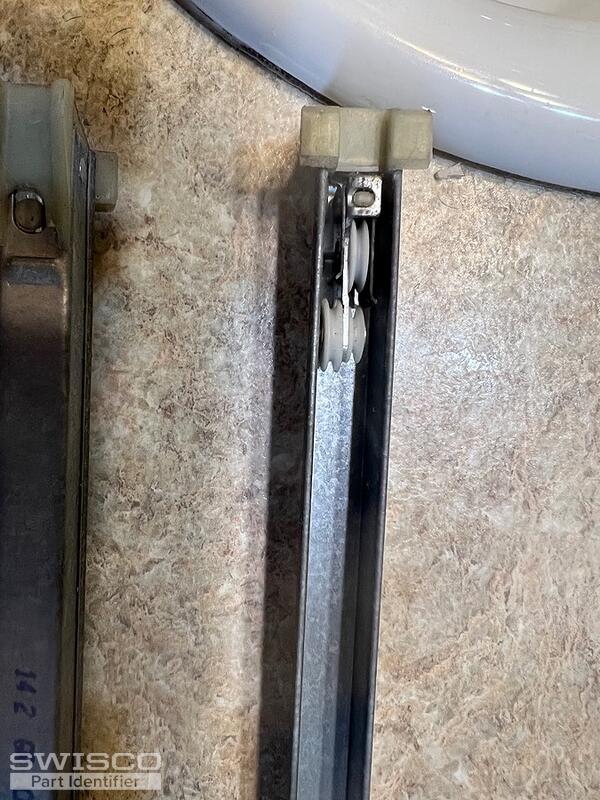

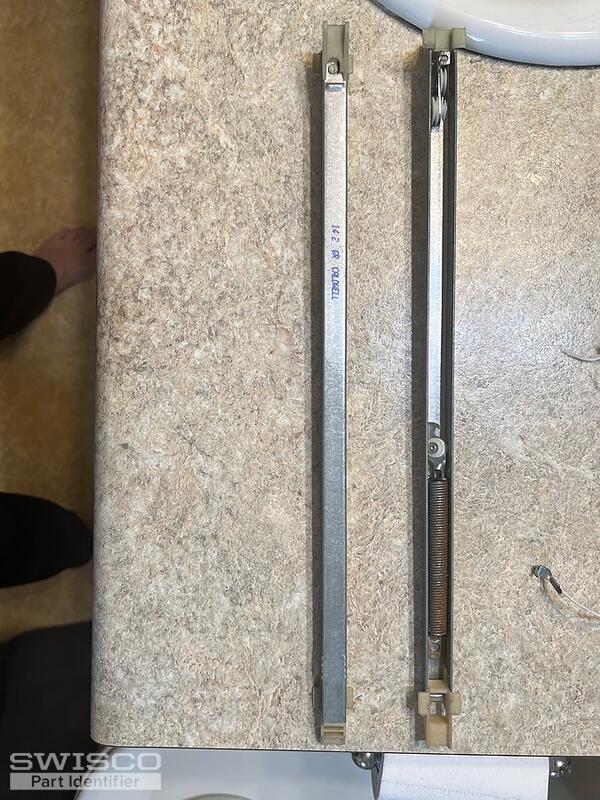

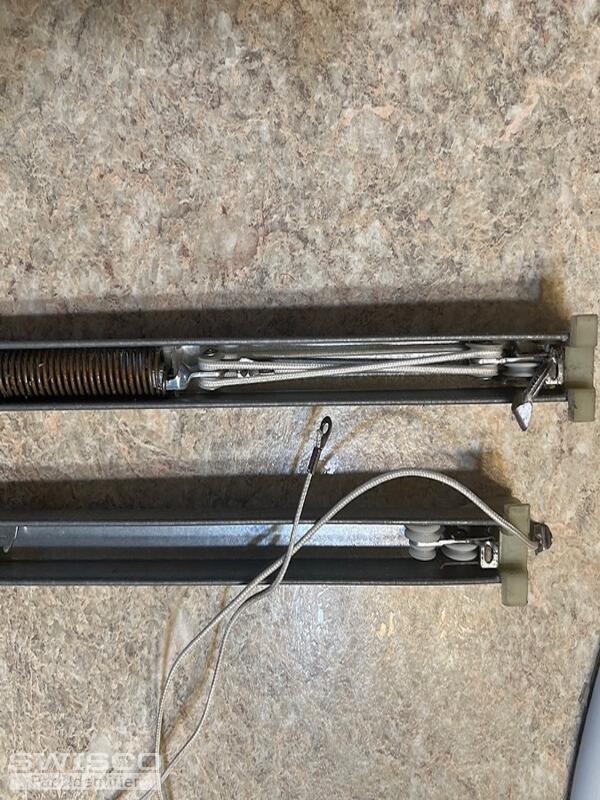

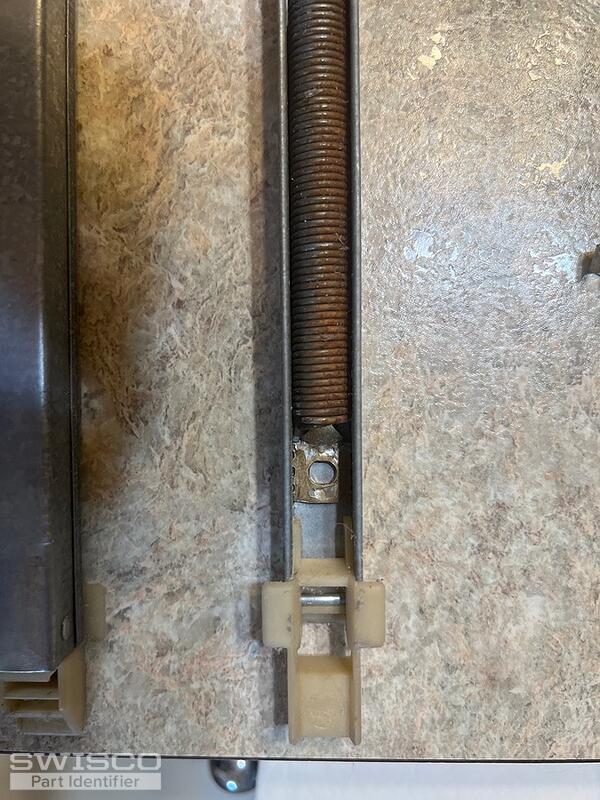

Hello, I am trying to find replacements window springs. The cable on one of my springs snapped and I'd like to order 2. They both are stamped with the same indicator

"14 2 GR Caldwell"

The channel appears to be 15" long not counting the plastic overhang
Thumbnail of the uploaded file named D88E1E30-512A-4B53-86EB-7CCAD980D55F.jpeg
Thumbnail of the uploaded file named F2CAE80F-CAA6-47F0-8DD2-7FCECE749459.jpeg
Thumbnail of the uploaded file named FF5E871A-782A-4E58-87D5-B186D7F1E76C.jpeg
Thumbnail of the uploaded file named 99788494-A9AB-490E-98AB-9B329432CA46.jpeg
Thumbnail of the uploaded file named AD6AC436-5DFA-43B1-B723-155000EFDD76.jpeg
Profile picture of Emily
Emily from SWISCO responded:
June 7, 2022

Hello there!

Your hardware is a match for either our S380-15 or S385-15 channel balance. These parts may look almost identical but the important difference is the depth of the bottom shoe. The Series 380 comes attached with a 1" deep shoe and the Series 385 comes attached with a 1-3/32" shoe. See the image below to determine which one matches up. You will also need the 1420 strength option, based on your 14 2 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
15" Series 380 Channel Balance
15" Series 380 Channel Balance
S380-15
$9.34
15" Series 385 Channel Balance
15" Series 385 Channel Balance
S385-15
$9.34
