Replacement Casement?

A quick learner from Taos, NN says:
September 15, 2022
Hello,

I am having trouble finding a suitable window operator replacement for the attached photos. The window operator arm often falls out of the track when opening and closing the window all the way. How should I fix this? Will replacing the window operator arm resolve the issue? If so, which replacement part is suitable?
Thank you for your help!

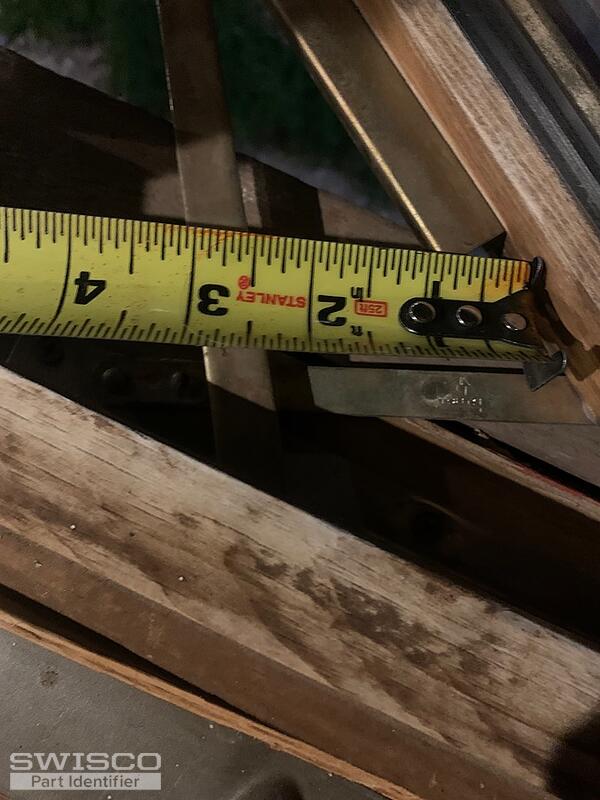

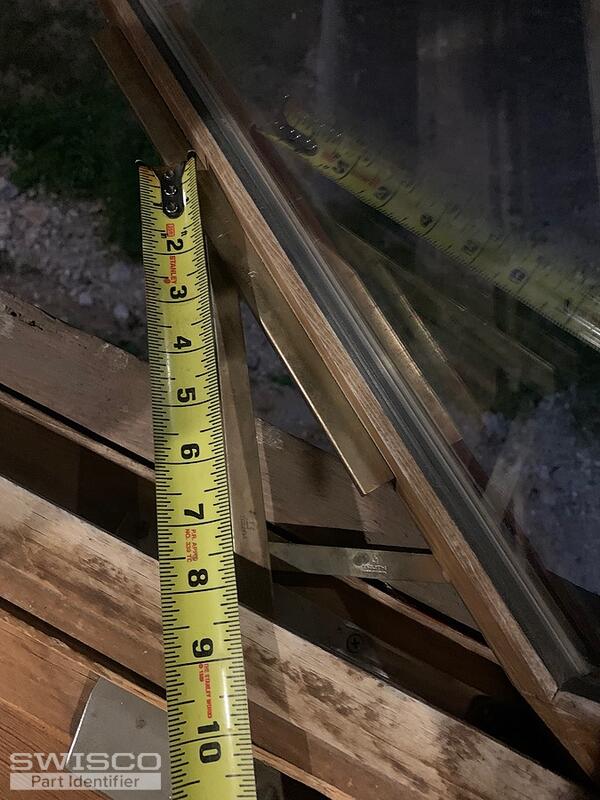

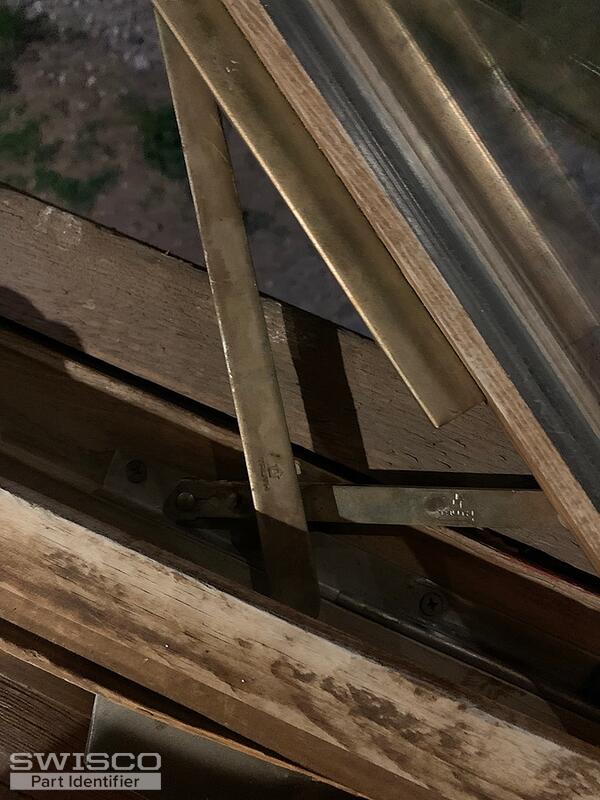

Thumbnail of the uploaded file named 9D83730A-1131-46BE-9864-31469BB1C163.jpeg
Thumbnail of the uploaded file named 45BE18C5-65D6-4316-991E-268607C0355F.jpeg
Thumbnail of the uploaded file named 3BD34F4F-C152-4977-909B-C94EC36CAC6B.jpeg
Profile picture of Casey
Casey from SWISCO responded:
September 16, 2022

Hello,

I would recommend detaching your operator arm from the track to compare to the specifications of the replacement options that we've related for you.

As for what is causing the problem, I can't be sure but you can start by checking the track for damage. If the wheel at the end of the operator's arm is broken, that would also account for why the arm isn't staying in the track. It's also possible that the track could be installed in the wrong position and you may need to move it to a new position so that the operator doesn't slide out of the end of the track when the window is being closed. Take a look and see what you think.
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
9-1/2" Single Arm Operator, SS Roller
9-1/2" Single Arm Operator, SS Roller
39-365
$30.99
9-1/2" Single Arm Operator, SS Roller
9-1/2" Single Arm Operator, SS Roller
39-366
$30.99
