Replacement Channel Balance

Quick Learner
Jun 10, 2012 12:23 pm
Hi, I have 2 channel balancers that need replacement with milgard windows.

They have a stamp "23 5 HS Caldwell", the length of the metal portion is about 24 inches.

The larger of the plastic parts is slightly larger than 1" depth so I assume it is the 1-3/32", and the smaller is about 1/2" deep.
3 Replies
Paul
Paul from SWISCO
Jun 11, 2012 2:06 pm
SWISCO
EXPERT
Thanks for posting! Are your attachments also winged? With a measurements of 1-3/32", that makes me think you have our winged 15-004. How about your top attachment, does it match our 19-005?
Paul
Paul from SWISCO
Jun 15, 2012 2:06 pm
SWISCO
EXPERT
Thank you for the images. Our 19-005 top attachment will replace that. Please take a look at our S385-24 channel balance with a 2350 stamp option and see if that will work out.
Quick Learner
Jun 15, 2012 2:07 pm
The 15-004 does match; however, the 19-005 differs where I have a 1/8" flat spot at the top. Other than that, all dimensions match. Picture attached.

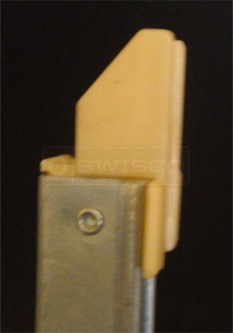

A customer submitted photo of channel balance attachments.
