Replacement Channel Balance

Home Owner from Meadow Vista, CA
Need to replace both channel balances on a Milguard window.
Channel length (excluding fittings) is 33"
Shoe depth is 1-1/16 inches
Marking on channel is 32 3 DU CMC 2

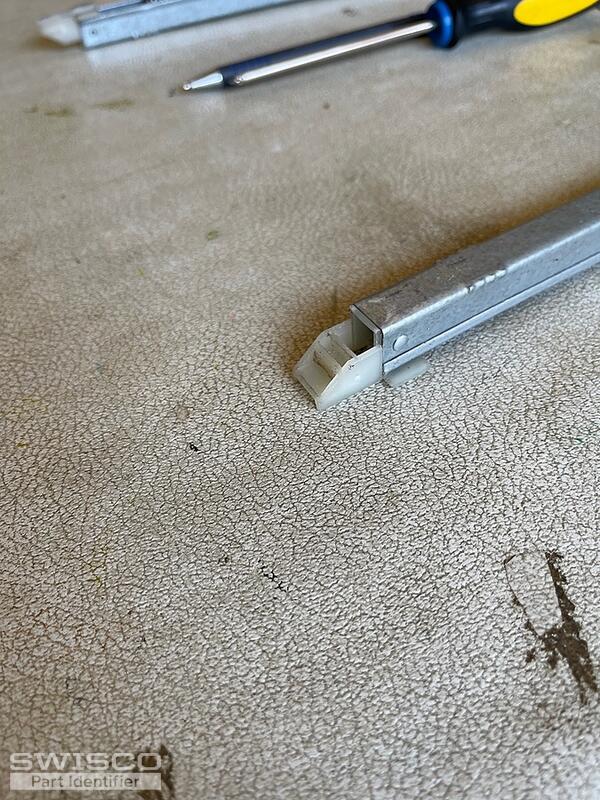

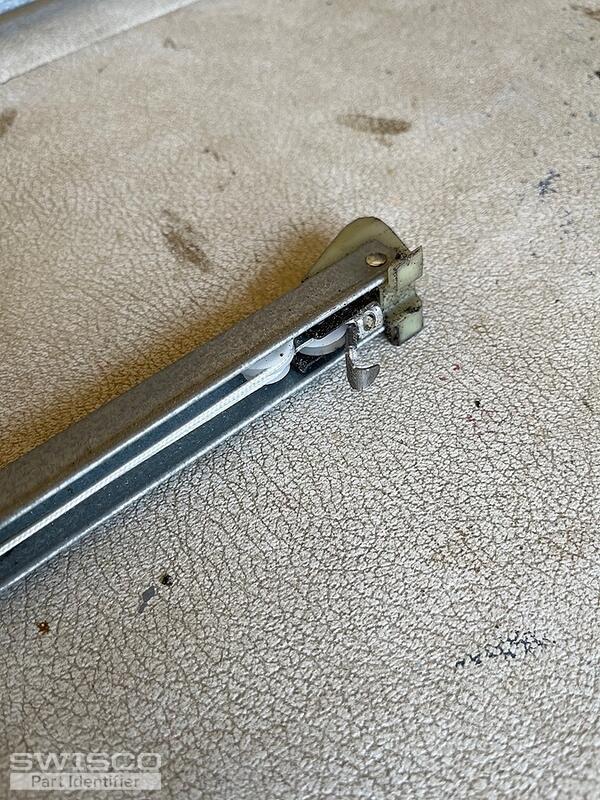

5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for your photos. Based on what I see here, you have either our S380-33 or S385-33, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match. Considering the measurement given in your post, it's very likely that you had the 1-3/32" version but it wore down over time from constant use. There is no 1-1/16" size made. You should triple check your measurements just to be sure.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Home Owner from Meadow Vista, CA
Tom,
Thank you for the quick response. I ordered two of the S385-33's
Craig
Tom
Tom from SWISCO
SWISCO
Expert

Great, thank you! We really appreciate the business.

Please let me know if we can be of any further assistance.
