Replacement Channel Balance

Start a new Discussion

Quick Learner from Carlsbad, CA

May 29, 2023 8:49 pm

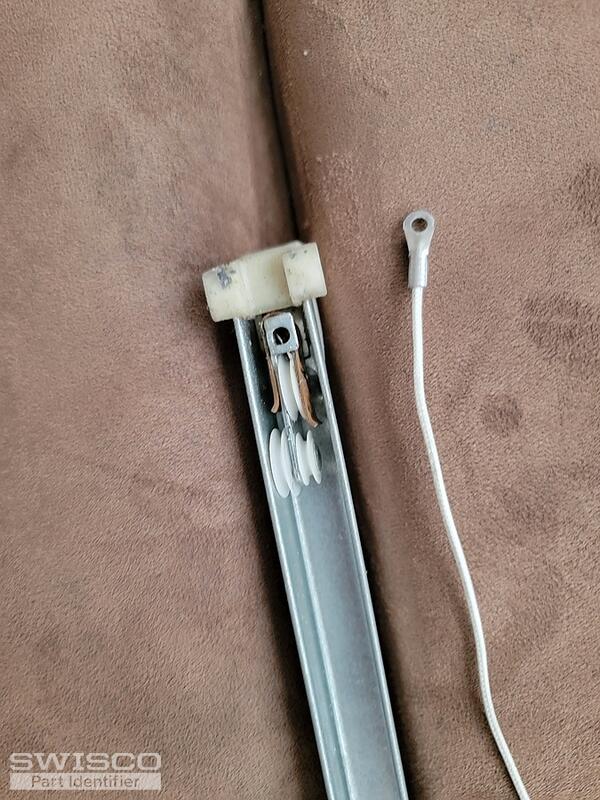

Please let me know which replacement balance would be best for my window. The current channel balance is 27" long.

4 user uploaded images

4 Replies

Emily from SWISCO

Jun 1, 2023 10:18 am

Hello there!

I'm afraid I can't ID your balance from these photos. Can you show us a photo of the top fitting? I will be able to identify it from there.

Quick Learner from Carlsbad, CA

Jun 3, 2023 3:52 pm

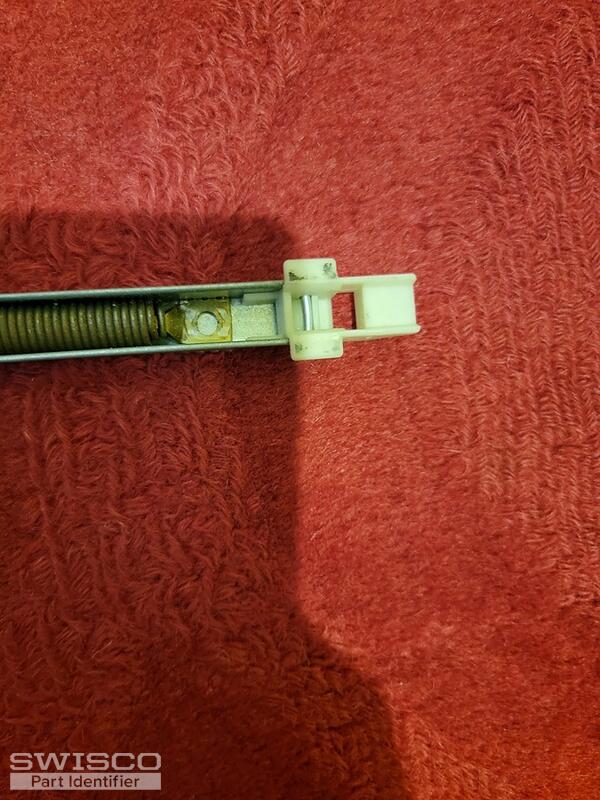

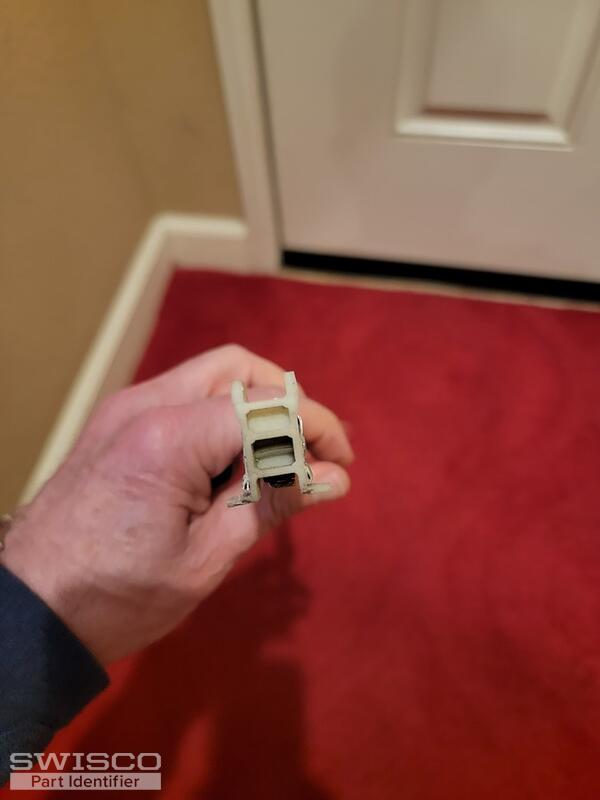

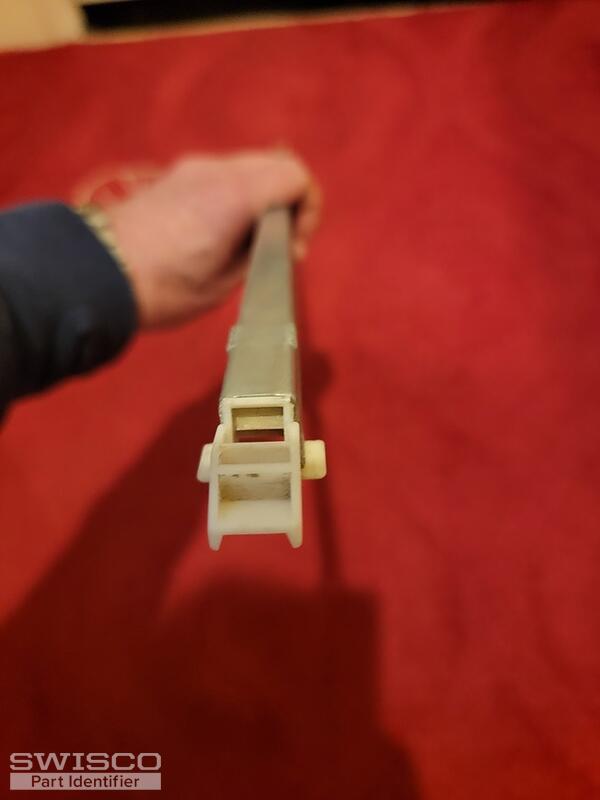

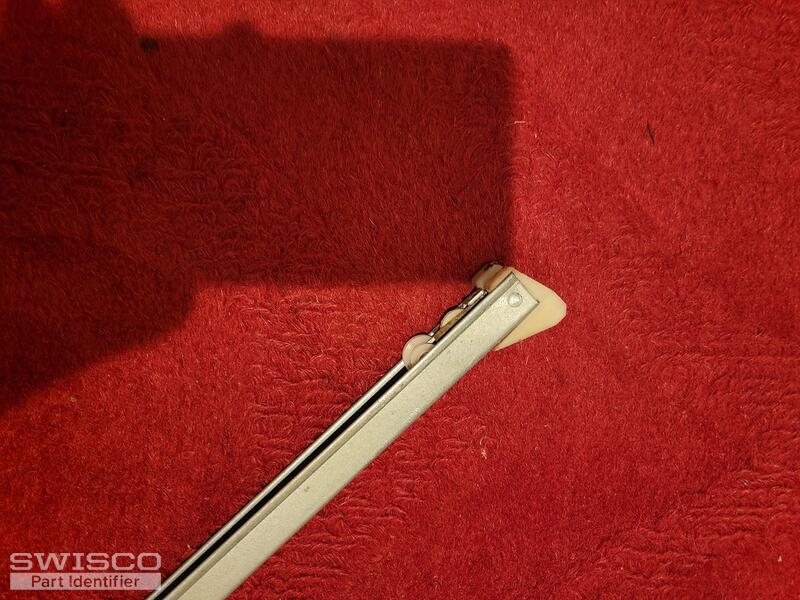

Here you go-

5 user uploaded images

Emily from SWISCO

Jun 5, 2023 8:35 am

Thank you! I recommend the S380-27 or S385-27 depending on the depth of the bottom fitting. Measure as shown below to see which one matches up best. You will also need the 2640 spring strength option based on your 26 4 stamp.

Comparison of the S378, S380 and S385 balance shoes.
