Replacement Channel Balance

Handy Person from Canyon Lake Texas

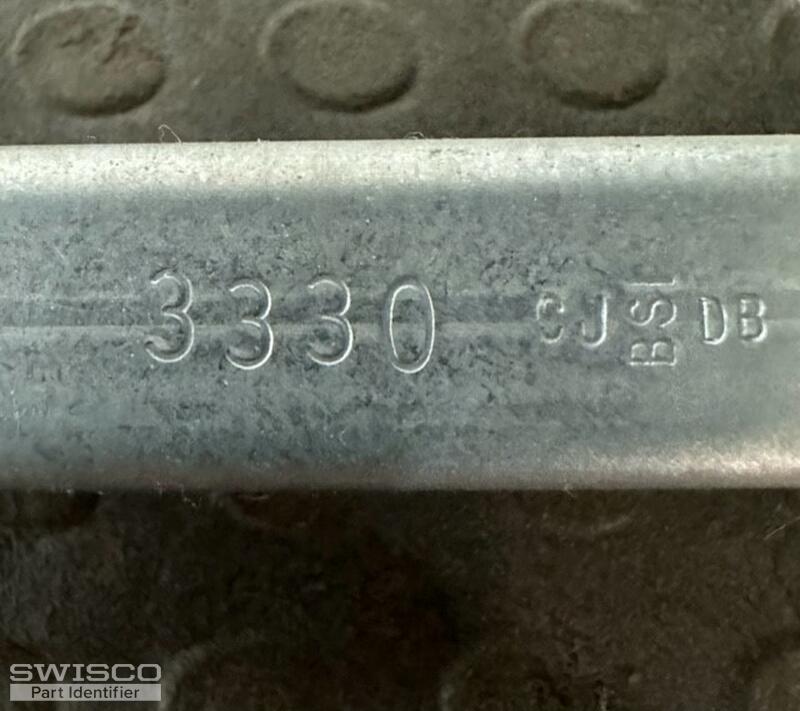

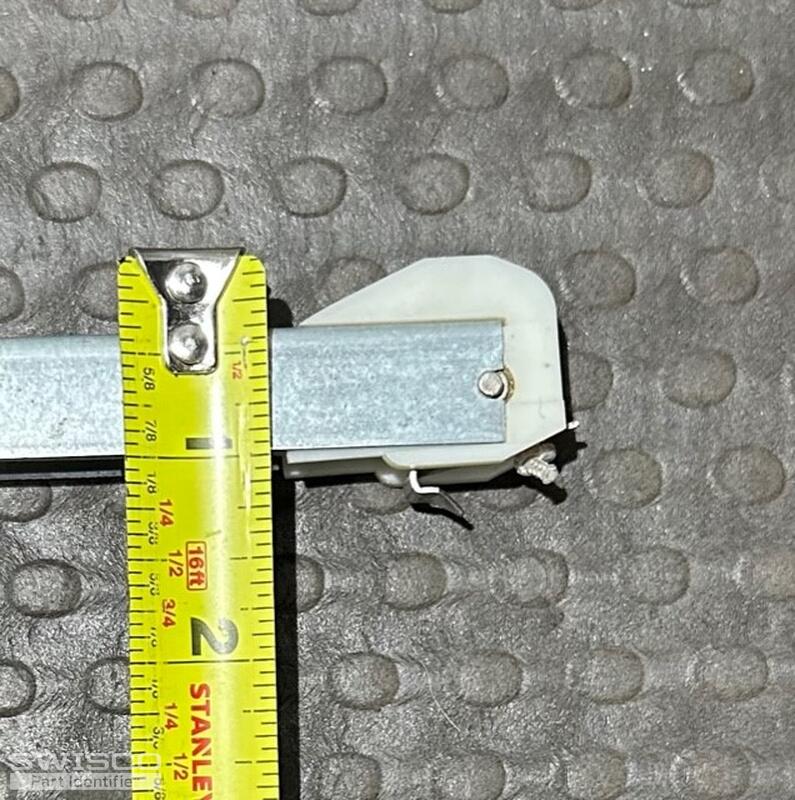

I need assistance identifying the correct channel balance parts. See attached photos. The channel balance is 3330, 34"long, 5/8"deep, 9/16"wide and 18 to 23 lbs. Top attachment has wings, but the bottom shoe attachment does not.

Russell

5 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Russell,

Thanks for reaching out! I am confident we can supply you with the replacement balances you need. The balances you have are an Extended-Travel Channel Balance, which will need to be a custom made assembly. With that said, to confirm pricing and availability, I'll need to see a clearer photo of the bottom hook to confirm the correct replacement.

Please also double check the length of the metal channel. The replacement we will be supplying you with has an exact length of 33-7/8".

I'll also need to know the exact number of balances you intend to purchase. There is an order minimum of (2) balances.

Please let me know if you have any questions in the meantime.

Handy Person from Canyon Lake Texas

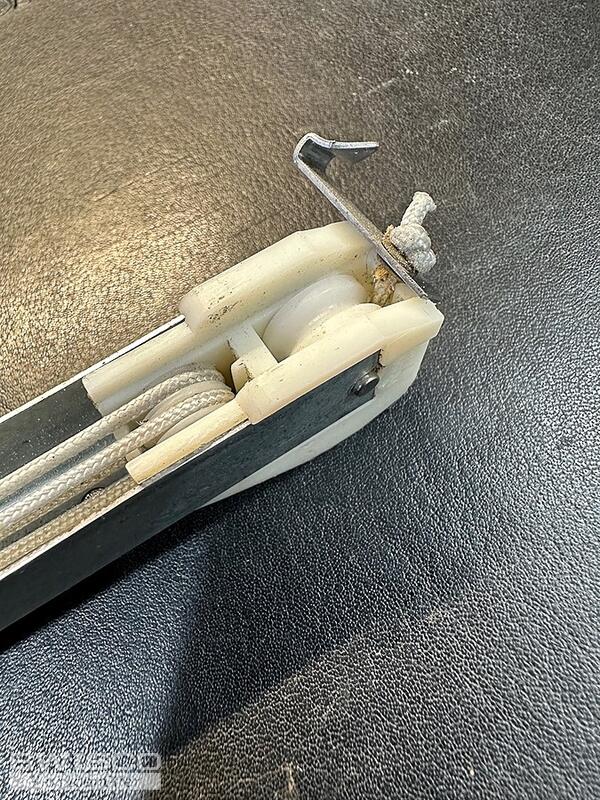

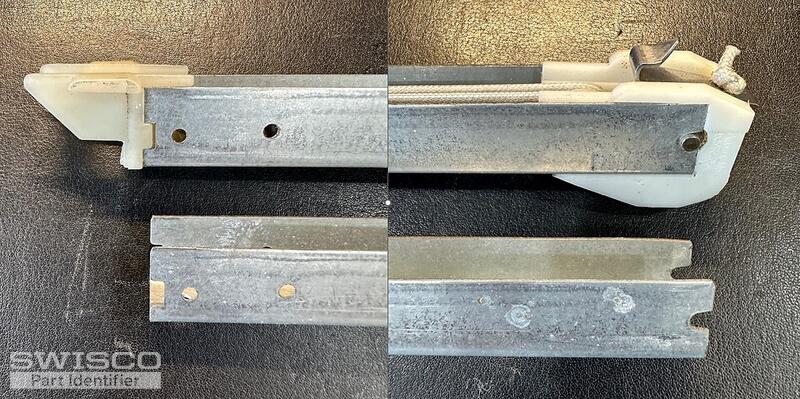

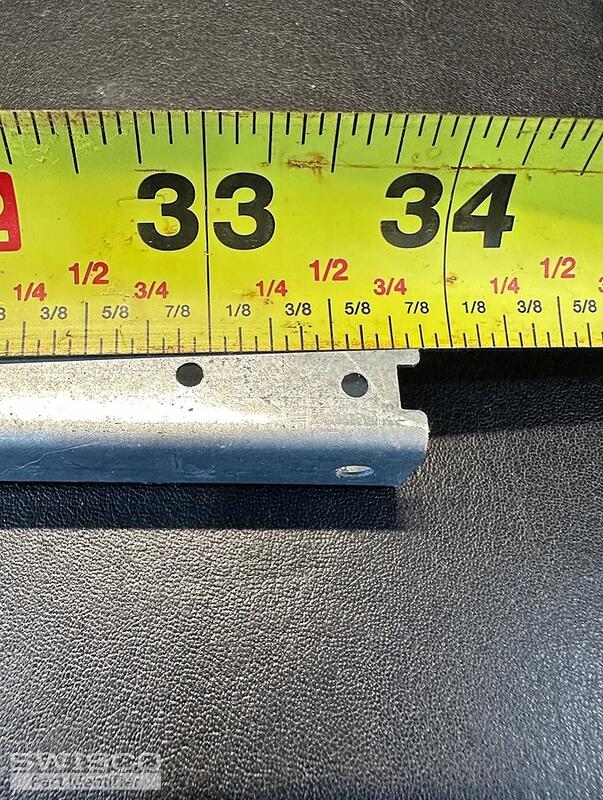

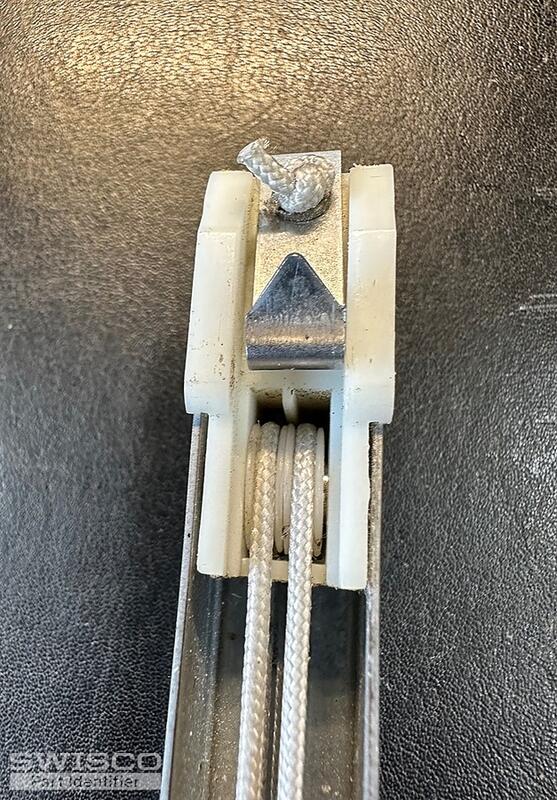

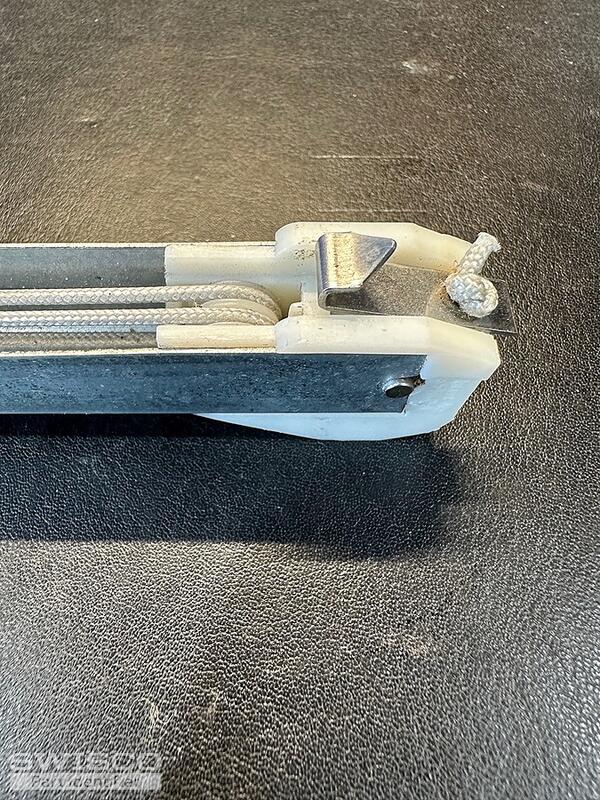

Thanks for responding so quickly to my post. Yes, the exact length of the metal channel is 33-7/8". I am replacing the balances in 6 windows so my order will be for (12) 33-7/8" long balances. See attached photos of the bottom hook.
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the photos and for confirming the measurements. I've forwarded a link with a quote for the (12) requested balances. You'll be able to use this link to review the quote and place the order from your online cart.

Please fell free to reach out if you have any questions.

Handy Person from Canyon Lake Texas
Thanks a bunch Jasmine. You were extremely helpful and made this a very easy process. I received your quote and will place my order.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

I'm happy to help and I'm glad to hear that I could make this a smooth process for you.

Please do not hesitate to reach out with any other hardware repair projects you may have.

Have a great day!
