Quick Learner from Orange County, CA

Jul 13, 2025 1:26 pm

Please help with the channel balance selection.

Thank you,

Louie

5 user uploaded images

4 Replies

Bob from SWISCO

Jul 13, 2025 1:43 pm

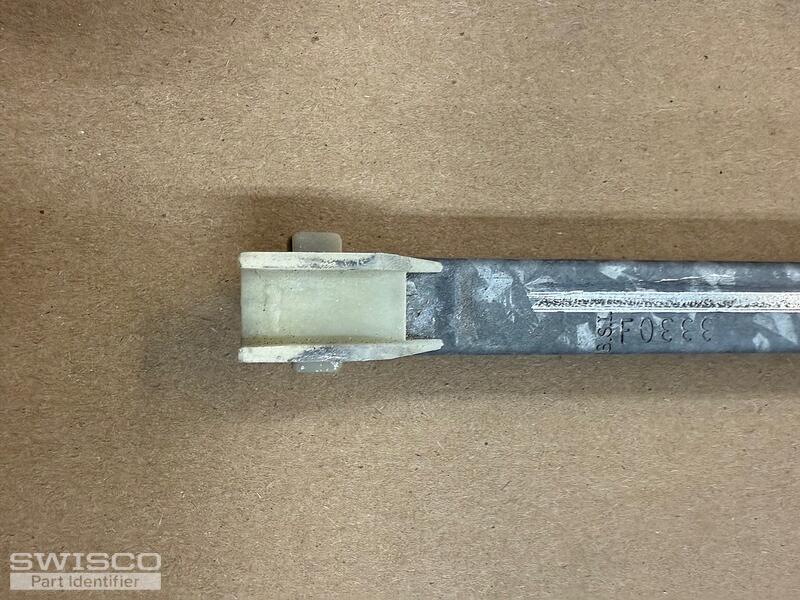

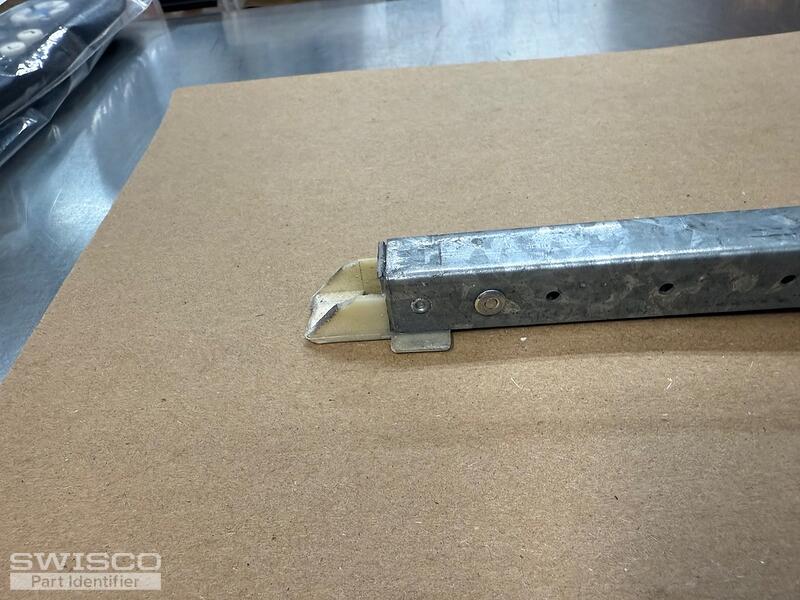

Hello there. This looks like it could be either a S380-34 or S385-34. The only difference between these two channel balances is the depth of the bottom nylon shoe. See below. Measure your old balance's shoe to see what matches best. For a stamp option choose 3330.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Orange County, CA

Jul 13, 2025 2:51 pm

Hi Bob,

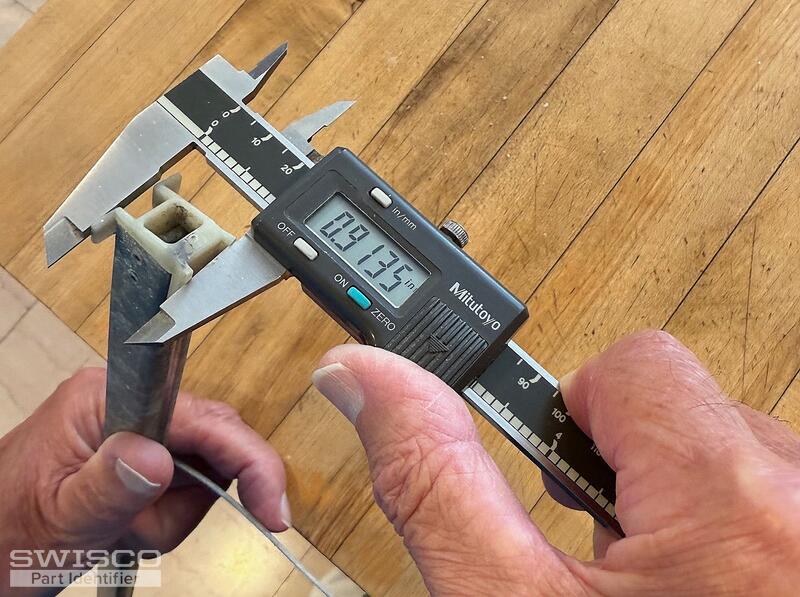

Thank you for the quick response. The dimension of my bottom clip is .915. It is not 7/8" or 1". The length of the metal part is 34".

Best regards,

Louie

1 user uploaded image

Bob from SWISCO

Jul 13, 2025 5:42 pm

Hey Louie, if the shoe depth is greater 7/8" but less than 1", I would go with the Series 380. These shoes can wear down a bit from age. Most likely it was originally 1" deep. Let me know if you have further questions.
