Replacement Channel Balance Spring Mechanism

A home owner from College Station says:

March 18, 2023

I am needing to know what I have in the pictures so I can purchase new ones. Please see added photos and let me know my options/part #s etc.

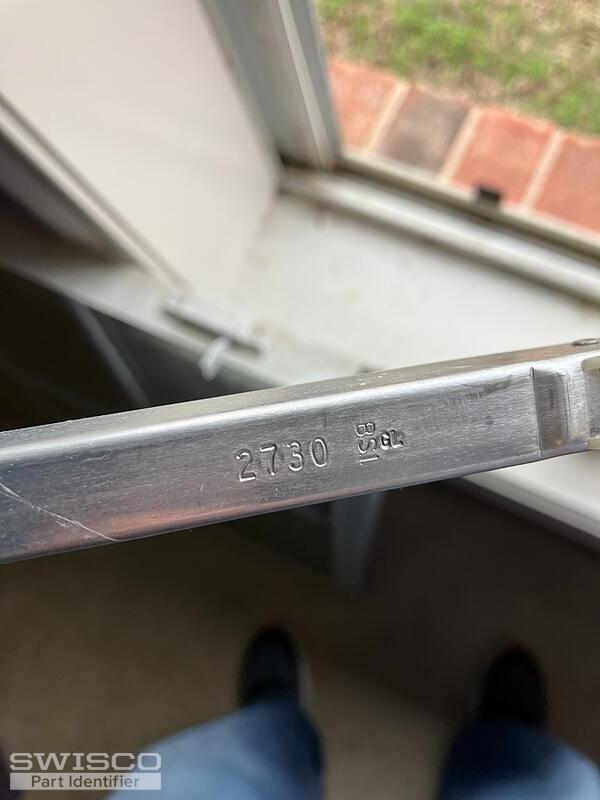

Note there are two different parts for two different windows but they are made the same way. There is only one pic of the one with code 2730 and it is a BSI (Window Bedroom).

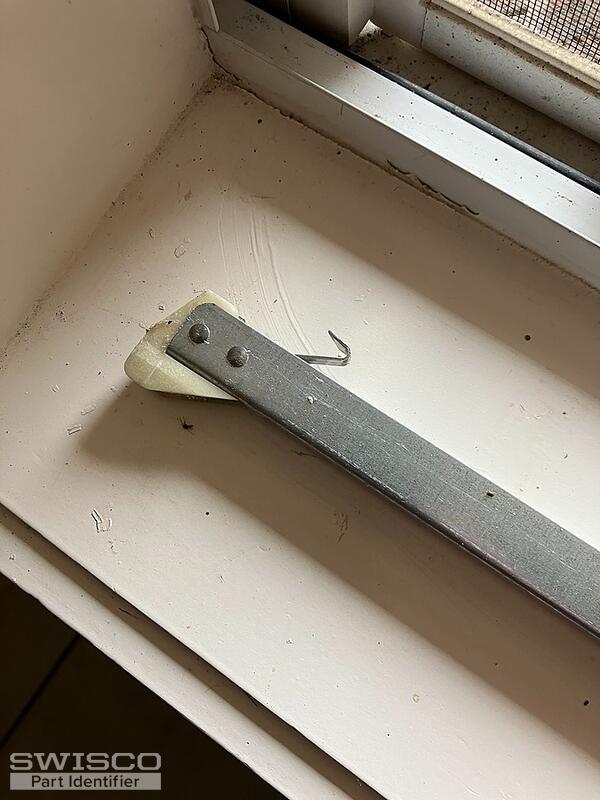

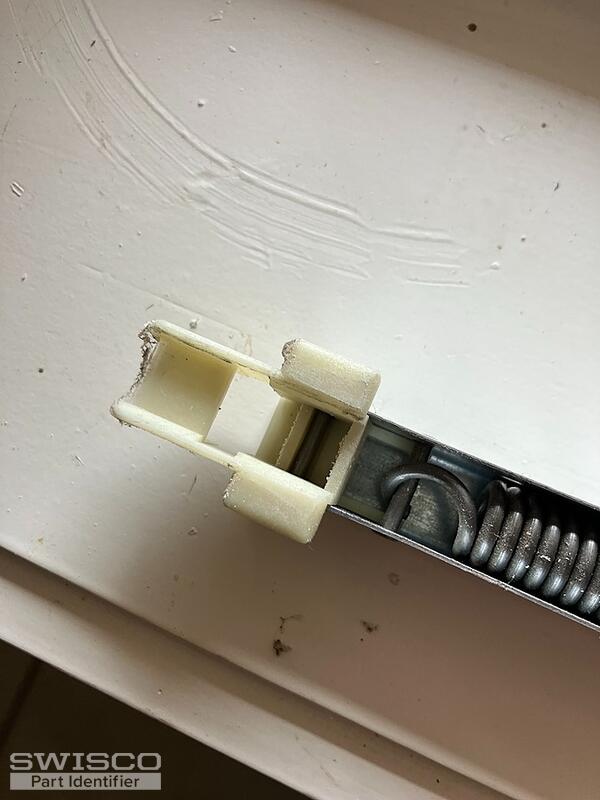

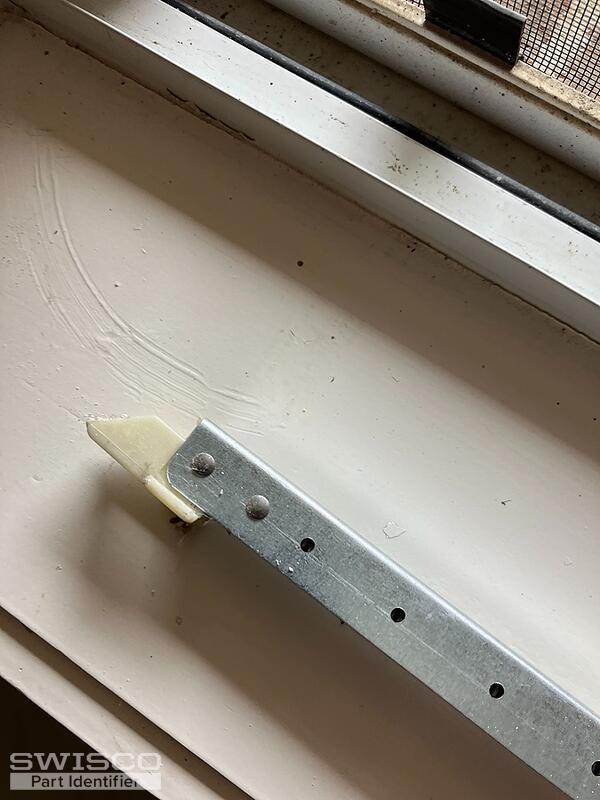

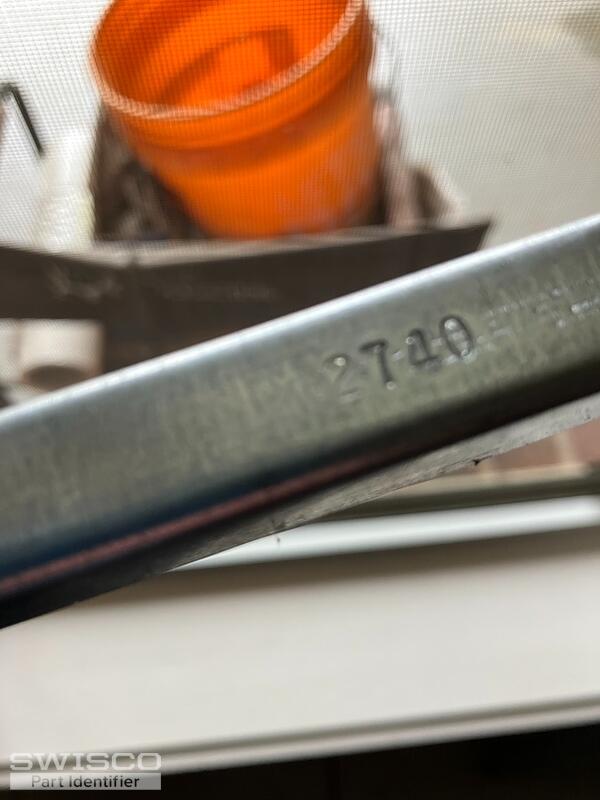

All of the other pics are of the 2740 (Window Breadfast).

Thank you for your help

Thumbnail of the uploaded file named Window Bedroom Pic 1.jpg

Thumbnail of the uploaded file named Window Breakfast Pic 1.jpg

Thumbnail of the uploaded file named Window Breakfast Pic 2.jpg

Thumbnail of the uploaded file named Window Breakfast Pic 3.jpg

Thumbnail of the uploaded file named Window Breakfast Pic 4.jpg

Tom from SWISCO responded:

March 20, 2023

Thanks for reaching out to us. based on these photos, my top recommendation would be the S395-28. This has a 19-005 top and 15-001 bottom nylon fitting, so as long as those match up then you should be good to go. Look it over and see what you think.

28" Series 395 Channel Balance

S395-28

$10.45
