Replacement Channel Balances

A contractor from Largo, Florida says:
August 11, 2021

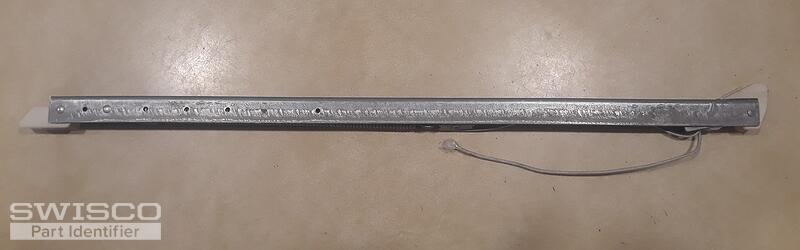

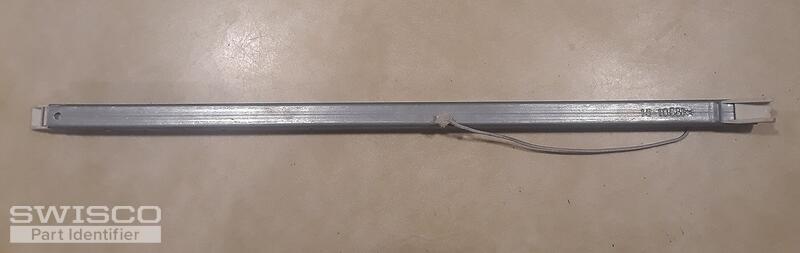

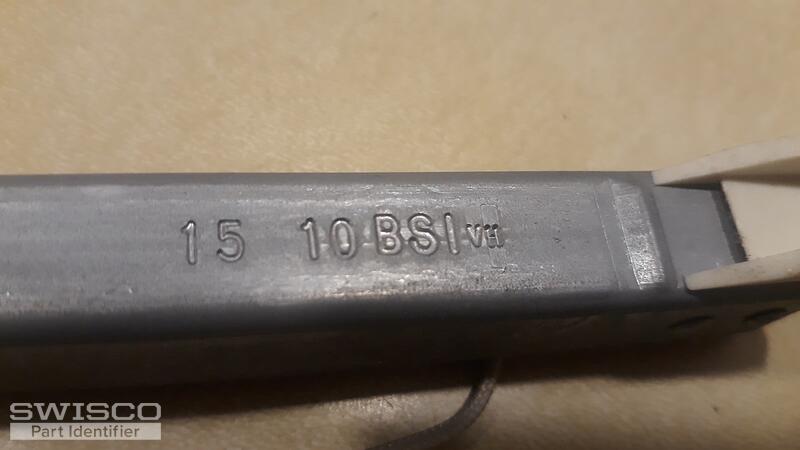

Hello. I am trying to locate replacement channel balances for a 52"×37" single hung vinyl window. The metal frame part of the balance is 16" long. It has a stamp on it that reads 15 10BSI VH

Thank you for your assistance

Shilo

Thumbnail of the uploaded file named 20210811_232128.jpg
Thumbnail of the uploaded file named 20210811_232154.jpg
Thumbnail of the uploaded file named 20210811_232225.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 17, 2021

Hello,

It looks like you have either our S351-16, with a 15-002 bottom attachment, or S390-16, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 1510 spring strength option for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
16" Series 351 Channel Balance
16" Series 351 Channel Balance
S351-16
$9.34
16" Series 390 Channel Balance
16" Series 390 Channel Balance
S390-16
$9.34
