Replacement Channel Balances

Quick Learner

Apr 26, 2023 1:35 pm

Have been discussing replacement channel balances with customer service. This is a 27" balance with a 2690 stamp on it. Bottom shoe measurement is 7/8", so customer service stated this will need to be custom. I am looking for (4) balances.
We have identified the top sash guide as 18-161.

3 user uploaded images

4 Replies

Tom from SWISCO

Apr 26, 2023 3:50 pm

We can supply this balance as a custom order, yes. It would be similar to our S380-27 but with a 7/8" deep 15-029 shoe at the bottom, rather than the 15-005.

Before we go any further, I will need you to weigh your sash on a scale and tell me the precise weight, down to the ounce. Your stamp is unfortunately a little outdated and I can't use that to determine the calibration.

Once I know that, I can email you a purchase link and price quote that will let you add 4 to your cart.

Quick Learner

Apr 28, 2023 11:22 am

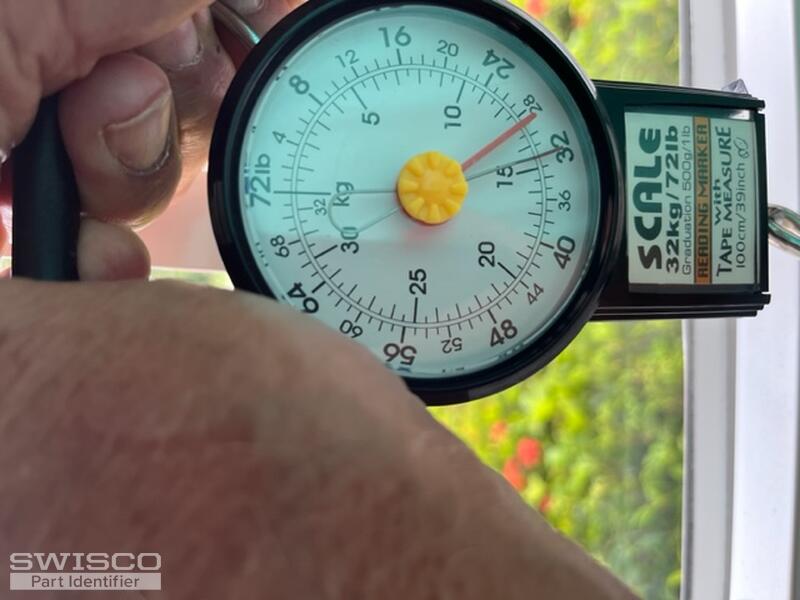

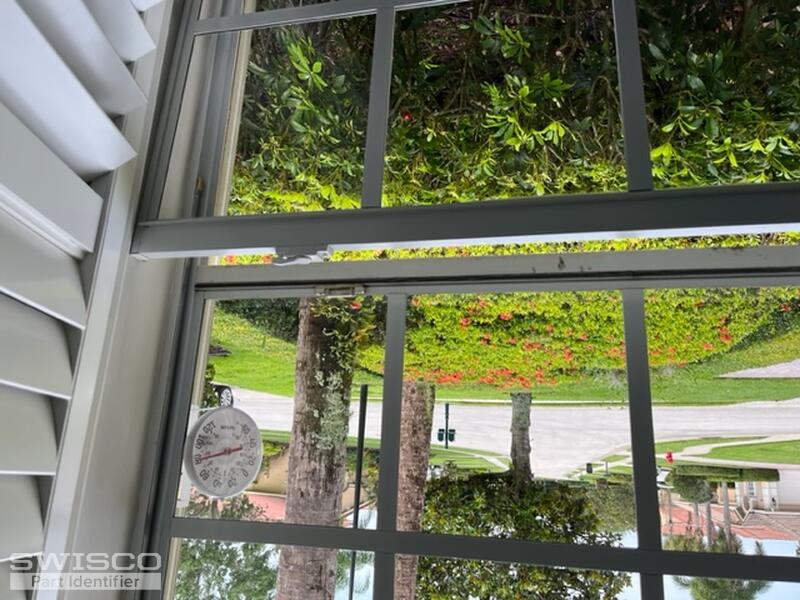

Below are pics showing the weight of the window as 29 pounds using a luggage scale. I included the pic showing that I did remove the window from the window frame but due to the louver shutter frame I left it inside the casing.

I hope this is what you need. I do have the spring from the broken balance if the measurements would help.

Thank you for your prompt response.

Frank

2 user uploaded images

Tom from SWISCO

Apr 28, 2023 12:06 pm

Thanks, Frank. So for a sash weight of 29 pounds, I would go with the 2650 option. Two balances with this option can support 26 through 30 pounds. Just note that custom made balances are non-refundable, so you may want to triple check that weight to be 100% sure its accurate. If your sash weight is below or above that range, the 2650 stamp option will not function properly.

With that being said, I'll email you a purchase link and price quote now that will let you add 4 balances to your cart. These will be 27" long with a 19-005 top, 15-029 bottom, and a 2650 stamp.

Please let me know if you had any questions or wanted to make any changes.
