Replacement Coil Balance Parts for Single Hung Windows

A handy person from 62035 says:
October 1, 2020

Sorry but I couldn't find any markings at all.

We have 2 wide regular windows and 2 slim windows in which the coil springs have all broken so none of these windows will stay open anymore. I need to fix all 4 windows but with so many parts on your site to choose from I really don't know what I need at all. If you can help identifying the appropriate parts I'd like to buy them for asap delivery. We have been so used to just propping windows open that we never thought about these failing the house inspection (we are moving) and they must be fixed prior to the closing. Thank you. We do have a VERY handy general contractor on call to install them for us.

Patrick

Thumbnail of the uploaded file named Windows7.jpg
Thumbnail of the uploaded file named Windows2.jpg
Thumbnail of the uploaded file named Windows3.jpg

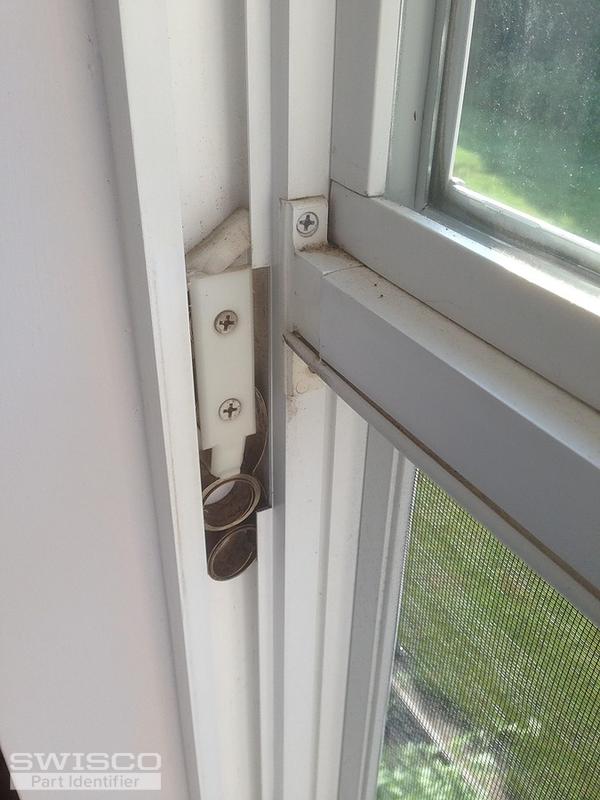

Thumbnail of the uploaded file named Windows5.jpg

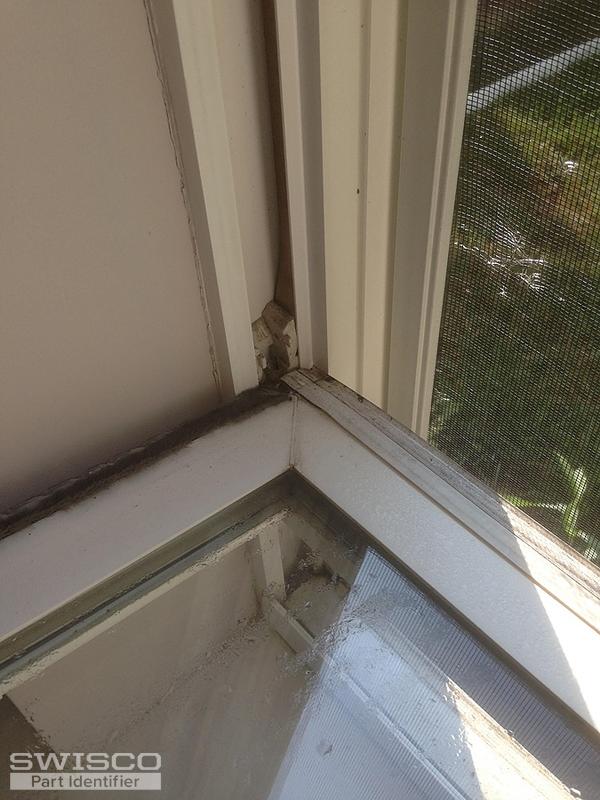

Thumbnail of the uploaded file named Windows6.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 6, 2020

Sure, we can definitely help. See our 15-180 pivot shoe, Series 190 coil spring, 15-182 bushing, and then either the 15-181 double or 15-186 single support clip. It looks like you use both types, presumably on different windows.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Double Support Detent Clip
Double Support Detent Clip
15-181
$6.17
Balance Bushing
Balance Bushing
15-182
$1.80
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
