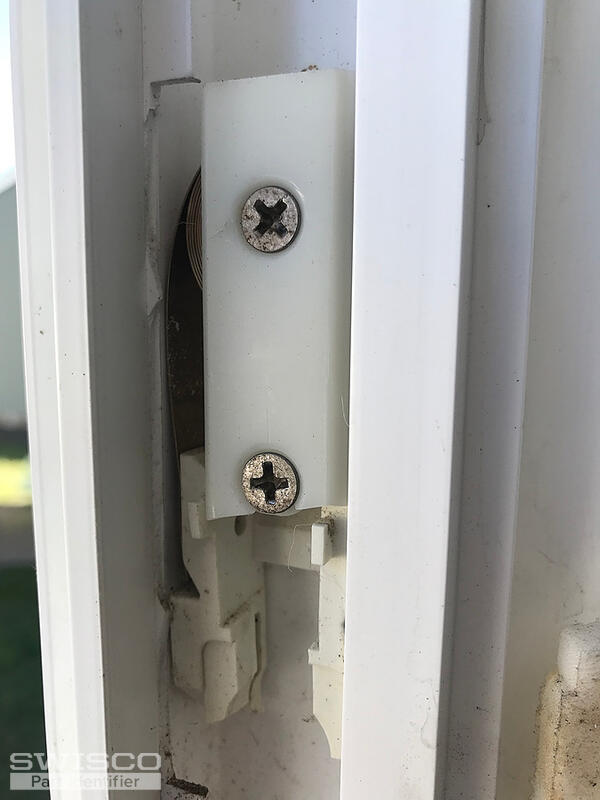

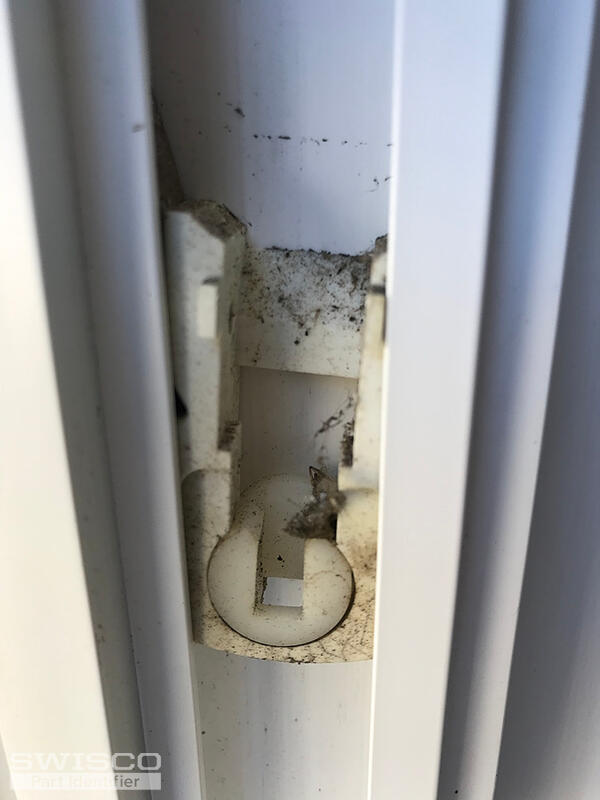

I did not see any markings on the coil balance so I provided pictures of the widow information label.
These are single coil balances.
The part with the coil measures 3" long by 3/4" wide by 5/8" deep. These are flush with the channel surface.
The part with the pivot shoe measures 2" long by 1" wide by 1/2" deep.
Thank you for your assistance.
r/
Dave
Replacement Coil Balances
Home Owner from Villas, New Jersey
Nov 2, 2023 1:36 pm
5 user uploaded images
2 Replies
Lauren from SWISCO
Nov 3, 2023 10:31 am
Hi Dave, thank you for posting,
Your coil balance assembly resembles the 15-180 pivot shoe that is compatible with the Series 190 coil springs. Please review the overall style and dimensions to confirm a good fit! If you need assistance with choosing the correct weighted springs, please provide the weight of the sash to move forward. Thank you!
Alternate image for 15-180
