Replacement Crank Awning Type Window

Home Owner from CT

Aug 18, 2014 8:50 pm

Looking to replace the cranks on my awning windows. They no longer turn the window in. The handle comes right out with the crank screw attached.

32R on th erotating part of the arm to the window
Pat. No.198202 U.S Inside Casing
2 R.H. RD 1963 CAN Inside Casing
0 bottom/side aginst windoe between the two screw holes

I see some that look close but not sure how to tell

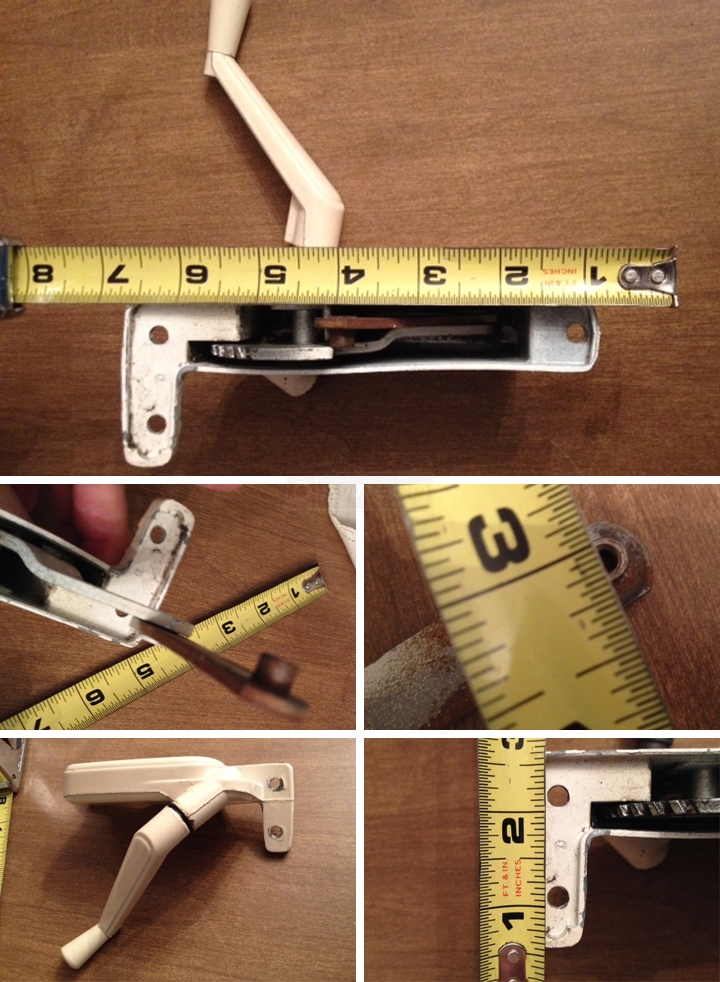

User submitted photos of a window operator.

4 Replies

Dave Sr. from SWISCO

Aug 20, 2014 8:56 am

This looks similar to our 39-025. Check it out and let me know how well they match up.

Home Owner from Hartford

Aug 20, 2014 6:48 pm

Dave, I did check out the 39-025,they do look similiar however the little arm that swings out to the window (screw to connect shows 2 1/4 center point to center point. The one I have is 2 1/2 center point to center point

Dave Sr. from SWISCO

Aug 21, 2014 12:43 pm

Ah, I see what you mean. I think there should be enough "travel" in the gearing of the operator to make up for the difference, though. You can see what I'm talking about in the video.
