Replacement Door Handle

Question

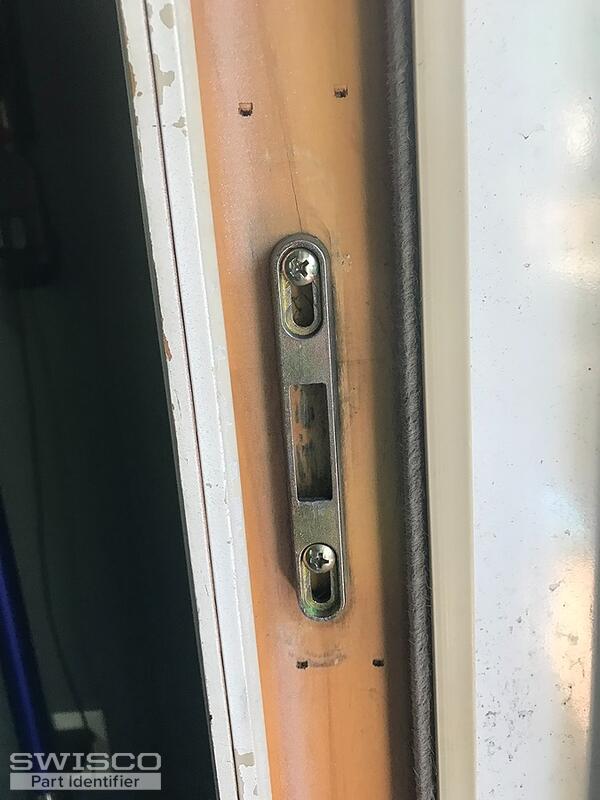

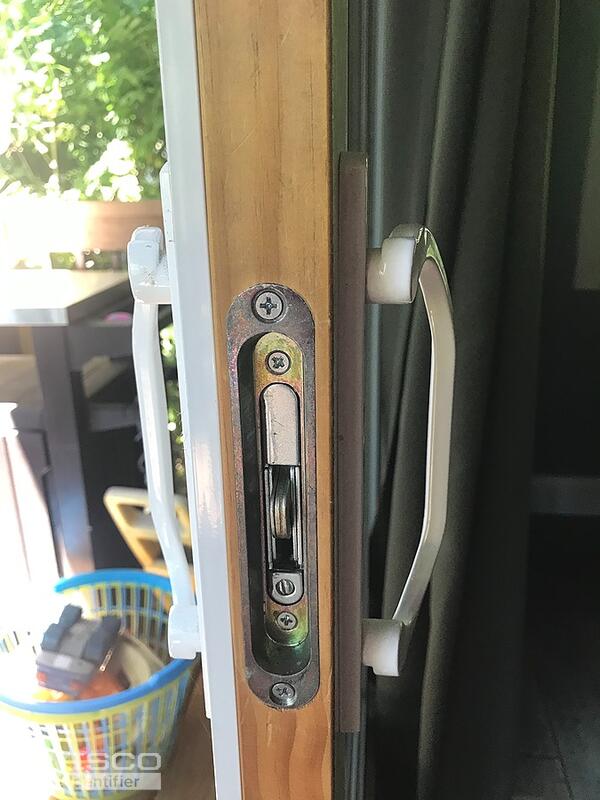

I'm in need of a new door handle for our sliding patio door, as the lock lever broke off. Which handle do I need? Only information on the door says, "Series: Design/Professional Clad Swinging Door. Product Line # ATR-K-001"

Bob · Accepted Answer

The thumb lever is our 82-107. However, if you wish to replace the entire handle set, see our 82-089. Note that this kind of damage to a thumb lever is indicative of a mortise lock that might be broken as well. To find out, remove the old handle set and try manually flipping the mortise lock with a slotted screwdriver. If it doesn't budge, you do need a new mortise lock as well. See if the dimensions of the 82-229 match up.
