Replacement Glazing For Aluminum Windows

A handy person from Tampa, Florida. says:
February 28, 2019

Hi,

I am trying to find replacement glazing for our 20 year old Aluminum windows. The current plastic / vinyl glazing has become brittle and is starting to deteriorate on some of our windows. All windows are single glazed.

Would you have something similar that we could use. The dimensions are as follows. Front face is 1/4" high and the top is approx 5/16" in depth.

If you need additional information or pictures please let me know.

Thank you,

David

Thumbnail of the uploaded file named IMG_7130.JPG
Thumbnail of the uploaded file named IMG_7131.JPG
Thumbnail of the uploaded file named IMG_7132.JPG
Profile picture of Bob
Bob from SWISCO responded:
February 28, 2019

Thanks for posting. Would you be able to remove a sample and show us your glazing's 'end profile', and also confirm the dimensions? That would help us identify any possible replacement for you. Many thanks.
A handy person from Tampa, Florida. says:
March 25, 2019

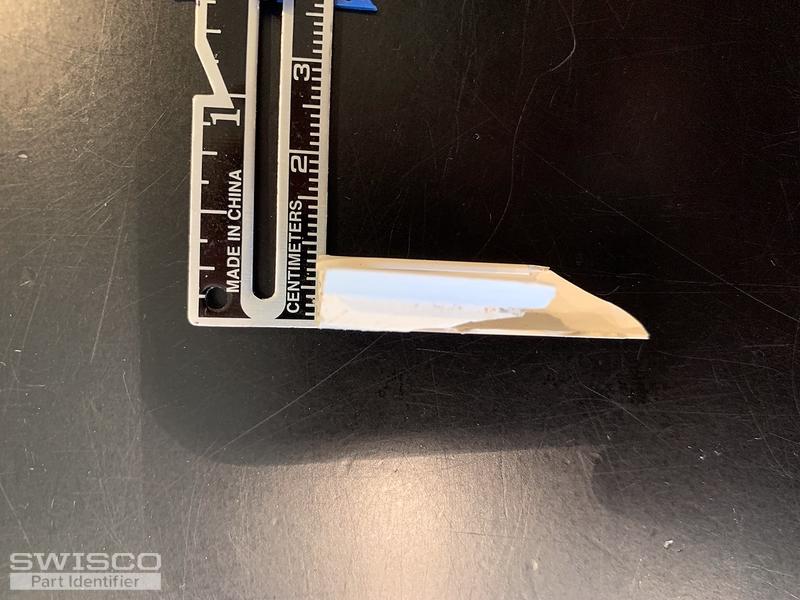

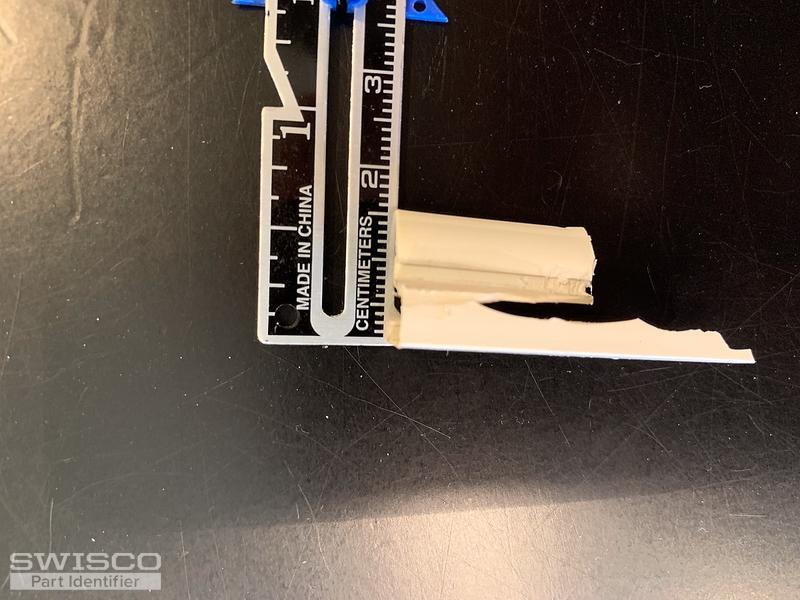

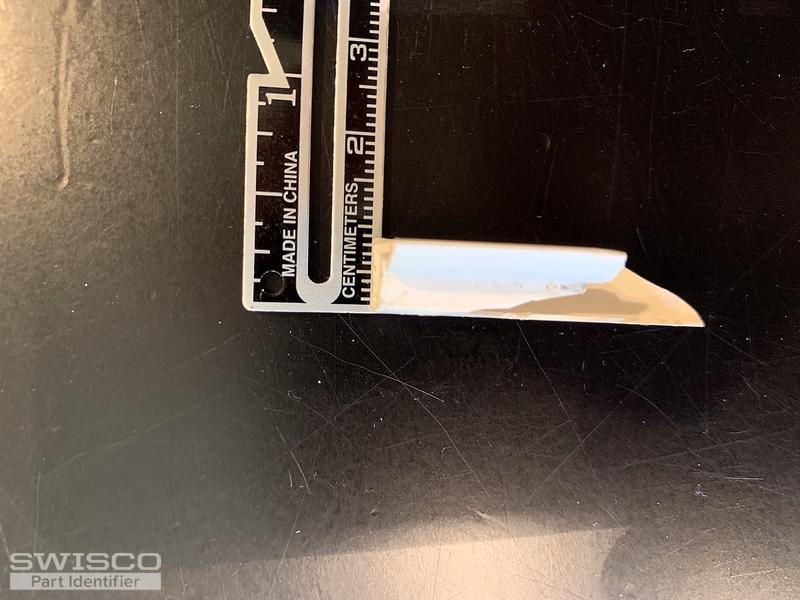

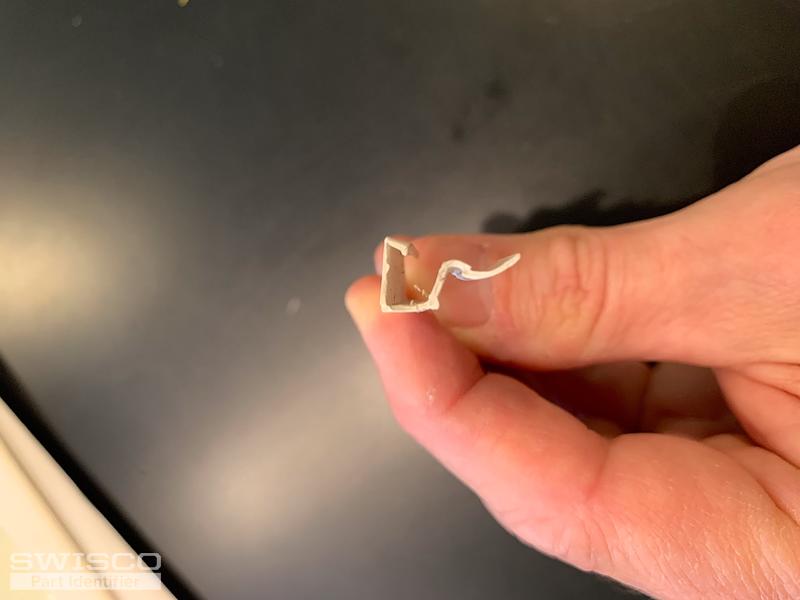

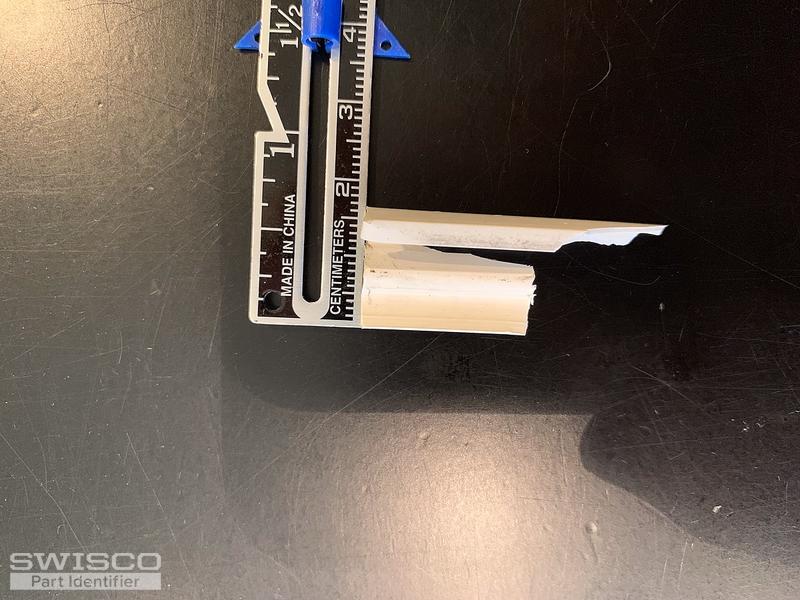

Attached are photos of glazing end profile and measurements. The glazing if very brittle so I did my best to get a piece that showed the profile.

Please let me know if you need any additional information.

Thanks,
David
Thumbnail of the uploaded file named IMG_7212.jpg
Thumbnail of the uploaded file named IMG_7213.jpg
Thumbnail of the uploaded file named IMG_7214.jpg
Thumbnail of the uploaded file named IMG_7215.jpg
Thumbnail of the uploaded file named IMG_7217.jpg
A handy person from Tampa, Florida. says:
March 25, 2019
Hi Bob,

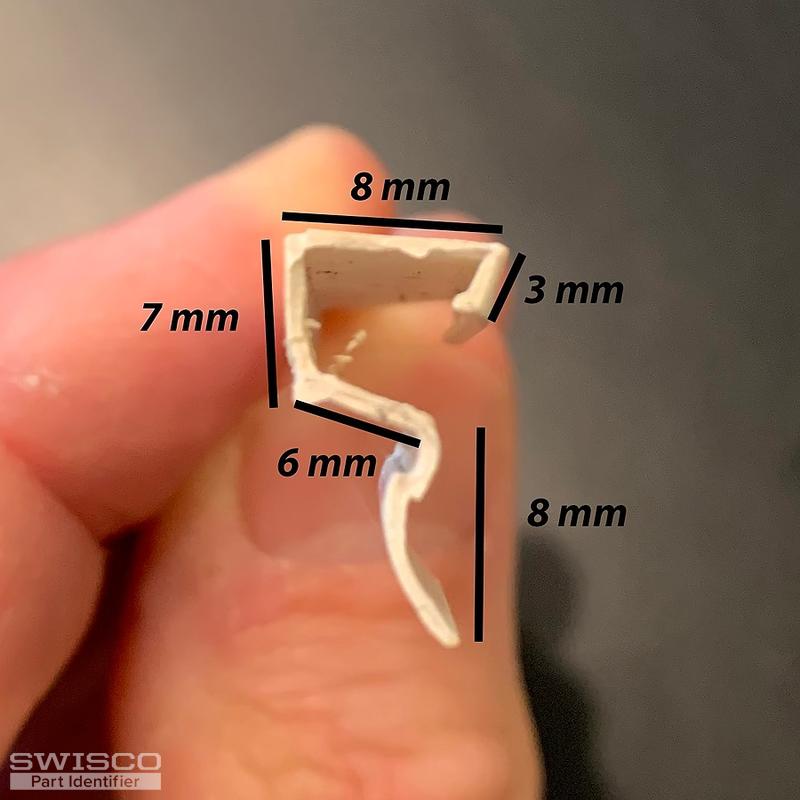

Attached is picture with measurements of the glazing profile. I hope this helps.

Thanks,
David
Thumbnail of the uploaded file named glazing_profile_measurements.jpg
Profile picture of Paul
Paul from SWISCO responded:
March 25, 2019

We were unable to locate your exact vinyl snap-in, but we came across one that might work for your window. Look at the 55-172. You would place the extended lip under the glass and snap in the opposite side, shown as 3/8", and hook the lip under the metal frame. Please review.
3' Mobile Home Snap-in
3' Mobile Home Snap-in
55-172
$4.04
6' Mobile Home Snap-in
6' Mobile Home Snap-in
55-172-6
$6.92
