Replacement Hinge

Quick Learner

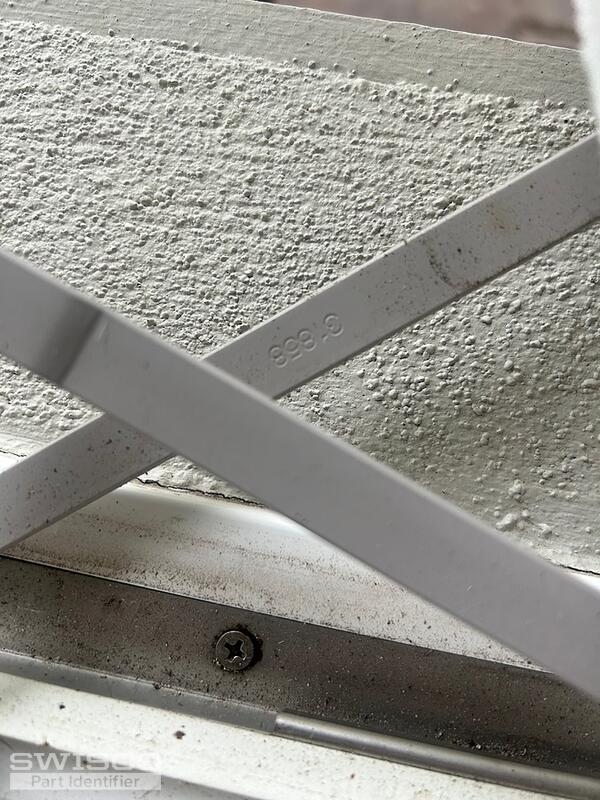

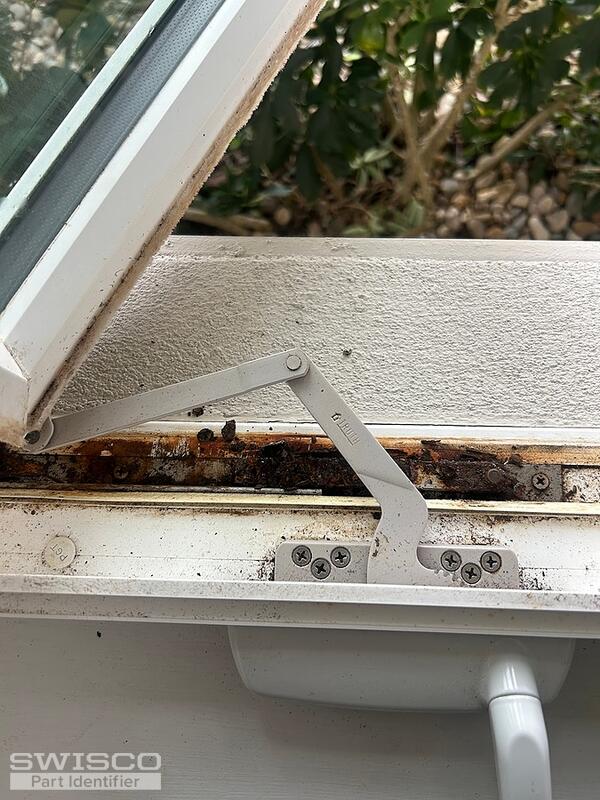

The non rusty hinge is on the right side window the left side has missing parts I would like to replace them both the right side has the number 31858 stamped in it and the window is about 15 years old model ca-440
The base of the hinge is 13 inches. The bar that goes on the window is 7 3/8 inches and the measurements for the holes are in order half inch one and 78 inch 4 3/4 inches and 6 1/8 inch.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. We don't carry a 13" hinge like this, but I think the 14" stainless steel 36-004-14 hinge set might work so long as there's enough room on the sill for the slightly longer base. See the dimensions below and let me know what you think.

Dimensions for 36-004-14
Dimensions for 36-004-14
