Replacement Hinge request

Question

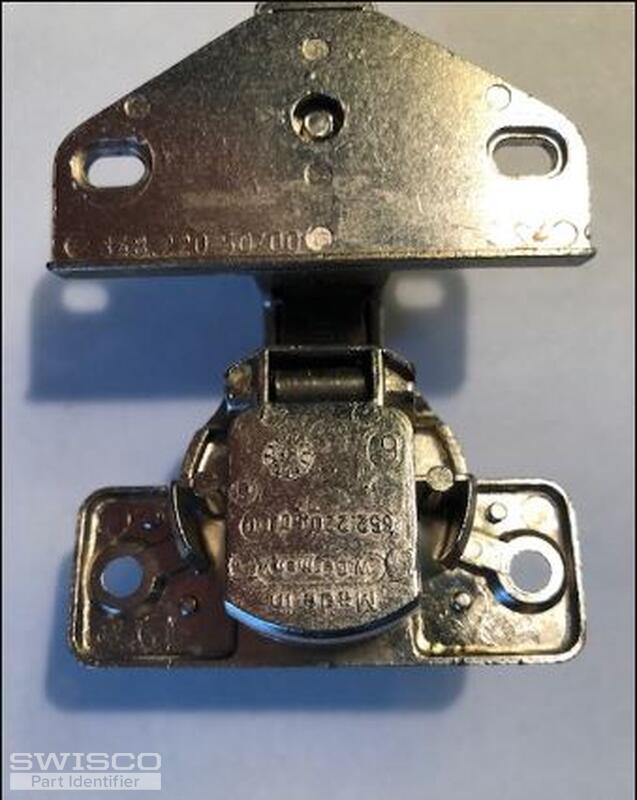

I am looking for a replacement hinge or just one that will work on the cabinet doors. The overlay is 3/8". Length front to back open all the way as in the first photo below is 3 1/8". The distance between holes is 2" on both the face-frame side, and the door side.

Markings on the hinge are 348.229.50/00 on the face frame side, and Made in W Germany, 652.220.50.00, e, and a 6 on the door side of the hinge.

Help!

Thanks,

Emily · Accepted Answer

Hi there!

Thank you for reaching out to us. We don't sell this exact hinge, unfortunately. The 32-349 and 32-345 are the closest matches we sell though I can't promise they will work for you. Take a look and see what you think.
