Home Owner from Camano Island WA

Jan 2, 2023 7:06 pm

I am experiencing trouble trying to find a replacement for the attached "latch & catch"

Any help would be apprecaited.

Thanks, Jon

2 user uploaded images

7 Replies

Emily from SWISCO

Jan 4, 2023 4:11 pm

Hi, Jon.

We don't sell this exact lock so we'll need more information to see if we can track down a match. Can you write out the distance between the two installation holes, measured from center to center? And would it be possible for us to see a photo of the lock's sweep?

Home Owner from Camano Island WA

Jan 5, 2023 1:51 pm

The hole spacing is 2 1/4" center to center

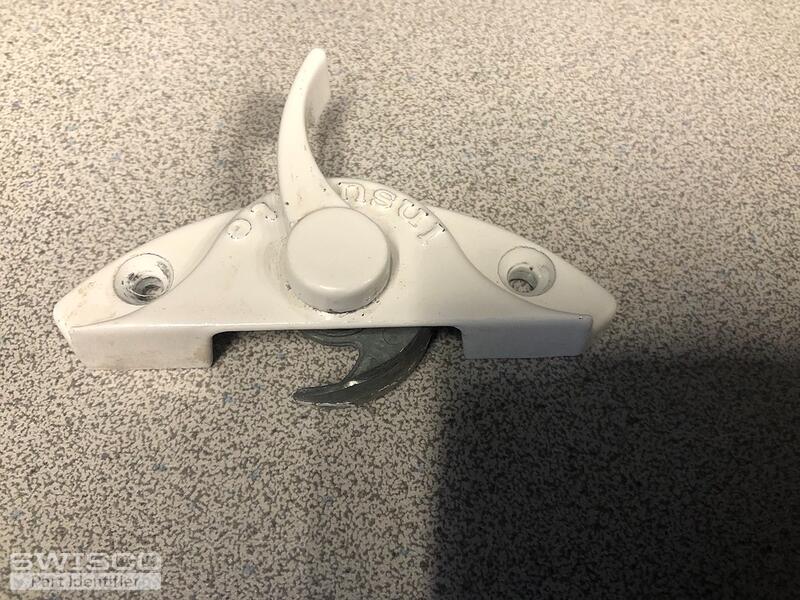

4 user uploaded images

Emily from SWISCO

Jan 6, 2023 8:24 am

Thanks for getting back to us. I think our 90-274 is a good place to start. This has an 11/16" backset so you'll need to compare this dimension with your old lock to see how they match up.

Dimensions for 90-274

Home Owner from Camano Island WA

Jan 6, 2023 11:27 am

The latch looks like it could work, I will check the backset. The catch shown is 90 degree out in regards to the screws.

Home Owner from Camano Island WA

Jan 20, 2023 4:23 pm

Hi,
I checked the backset, it's 7/16"

Tom from SWISCO

Jan 23, 2023 9:27 am

Thanks for verifying! In that case our 90-161 might be a better option. This has the same 2-1/16" spacing and 7/16" backset. Look it over and see what you think.

Detail of 90-161
