Replacement Locking mechanism and handles (interior and exterior) for sliding patio door

Home Owner from Georgetown, TX

The lock on one of our patio doors is no longer working and the exterior handle is broken. The door was installed during construction by Champion Windows of Houston. Unfortunately, they are no longer in business. Local Champion Windows in Austin, TX does not service new construction products. Referred to you by Atrium Windows. The door opens to the left inside the house and to the right outside.

The following information was found on the frame of the door:

  • Series 4000
  • AAMA/NWWDA 101/I.S. 2-97
  • SGD-R20-72x80
  • An additional sticker: Load Date 20081014 4000SD
  • Order # T64253
  • 71 1/2" x 80 1/4" SDCL TMP DSBLE 1-1 TK PS CCF WH

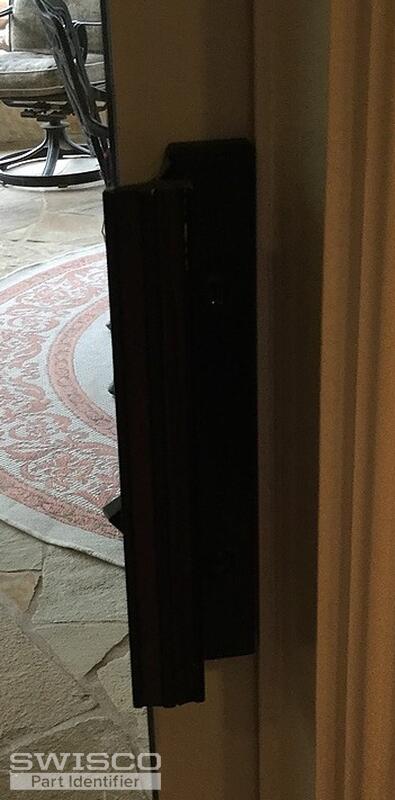

See attached photos.

Would you have replacement hardware for this door? Thank you for any assistance you can provide.

Gerie E.

4 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hey, Gerie. See our 82-033 handle set and 82-218 mortise lock. I think you'll find these match up well.

Home Owner from Georgetown, TX
Tom,
Thank you very much. The handles are exactly what I am looking for, and the mortise lock appears to be the same as well. I will order them.
Thanks again.
Gerie
Tom
Tom from SWISCO
SWISCO
Expert

Great! I'm glad they match up. Thank you for your business and please let us know how it works out.
