Replacement Lower Track

Question

Hi,

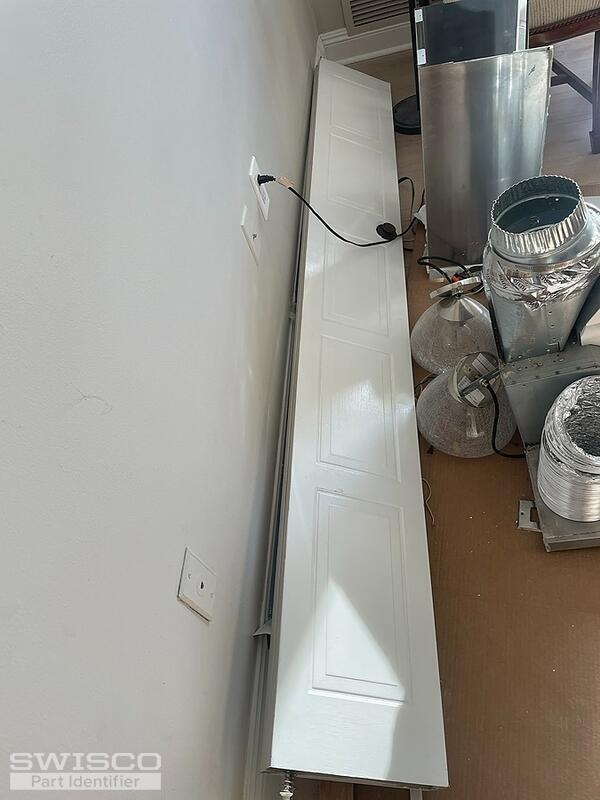

The following photos are of an older bi-fold door missing the lower track for reinstallation, the photos include the manufacturer, the door itself and the bottom of the door. I have a few of these doors both 24" & 36" and I'm looking for the lower replacement track for all. I believe the 36" Low Profile Track Assembly, Product Code: 21-452 that I found on your site may be the correct one, but I would like assistance to be more certain before I order several. If there are further questions please call me.

Thank you,

Jocelyn

Paul · Accepted Answer

Hello,

Unfortunately, your Peachtree track is no longer available and the the 21-452 track is not made for this type of door. For your lower track, we suggest using the 21-401. This track doesn't come in 24" but it will be easy to cut down with a hack saw since it is aluminum. Just keep in mind that parts are not able to be returned once they are modified.

To use the 21-401 track, you'll need one 21-002 bottom pivot pin and two 21-162 bushings. For the bottom guide pin, you will need to use the 21-007 with two 21-149 bushings. Take a look and thanks for posting!
